We all know that there are two type VHDCI 26 pin connector, one is 0.80mm pitch VHDCI 26 pin connector, another is 1.0mm pitch VHDCI 26 pin connector. Most VHDCI 26 pin connector is suitable for Industry Camera and Telecom Industry.
About 0.80mm pitch VHDCI 26 pin connector, there are three types:

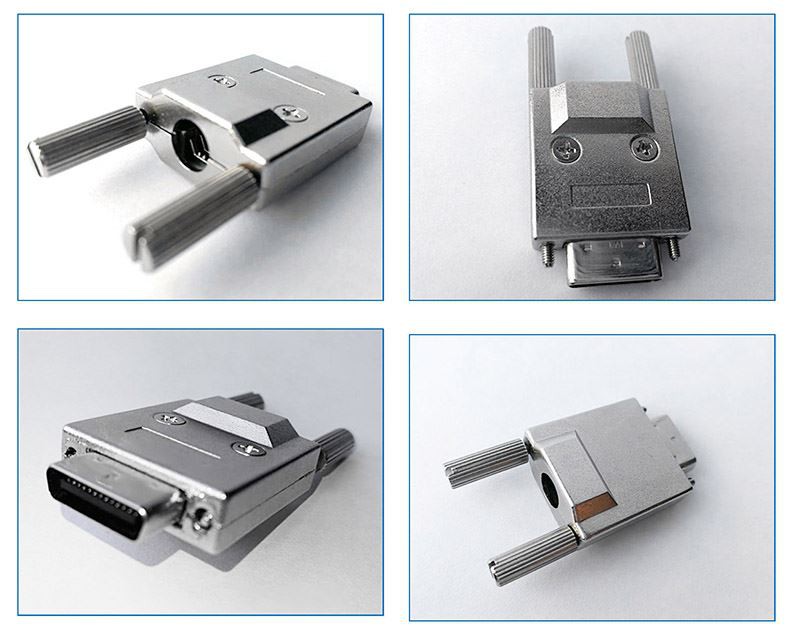

a.Solder type 0.80mm pitch VHDCI 26 pin male Connector for cable connection. This VHDCI 26 pin male cable connector is always matched with metal hood, and locked by Screw.
b.90 degree 0.80mm pitch VHDCI 26 pin female connector for PCB. It is also called PCB Mount Right Angle VHDCI 26 pin Female Connector. Commonly used on the camera board.

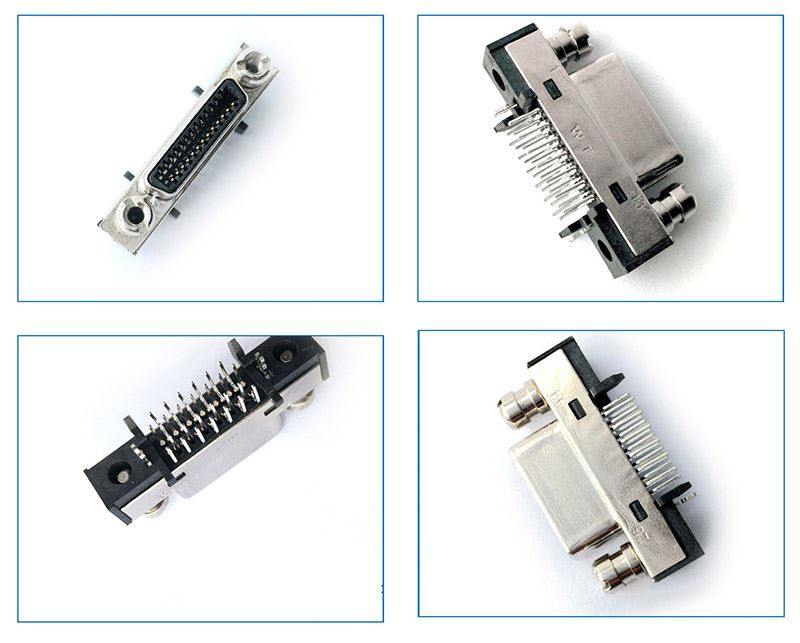

c.180 degree 0.80mm pitch VHDCI 26 pin female connector for PCB. Also named slot type 180 degree vertical VHDCI 26 pin female connector.
About 1.00mm pitch VHDCI 26 pin connector, also named smart PH1.0mm VHDCI 26 pin connector, there are two types: one 26 pin VHDCI male cable connector, another is 26 pin VHDCI female PCB connector.
a.Solder type smart 1.0mm pitch VHDCI 26 pin male connector for cable connection
IDC type 1.0mm pitch Crimp VHDCI 26 Pin male connector for cable connection

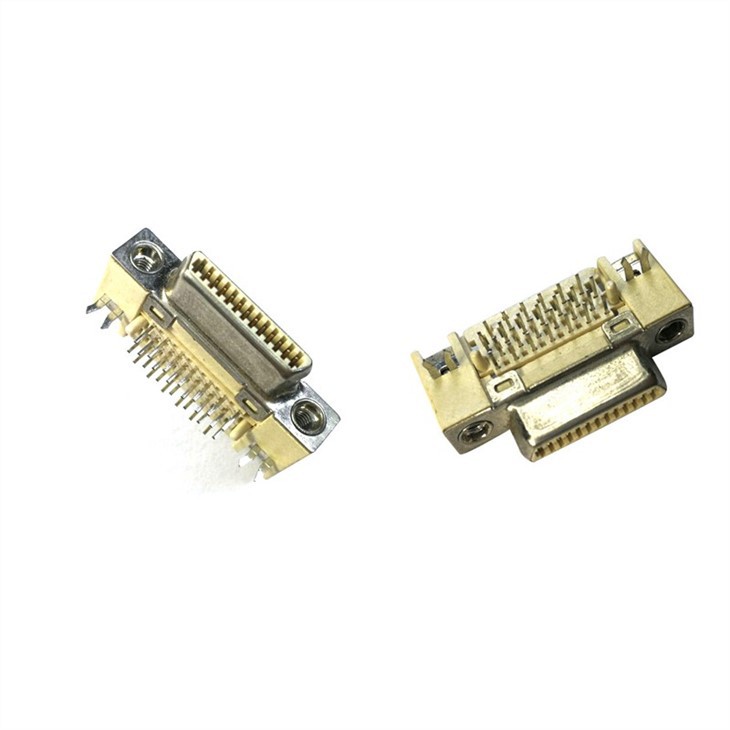

b.Right Angle Pitch 1.0mm 90 Degree VHDCI26 pin Female Connector
When you need VHDCI 26 pin connector, pls make sure which type pitch can match your demand, You can also confirm more details with Starte.
