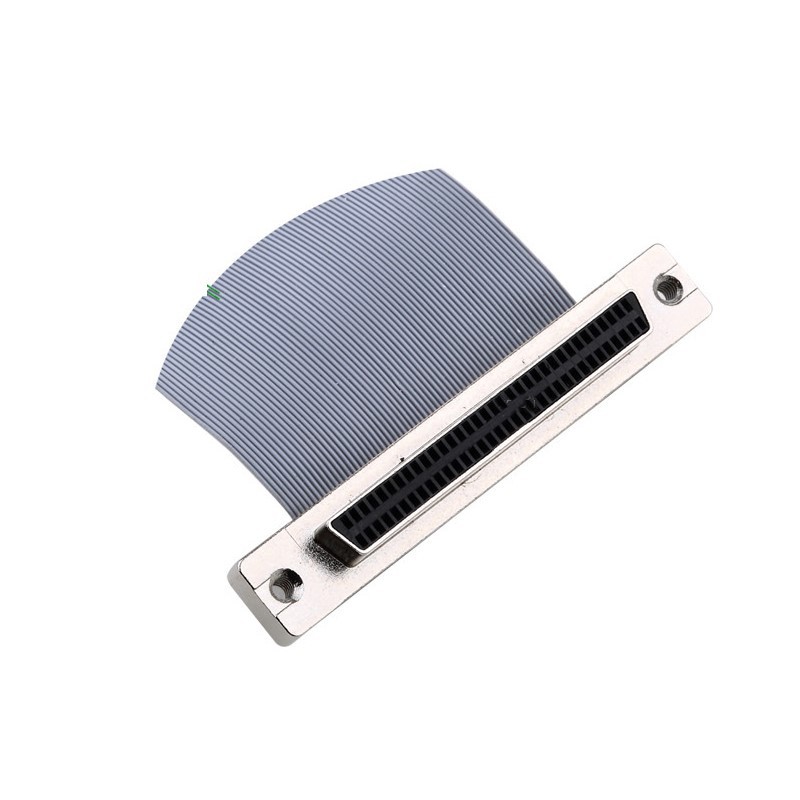

Exploring IDC type SCSI HD68 Pin Female Ribbon Connector for Flat Wire

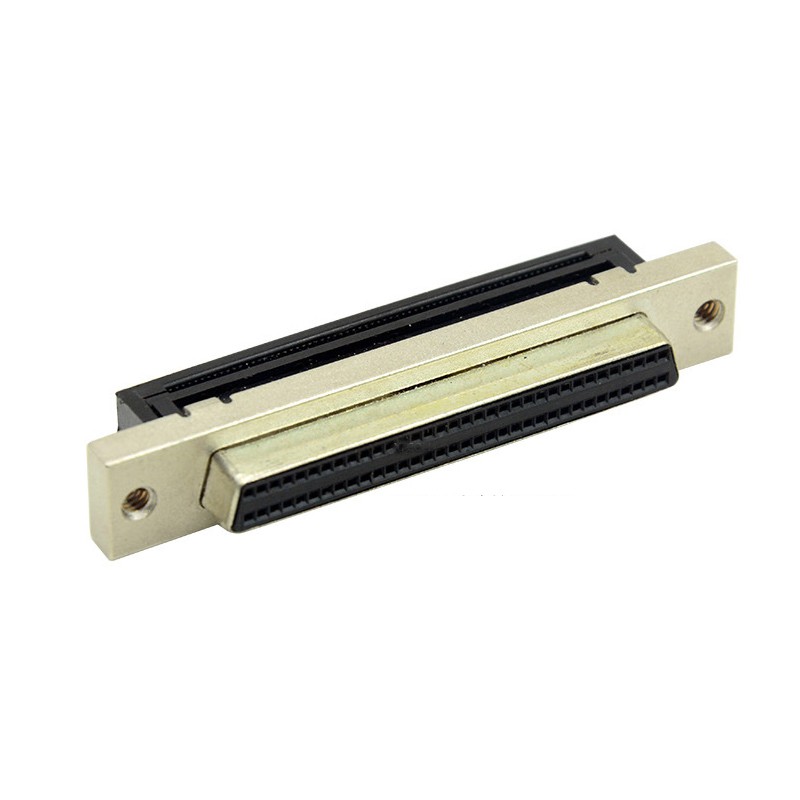

HD68 pin female connector is a high-density solution designed for using with flat ribbon cables, offering reliable and compact connectivity in a variety of data and storage applications. Often found in SCSI systems and other high-speed interfaces, DB68 SCSI connector is engineered to provide robust performance even in environments with tight space constraints.
High-Density Design:
With 68 precisely arranged pins, the connector ensures efficient signal transmission and reduces the risk of cross-talk. Its compact layout is ideal for 68 pin flat cable applications, where space is at a premium.
Reliable Connectivity:
Designed for using with 68 pin flat Ribbon wire, Micro DB 68 pin female connector typically features an insulation displacement connection (IDC) or similar termination method, which guarantees a secure, low-resistance connection.
Robust Construction:
Whether used in internal SCSI systems or for custom cable assemblies, MD68 pin connector is built to withstand repeated mating cycles and harsh operating environments.
Applications of HD68 pin female SCSI connector
SCSI Systems:
Frequently used in SCSI disk drives and internal hard drives, the HD68 connector is a common choice for systems that demand high data integrity and reliable performance.
Internal Cabling Solutions:
Its low-profile design makes it an excellent option for internal cabling in servers, workstations, and legacy computing equipment where flat ribbon cables are preferred.
Custom Assemblies:
Many engineers and cable manufacturers incorporate the HD68 pin female connector into custom cable assemblies, especially when converting internal ports to external connections or bridging wide and narrow SCSI configurations.
Installation and Best Practices
Proper Alignment:
Ensure that the connector's keyed design is correctly aligned with the mating connector to avoid misalignment and potential signal issues.
Secure Mounting:
When panel-mounting the connector, verify that the housing and mounting bracket provide a stable, secure installation, which is especially critical in high-vibration or confined environments.
Cable Management:
Because flat ribbon cables are particularly sensitive to bending, careful routing and strain relief measures should be employed to maintain signal integrity over time.
HD68 pin female connector for flat wire is a versatile and reliable component that plays a vital role in maintaining high-performance data connections, particularly in SCSI systems and custom cable assemblies. Its high-density configuration, robust construction, and ease of installation make it a preferred choice for professionals in the data storage and networking industries.
