Shenzhen Starte Technology Co., Ltd is one of the most reliable manufacturers and suppliers of left angle displayport to displayport panel mount cable in China. Please feel free to wholesale bulk high quality products made in China here from our factory. Customized orders are welcome.

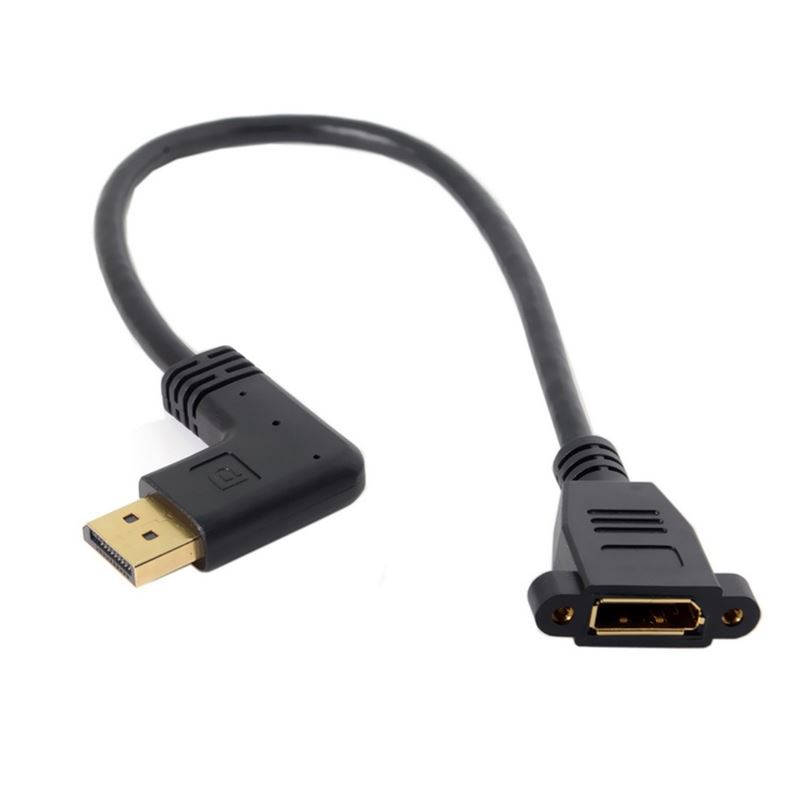

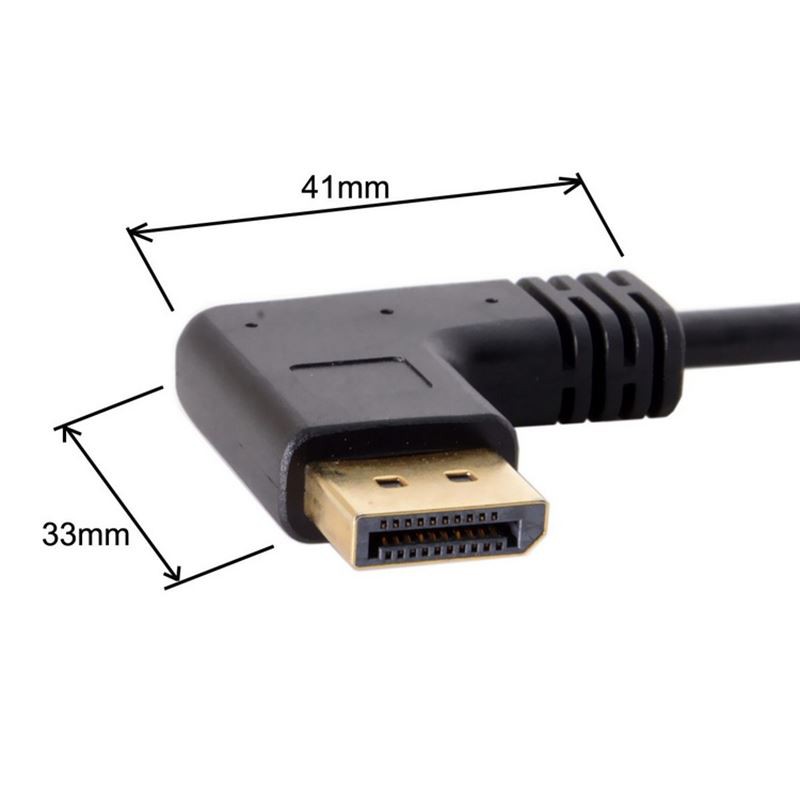

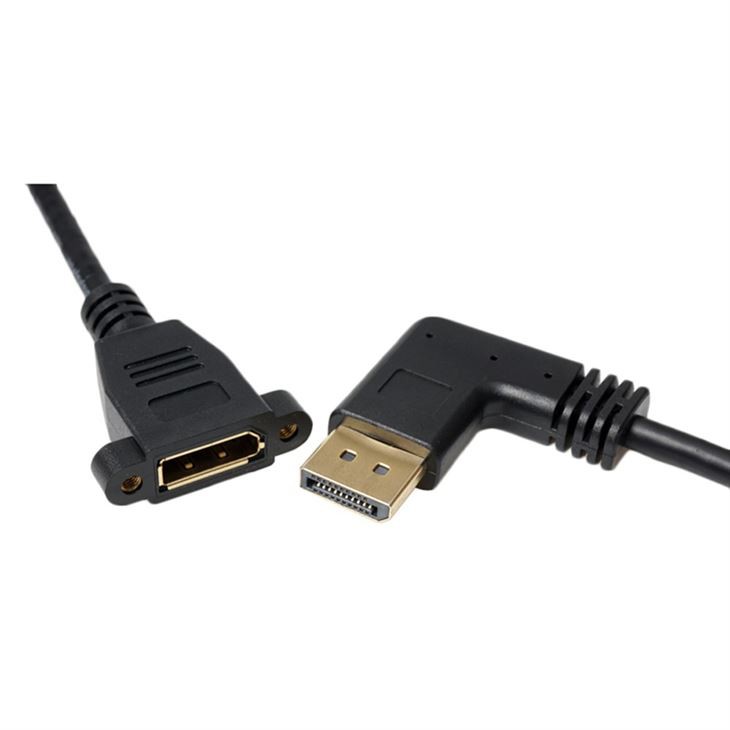

Starte Left Angle Displayport to DisplayPort Panel Mount Cable. This Left angle DisplayPort to DP Panel Mount Cable with screw features a left angle Displayport male connector on one side, which provide good connection in a limit space. The other side is a Displayport female conenctor with screw holes, which allows you to mount a Display port connection on a secure easily accessible panel, used with video streaming, gaming, or extending a workstation.
Product Parameters of 90 degree Displayport to DisplayPort Panel Mount Cable:
Item | Left Angle Displayport to DisplayPort Panel Mount Cable |
Brand | Starte |
Model No. | DPCA007 |
Cable Type | Dispalyport cable |
Interface type | DPisplayport |
Interface Version | DP 1.2/2.0 |
Interface Process | Gold Plated |
Conductor Material | Tinned Copper, Bare copper |
Resolution | 4K@60Hz, 2K@144Hz, 2K@165Hz |
Cable shielding | Al Foil+Braid |
Wire | 28AWG or 30AWG |
Screw Size | 4-40 |
Color | Black |
Jacket | PVC |
MOQ | 500 pieces |
Sample | Free |
Package | PE bags, Blister or Color Box |
Warranty | Two years |
OEM | Support |
Specification of Left angle DP male to Displayport Cable with screw hole:
1) 90 degree DP to DP male to female cable with screw hole panel mount cable

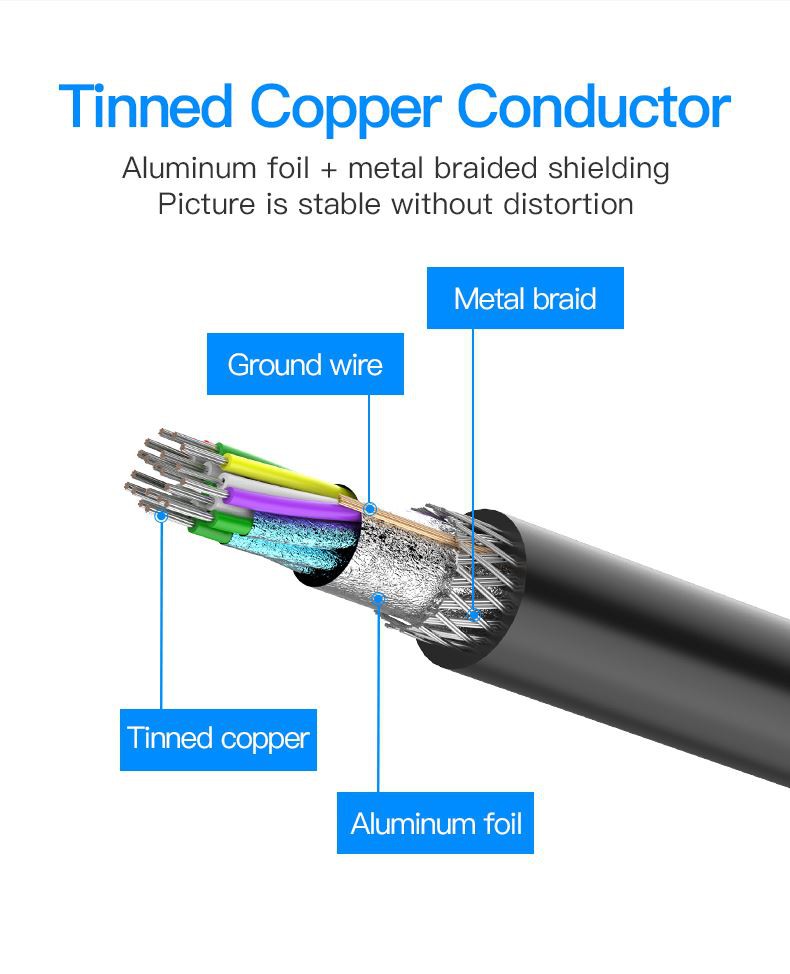

2) Spec: 30AWG(7/ 0.10T*1P+1C+AL+MYLAR)*5C+7/ 0.10Tx5C+ADB16/ 6/ 0.12AL, OD5.5mm
3) Compliant to version 1.2 specs; works with DP, DP++, and DisplayPort++; supports video resolutions up to 4Kx2K
4) Ideal for video streaming, gaming, or extending a workstation
Application of Displayport left angle to female panel mount DP Cable:
This Left Angle Displayport to DisplayPort Panel Mount Cable is used with video streaming, gaming, or extending a workstation.
