Starte makes molded type 18AWGX4C Din 4 pin male to female DC Power cable. This Din 4 pin male to female extension cable features a 4 PIN Din power male DC power connector on a side, a 4 PIN Din power female DC power connector on another side. Soldered with 18AWG*4C copper wire, which supports DC48V 7.5A max. Commonly used with computer power adapter, CCTV cameras, Motor control units, scanner, printer and other lower voltage devices.
Feature of Power Din 4 Pin Male to Female Extension Cable:
Connector: Din 4 pin male DC Power connector, replacement of KPPX-4P-SR7DI DC Power Connectors 4P POWER PLUG SNAP AND LOCK
Connector:Din 4 pin female DC Power connector, replacement of KPJX-CM-4S DC Power Connectors 4 pin SNAP & LOCK PWR/CBL
Wire: 2464 18AWG*4C Copper wire, support other size power wires, such as 20AWG/22AWG/24AWG*4C copper wire
Support 7.5A DC48V Max.
Molded cable is more stable when plug and push

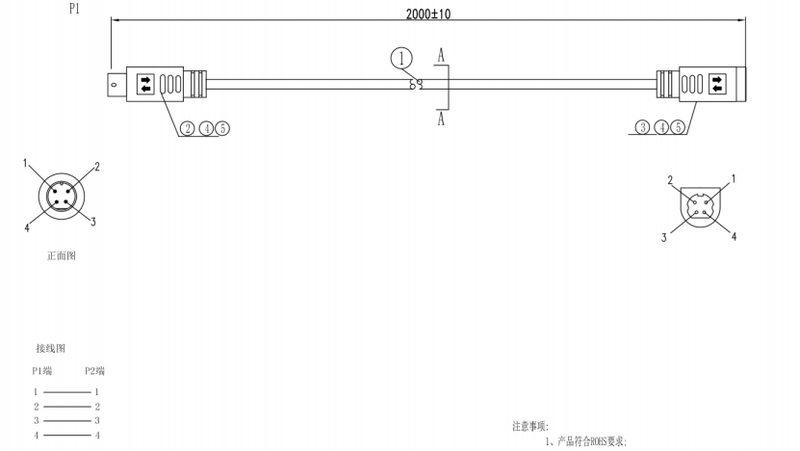

Wiring diagram of 4 PIN Power Din cable

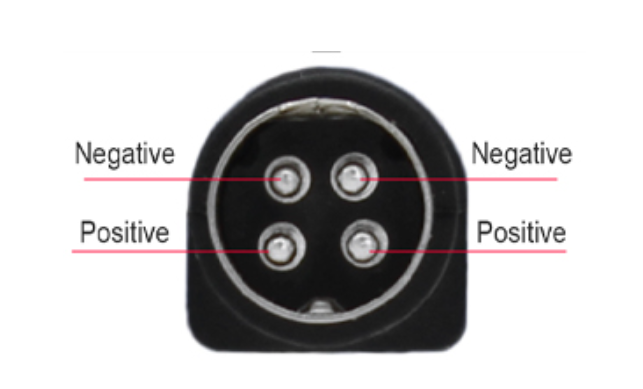

As for this cable uses 4 wires for power supply, so it is straight connection. Sometimes we may use 2 wires for power supply, you can solder two Negative pins together with one wire, two Positive Pins together. Here is Din 4 pin male connector pin layout.
Sometimes some clients need assemble connector which support snap&lock function,they are prefer to use KPPX-4P-SR7DI and KPJX-CM-4S, but price is very high. Starte also can use replacement of KPPX-4P-SR7DI and KPJX-CM-4S, which are compatible with Kyon Din 4 pin DC Power connector. Here is our Assemble Din 4 pin male DC Power connector picture and size.
