Shenzhen Starte Technology Co., Ltd is one of the most reliable manufacturers and suppliers of 90 degree delander 64pin female connector in China. Please feel free to wholesale bulk high quality products made in China here from our factory. Customized orders are welcome.

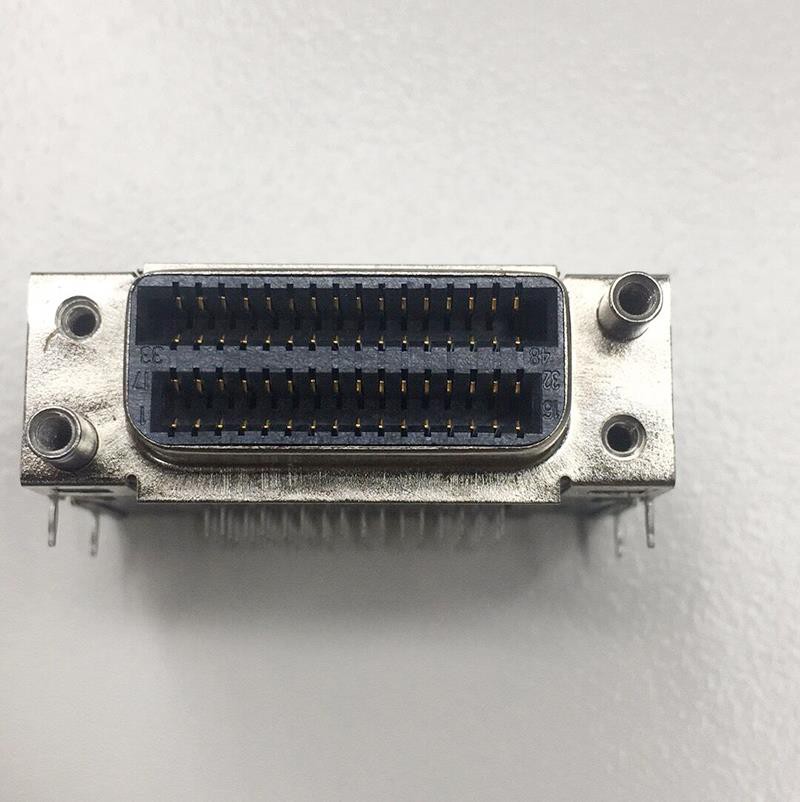

Starte 90 degree Delander 64pin female Connector, This Delander 64 positions female Board Connector is used on Huawei controller board, such as H809ASPB Voice Board for M5608T MA5603T MA5600T, which is 64-port VoIP subscriber board, providing 64 channels of VoIP POTS access services. It is also suitable for Huawei GPON MA5600T H801SHET Extension Board.
Product Parameters of Delander 64 pin female PCB Connector:
Item | 90 degree Delander 64pin female Connector |
Brand | Starte |
Model No. | RTCC002 |
Product type | Delander 64 pin connector |
No. Of Contact | 64 pin |
Contact Type | 64 pin female connector |
Contact Finishes | Gold Selective Plating |
MOQ | 1 PCS |
Sample | Free |
Package | Bags |
Warranty | Two years |
Technical Parameters of 90 degree 64 pin female delander Connector:
Connector Material | |
Housing | Plastic Thermoplastic P.B.T UL94V-0, Black |
Contacts | Copper Alloy Gold Selective Plated |
Front Shell | Steel, Nickel Plated Over Copper |
Bracket | Steel, Nickel Plated Over Copper |
Board Lock | Copper Tin Plated Over Copper |
Electrical Characterisitics | |
Contact Current Rating | 0.5 Amp |
Dielectric Withstanding Voltage | 150V AC |
Insulation Resistance | 500MΩ/ Min |
Contact Resistance | 35mΩ /Max |
Operation Temperature | -55°C~+85°C |

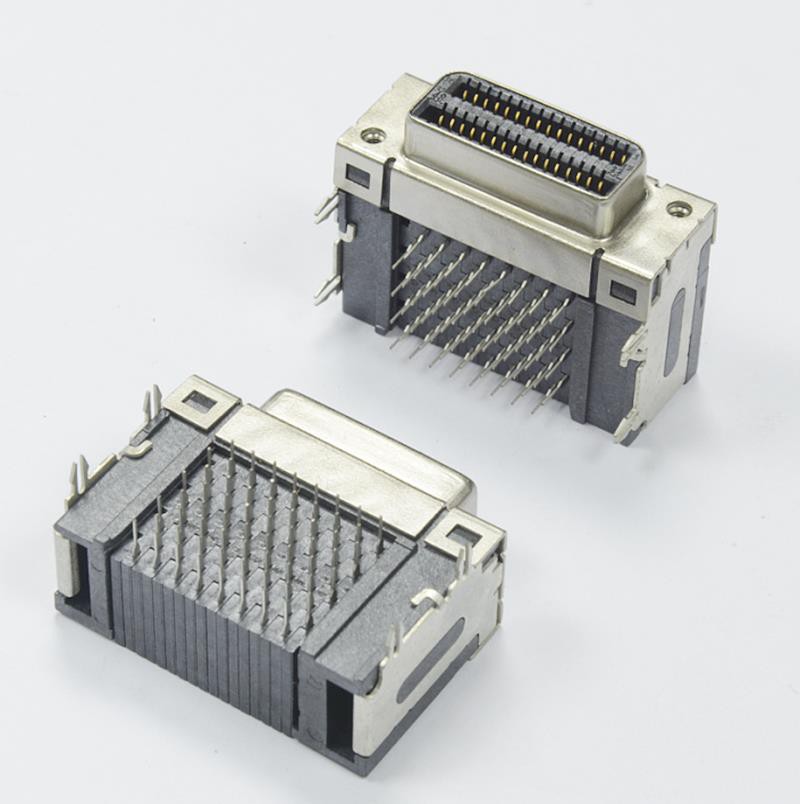

Application of Delander 64 pin female Huawei Connector:
This 90 degree Delander 64pin female Connector is mainly used on Huawei Device, such as Huawei GPON MA5600T H801SHET Extension Board.
Payment:
Shipment:
FAQ:
Q: What is your trade term supported?
A: EXW, FOB, CIF, CFR, DDU are all available.
Q: How can you sure goods would not be broken during shipment?
A:Each carton with suitable weight and use cushion board card to protect goods.
Q:How can I apply for OA 30 days payment terms?
A: After a long terms business cooperation, we can discuss it.
Q: What is the after-sale service?
A: Two year warranty and professional technology person to solve your matters.
Q: How do you control the quality?
A: Strict quality controlling system and Multiple testing to slow down the detective items.
Hot Tags: 90 degree delander 64pin female connector, China, suppliers, manufacturers, factory, customized, wholesale, bulk, made in China
