Shenzhen Starte Technology Co., Ltd is one of the most reliable manufacturers and suppliers of mini sas 36pin sff-8087 male to 90 degree 4 sata 7pin female cable in China. Please feel free to wholesale bulk high quality products made in China here from our factory. Customized orders are welcome.

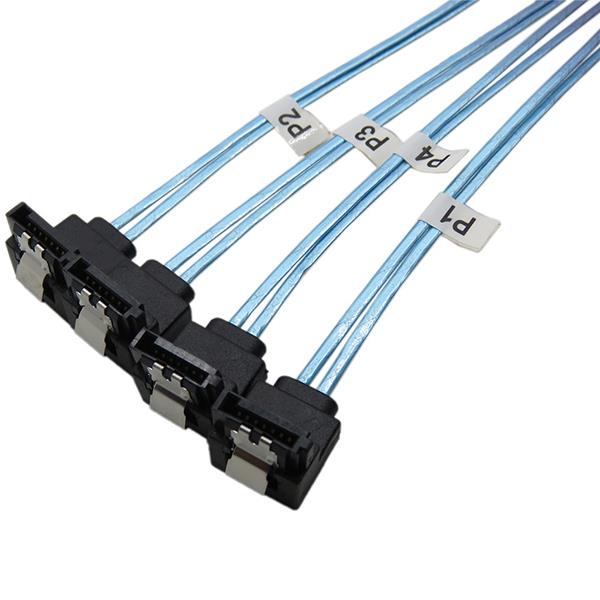

Starte Mini SAS 36Pin SFF-8087 Male to 90 degree 4 SATA 7Pin female Cable, this Internal Mini SAS 36pin SFF-8087 Host/Controller to 90 Degree 4 x SATA 7pin Target/Backplane Forward Breakout Cable includes acetate cloth tape over slim ribbon cables for strain relief to protect cables without rigidity; Woven mesh sheath covers half of the cable for easy routing; P1 to P4 markers provide easy ID after installation; Low profile SATA connectors have easy-grip treads with stainless steel latches to prevent accidental disconnection and reduce vibration disconnections.
Product Parameters of Mini SAS 36P SFF-8087 to 4 SATA 90 Degree Cable:
Item | Mini SAS 36Pin SFF-8087 Male to 90 degree 4 SATA 7Pin female Cable |
Brand | Starte |
Model No. | SASA005 |
Cable Type | Mini SAS SFF8087 to 90 degree 7 pin SATA Cable |
Connector 1 | 36 pin Mini SAS SFF-8087 Connector with latch x1 |
Connector 2 | 7 pin 90 degree SATA female connector with latch x 4 |
Conductors | BC, 30AWG |
Insulators | PE, natural color |
Drain Wire | BC, 28AWG |
Data transfer rate | 6Gbps |
Pin layout | Standard |
Sample | Allowed |
MOQ | 200 pcs |
Package | PE bags |
Warranty | Two years |
OEM | Support |
Feature of Mini SAS 4i SFF-8087 36 Pin to 90 Degree 4 SATA 7Pin Cable:
1)SFF-8087 to 4x right angle SATA mini SAS fanout cable eliminates accidental disconnections with its latching connectors and offers 6Gb/s bandwidth.
2)SFF-8087 to 4x right angle SATA mini SAS fanout cable is designed to connect 4 hard disk drives to the existing port of the system.
3)Cable helps to easily expand the storage needs while delivering ultra-fast error-free data transfers.
4)Flexibility to connect multiple SATA hard disk drives to a single SAS-port to easily expand your storage needs while delivering ultra-fast error-free data transfers
5)90 Degree Latching SATA connector eliminate accidental disconnections
Application of Mini SAS 36Pin (SFF-8087) Male to 4 SATA 7Pin female 90 Degrees Target Hard Disk Data Cable:
This Mini SAS 36Pin SFF-8087 Male to 90 degree 4 SATA 7Pin female Cable is designed to connect 4 SATA hard disk drives to the existing SAS port of your computer system.
