SCSI HD 100 Pin Male Connector with Screw

Starte SCSI HD 100 pin male Connector with screw, this HD 100 pin male SCSI connector is a 1.27mm SCSI male cable connector. It is screw locking and metal hood. When make a 100 pin scsi cable by it, the cable can be used to link 100-Pin Half-Pitch D-Sub Female Breakout Board. Product Parameters...

Send InquiryChat Now
Product Details

Starte SCSI HD 100 pin male Connector with screw, this HD 100 pin male SCSI connector is a 1.27mm SCSI male cable connector. It is screw locking and metal hood. When make a 100 pin scsi cable by it, the cable can be used to link 100-Pin Half-Pitch D-Sub Female Breakout Board.


Product Parameters of MD 100 pin male solder Connector:

Item

SCSI 100 pin male connector with screw

Brand

Starte

Product type

SCSI cable and connector

No. Of Contact

100 pin

Contact Type

100 pin male scsi solder connector

Options

Male, Screw,Assembly

Wire

28AWG or 30AWG support

Contact Finishes

Gold Selective Plating

MOQ

1 PCS

Sample

Free

Package

Bags

Warranty

Two years

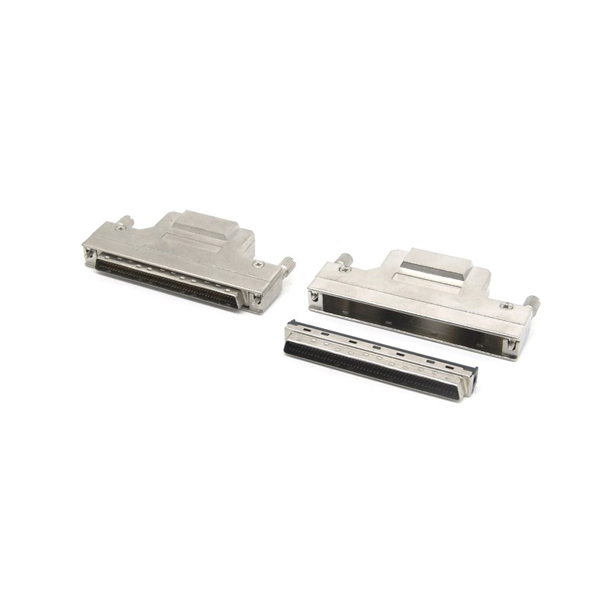

SCSI DB 100 pin male solder Connector with screw.jpg



Technical Parameters of SCSI HD100 pin male cable Connector:

Connector Material

Housing

Plastic Thermoplastic P.B.T UL94V-0, Black

Contacts

Copper Alloy Gold Selective Plated

Front Shell

Steel, Nickel Plated Over Copper

Straight exit Metal cover Material

Back Shell

Zinc Alloy, Nickel Plated Over Copper

Flat Screws

Steel, Nickel Plated Over Copper

Jack screws

Steel, Nickel Plated Over Copper

Cable Clipper

Steel, Nickel Plated Over Copper

Electrical Characteristics

Contact Current Rating

1.0 Amp

Dielectric Withstanding Voltage

500V AC

Insulation Resistance

500MΩ/ Min

Contact Resistance

35mΩ /Max

Operation Temperature

-55°C~+105°C


Application of High density 100 pin male connector:
It can be used to make a HD 100 pin male to male cable for Motion contrller. Cable is connected to simplify prototyping and integration. Designed to minimize, if not eliminate, EMI pickup and other I/O signals from the motion controller


FAQ:
Q: How about package?
A: Normal is neutral PE bags for each items. Blister box and Colore Box are supported.


Q: How long is your production time?
A: 10-15 working days for normal item, special item would be 20 days or longer.


Q:Can I send defective items to you directly?
A: We can calcuate the fee after discussion.


Q: Is sample free or charged?
A:Normal item could be provided freely, special item would be paid for related cost.


Q: Mass production would be same with sample quality?

A:Yes, mass production would be strictly same with Drawing and Sample confirmed.
