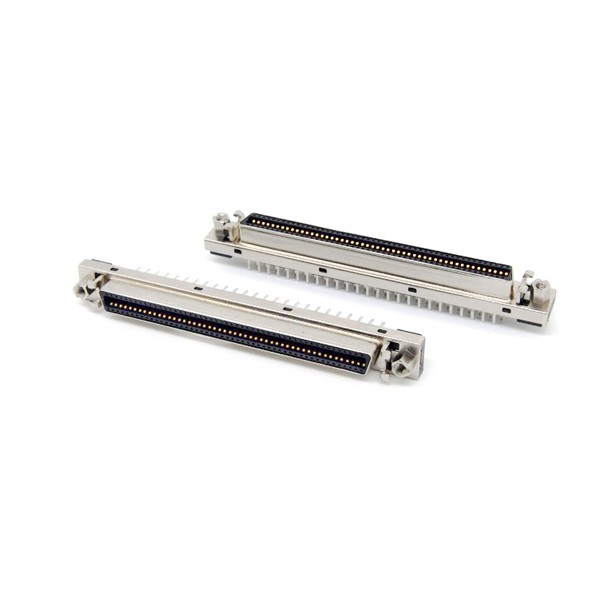

Vertical 100 Pin Female SCSI Connector

Starte vertical SMT 100 pin female scsi connector for PCB, receptacles Vertical Mount S.M.T type Mini Centronics 100 pin female connector pin arrangement in two rows, one on top of the other. The top row has 50 pins and the lower row has 50 pins. It is usually used on the Industrial equipment...

Send InquiryChat Now
Product Details

Starte vertical SMT 100 pin female scsi connector for PCB, receptacles Vertical Mount S.M.T type Mini Centronics 100 pin female connector pin arrangement in two rows, one on top of the other. The top row has 50 pins and the lower row has 50 pins. It is usually used on the Industrial equipment PCB.


Product Parameters of vertical CN100 pin female SCSI connector with clip:

Item

CN 100 pin SCSI female connector with clip

Brand

Starte

Product type

SCSI cable and connector

No. Of Contact

100 pin

Contact Type

1.27mm Headers Vertical Mount type connector

Options

Latch bracket

Threaded Finishes

M2.6

Contact Finishes

Gold Selective Plating

MOQ

1 PCS

Sample

Free

Package

Bags

Warranty

Two years

Headers Vertical Mount SCSI MDR 100 pin female connector for PCB.jpg


Technical Parameters of 180 degree SCSI MDR100 pin female connector with clip:

Connector Material

Housing

Plastic Thermoplastic P.B.T UL94V-0, Black

Contacts

Copper Alloy Gold Selective Plated

Front Shell

Steel, Nickel Plated Over Copper

Bracket

Zinc Alloy, Nickel Plated Over Copper

Electrical Characterisitics

Contact Current Rating

0.5 Amp

Dielectric Withstanding Voltage

150V AC

Insulation Resistance

500MΩ/ Min

Contact Resistance

35mΩ /Max

Operation Temperature

-55°C~+85°C


Application of DB 100 female scsi PCB connector:
1)Scuzzy motion controller, Scuzzy PCIx card
2)Scuzzy RAIDs,CD ROM,File Server board
3)Networking Equipments board
4)Small computer and intelligent peripherals,printers,hard disks,CD ROM drivers


FAQ:
Q: Which country is your largest market?
A: France is largest.


Q: How can you sure goods wouldnot be broken during shipment?
A:Each carton with suitable weight and use cushin boardcard to protect goods.


Q: Can I pay deposit for appling production, then finish balance payment after receiving goods at first time?

A: Sorry, we can accept this after several cooperation.


Q: What is the minimum order quantity (MOQ) ?

A: Common items should be 500PCS, Special ones should be 100PCS.


Q: How about package?
A: Normal is neutral PE bags for each items. Blister box and Colore Box are supported.
