20 Pin Male SCSI Connector for Servo

Starte 20 pin male SCSI connector for servo, the MDR 20 pin male connector pin arrangement in two rows, one on top of the other. The top row has 10 pins and the lower row has 10 pins. It is Replace 3M 10320 Solder Type SCSI MDR 20 pin Cable servo Connector, used on the cable for connecting servo...

Send InquiryChat Now
Product Details

Starte 20 pin male SCSI connector for servo, the MDR 20 pin male connector pin arrangement in two rows, one on top of the other. The top row has 10 pins and the lower row has 10 pins. It is Replace 3M 10320 Solder Type SCSI MDR 20 pin Cable servo Connector, used on the cable for connecting servo driver.


Product Parameters of MDR 20 pin male  Connector :

Item

Replace 3M 10320 Solder Type SCSI MDR 20 pin Cable servo Connector

Brand

Starte

Product type

SCSI cable and connector

No. Of Contact

20 pin

Contact Type

20 pin male scsi solder connector

Options

Male, Screw,Assembly

Wire

28AWG or 30AWG support

Contact Finishes

Gold Selective Plating

MOQ

1 PCS

Sample

Free

Package

Bags

Warranty

Two years

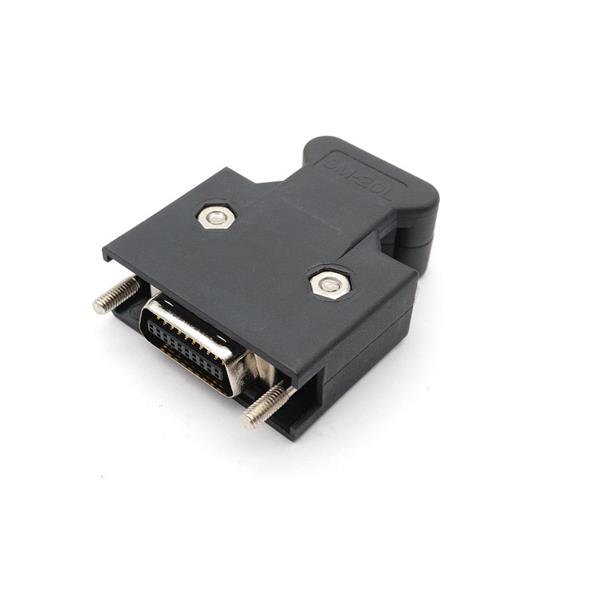

Replace 3M 10320 Solder Type SCSI MDR 20 pin Cable servo Connector.jpg

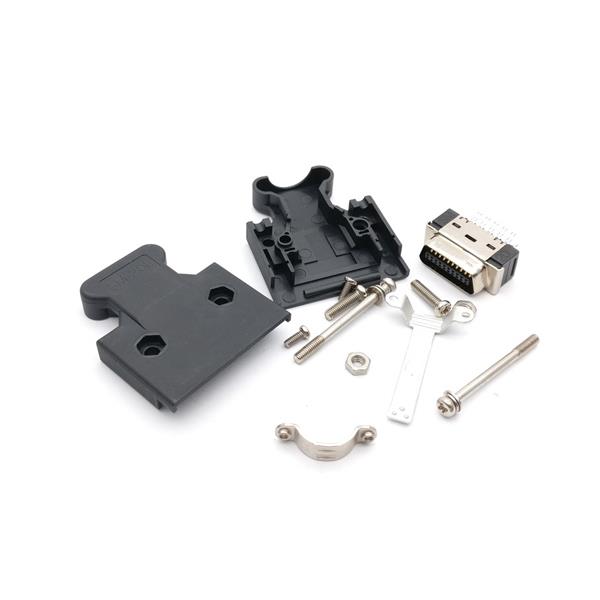

Replace 3M 10320 Solder Type SCSI MDR 20 pin Cable Connector.jpg

Technical Parameters of SCSI MDR 20 pin male cable Connector:

Connector Material

Housing

Plastic Thermoplastic P.B.T UL94V-0, Black

Contacts

Copper Alloy Gold Selective Plated

Front Shell

Steel, Nickel Plated Over Copper

Plastic Cover Material

Hood

Plastic Thermoplastic P.B.T UL94V-0

Inner Shell

Steel, Nickel Plated Over Copper

Jack screws

Steel, Nickel Plated Over Copper

Jack screws Hood

PVC

Electrical Characteristics

Contact Current Rating

1.0 Amp

Dielectric Withstanding Voltage

500V AC

Insulation Resistance

500MΩ/ Min

Contact Resistance

35mΩ /Max

Operation Temperature

-55°C~+105°C

Application of 20 pin male MDR connector:

1)connector for scsi drive, Sanyo Denki YASKAWA servo
2)Used on scsi hard drive, scsi disk drive
3)SCSI controller, Motion Controller
4)Replace for Panasonic/MITSUBISHI/Matsushita Yaskawa CN1 Connector 3M 10320 SCSI 20P servo driver


FAQ:
Q:Is your cable compatible of RoHs?
A:Yes, all material are compatible RoHs and SGS.


Q:Does your cable has UL cetificate?
A:Yes, our wire supplier have acquired UL cetificate, you can check it on UL website.


Q: What is your main market?
A: European, North America, South America and East Asia.


Q: Which country is your largest market?
A: France is largest.


Q: What is your trade term supported?
A: EXW, FOB, CIF, CFR, DDU are all available.
