Right Angle MDR 26 Pin Female Connector

Starte right angle MDR 26 female SCSI connector, headers right angle mount CN 26 female connector pin arrangement in two rows, one on top of the other. The top row has 13 pins and the lower row has 13 pins. It is similar with 3M Mini Delta Ribbon 26 pin connector, and used on the Industrial...

Send InquiryChat Now
Product Details

Starte right angle MDR 26 female SCSI connector, headers right angle mount CN 26 female connector pin arrangement in two rows, one on top of the other. The top row has 13 pins and the lower row has 13 pins. It is similar with 3M Mini Delta Ribbon 26 pin connector, and used on the Industrial equipment PCB.


Product Parameters of SCSI CN 26 female connector with clip:

Item

90 degree MDR 26 pin female connector

Brand

Starte

Product type

SCSI cable and connector

No. Of Contact

26 pin

Contact Type

MDR 26 pin female PCB connector

Options

female, latch bracket

PCB Layout

Standard

Contact Finishes

Gold Selective Plating

MOQ

1 PCS

Sample

Free

Package

Bags

Warranty

Two years

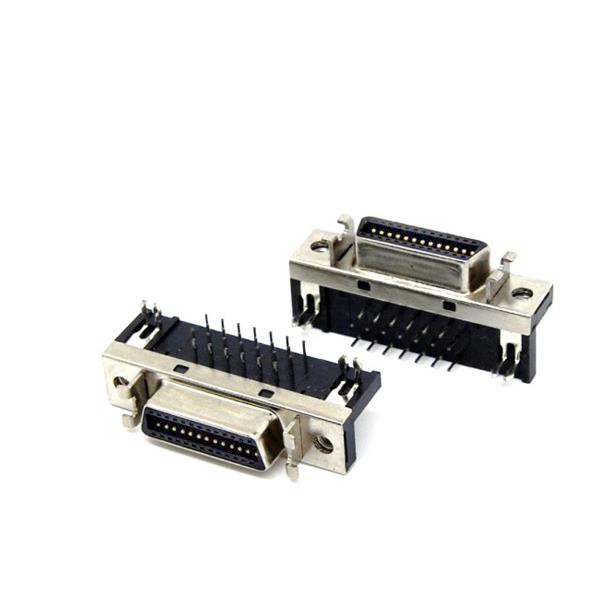

Header right angle mount SCSI MDR 26 female connector with clip.jpg

Technical Parameters of angled MDR 26P female connector for PCB:

Connector Material

Housing

Plastic Thermoplastic P.B.T UL94V-0, Black

Contacts

Copper Alloy Gold Selective Plated

Front Shell

Steel, Nickel Plated Over Copper

Bracket

Zinc Alloy, Nickel Plated Over Copper

Electrical Characterisitics

Contact Current Rating

0.5 Amp

Dielectric Withstanding Voltage

150V AC

Insulation Resistance

500MΩ/ Min

Contact Resistance

35mΩ /Max

Operation Temperature

-55°C~+85°C


Application of angled MDR 26 pin female PCB Connector:
1)connector for scsi drive, Sanyo Denki YASKAWA servo
2)Used on scsi hard drive, scsi disk drive
3)SCSI controller, Motion Controller
4)Small computer and intelligent peripherals,printers,hard disks,CD ROM drivers


FAQ:
Q:Is your cable compatible of RoHs?
A:Yes, all material are compatible RoHs and SGS.


Q: What is your main market?
A: European, North America, South America and East Asia.


Q: What is your trade term supported?
A: EXW, FOB, CIF, CFR, DDU are all available.


Q: Do you have logistcs company?
A:No, but we have several stable and long cooperated logistcs agent, they are professional about shipment.


Q: What’s your normal payment terms?
A: 30%T/T in advance, 70% balance payment finished before shipment.
