Shenzhen Starte Technology Co., Ltd is one of the most reliable manufacturers and suppliers of hd 50 female solder connector with screw in China. Please feel free to wholesale bulk high quality products made in China here from our factory. Customized orders are welcome.

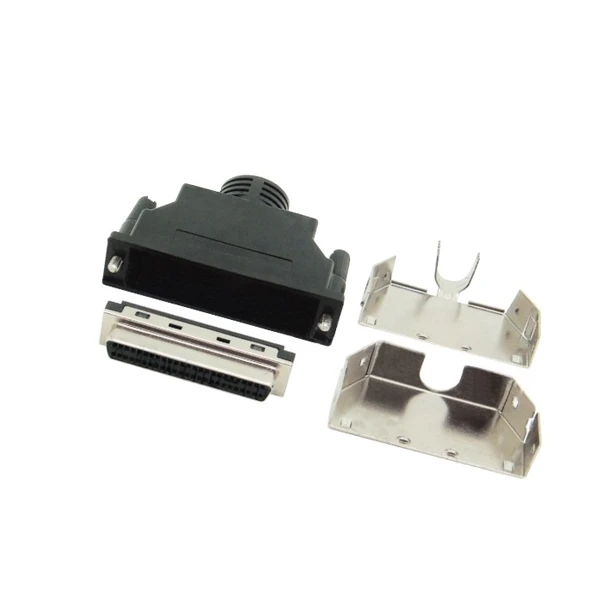

Starte HD 50 female solder connector with screw and Plastic Cover, this 50 pin scsi ii female connector pin arrangement in two rows, one on top of the other. The top row has 25 pins and the lower row has 25 pins. Often used on the cable for connecting servo driver,extend SCSI HD 50 pin male to male cable.
Product Parameters of HD 50 pin female Connector with screw:
Item | 50 pin female HD connector with screw |
Brand | Starte |
Product type | SCSI cable and connector |
No. Of Contact | 50 pin |
Contact Type | 1.27mm cable receptacles Connector solder type |
Options | Female, Screw,Assembly |
Wire | 28AWG or 30AWG support |
Contact Finishes | Gold Selective Plating |
MOQ | 1 PCS |
Sample | Free |
Package | Bags |
Warranty | Two years |
Technical Parameters of SCSI HD50 pin female Connector:
| Connector Material | |
Housing | Plastic Thermoplastic P.B.T UL94V-0, Black |
Contacts | Copper Alloy Gold Selective Plated |
Front Shell | Steel, Nickel Plated Over Copper |
Plastic Cover Material | |
Hood | Plastic Thermoplastic P.B.T UL94V-0 |
Inner Shell | Steel, Nickel Plated Over Copper |
Jack screws | Steel, Nickel Plated Over Copper |
Jack screws Hood | PVC |
Electrical Characterisitics | |
Contact Current Rating | 1.0 Amp |
Dielectric Withstanding Voltage | 500V AC |
Insulation Resistance | 500MΩ/ Min |
Contact Resistance | 35mΩ /Max |
Operation Temperature | -55°C~+105°C |
Application of HD 50 Female Solder Connector with Screw:
1)motion controller, SCSI hard driver, PCIx card
2)Servers machines and Drive enclosures equipments,
3)Mass storage machines,PCs and Macs and more peripherals
4)Extend SCSI HD 50 male to male cable
FAQ:
Q: Can you provide OEM& ODM service.
A: Yes, we have engineers for custom items.
Q: How about shipment?
A:Express, Air shipemnt and Sea shipemnt are allowed.
Q:Is it possible to finish production around 7-10 days?
Q:Yes, if urgent, we can apply for it.
Q:Can I send defective items to you directly?
A: We can calcuate the fee after discussion.
Q: How can I get a sample to check your quality?
A: After price confirmation, we can talk about sample.
Q: How about shipment ways of sample?
A: If urgent, Express would be better, if not, Air or sea shipment can be accepted.
