Right Angle MDR 68 Pin Female Connector

Starte right angle MDR 68 pin female connector for PCB, the Headers right angle Mount type SCSI CN 68 pin female connector pin arrangement in two rows, one on top of the other. The top row has 34 pins and the lower row has 34 pins. Often used on the Industrial equipment’s PCB, scsi servo PCB and...

Send InquiryChat Now
Product Details

Starte right angle MDR 68 pin female connector for PCB, the Headers right angle Mount type SCSI CN 68 pin female connector pin arrangement in two rows, one on top of the other. The top row has 34 pins and the lower row has 34 pins. Often used on the Industrial equipment’s PCB, scsi servo PCB and motion controller PCB.


Product Parameters of right angle MC 68 female connector:

Item

SCSI CN 68 pin female connector with clip

Brand

Starte

Product type

SCSI cable and connector

No. Of Contact

68 pin

Contact Type

1.27mm Header right angle Mount type connector

Options

Latch Bracket

Threaded Finishes

M2.6

Contact Finishes

Gold Selective Plating

MOQ

1 PCS

Sample

Free

Package

Bags

Warranty

Two years

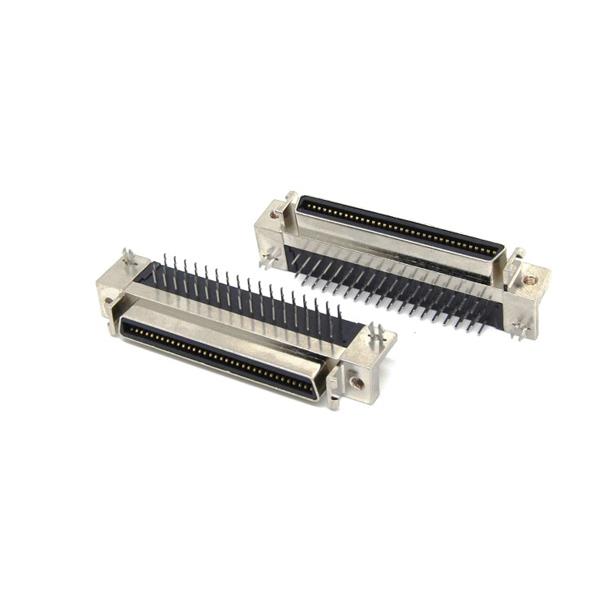

Headers right angle Mount SCSI MDR 68 pin female connector for PCB.jpg



Technical Parameters of angled 68 pin female SCSI Connector:

Connector Material

Housing

Plastic Thermoplastic P.B.T UL94V-0, Black

Contacts

Copper Alloy Gold Selective Plated

Front Shell

Steel, Nickel Plated Over Copper

Bracket

Steel, Nickel Plated Over Copper

Board Lock

Copper Tin Plated  Over Copper

Electrical Characterisitics

Contact Current Rating

0.5 Amp

Dielectric Withstanding Voltage

150V AC

Insulation Resistance

500MΩ/ Min

Contact Resistance

35mΩ /Max

Operation Temperature

-55°C~+85°C


Application of 90 degree CN 68 pin female scsi connector:
1)SCSI motion controller, PCIx card PCB
2)Servers machines and Drive enclosures equipments,
3)RAIDs,CD ROM,File Server board
4)Small computer and intelligent peripherals,printers,hard disks,CD ROM drivers


FAQ:
Q: When can I get the price?
A: Within 24 hours normally.If Urgent, please call us directly.


Q: How long it takes to make sample?
A: Normal item can be finished in 3 days, special item takes more time.


Q: Mass production would be same with sample quality?
A:Yes, mass production would be strictly same with Drawing and Sample confirmed.


Q:Where is your factory located?
A: Located in Shenzhen City, GuangDong Province, China


Q: Why choose us?
A: Professional manufacturer of cable with development, design, production and sales. Good quality with Competitive price, Faster delivery and Satisfied service.
