Up Angle Mini USB Male To B Female Panel Mount Cable

Up Angle Mini USB Male To B Female Panel Mount Cable

Starte up angle Mini USB Male to USB2.0 B Female Panel Mount Cable, this USB 2.0 B Female to Mini 5pin Male up Angle Panel Mount Cable will make it easy for you to enclose a device that has a mini-B USB type port. Most handy when putting a Teensy, FTDI friend, USB LiPo charger, USB Boarduino, etc into a box...

Product Introduction

Shenzhen Starte Technology Co., Ltd is one of the most reliable manufacturers and suppliers of up angle mini usb male to b female panel mount cable in China. Please feel free to wholesale bulk high quality products made in China here from our factory. Customized orders are welcome.



Starte up angle Mini USB Male to USB2.0 B Female Panel Mount Cable, this USB 2.0 B Female to Mini 5pin Male up Angle Panel Mount Cable will make it easy for you to enclose a device that has a mini-B USB type port. Most handy when putting a Teensy, FTDI friend, USB LiPo charger, USB Boarduino, etc into a box. The jack half has two mounting 'ears' with M3 screws installed. Can be used with box walls 0.125" to 0.25" wide.



Product Parameters of Panel mount USB 2.0 B to up angle Mini B Cable:

Item

up angle Mini USB Male to USB2.0 B Female Panel Mount Cable

Brand

Starte

Model No.

U2CE007

Cable Type

USB 2.0 B type to mini usb cable

Connector 1

Panel mount USB 2.0 Type B female connector x1

Connector 2

USB 2.0 mini 5pin male connector x1

Connector plating

Nickle Plated

Gender

Female to male

Wire

UL 28AWG

Conductor

BC,TC

Pin layout

Standard

Shielding

Al-foil and braid

Color

Black

Sample

Allowed

MOQ

500 pcs

Package

PE bags

Warranty

Two years

OEM

Support

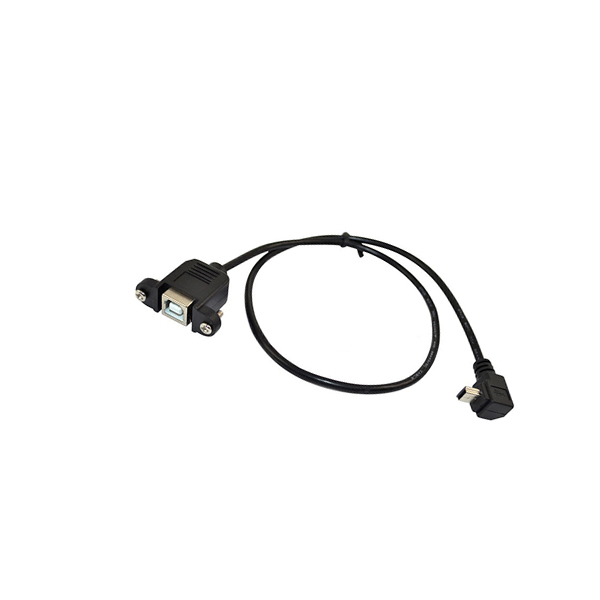

USB 2.0 B panel mount to mini 5 pin up angle cable.jpg

90 degree Mini USB to USB B panel mount cable.jpg


Feature of 90 degree mini B Male to B Female Panel Mount USB Cable:

1)USB 2.0 Standard B female used to connect Printer, scanner data cable.

2)Mini USB B 5Pin male used to connect cell phone, digital camera, PC and other similar devices.

3)Mostly used in manufacturing situations, where a company wants to add this into their product, such as a printer or robot.

4)Panel mount on the B Female side makes it an easy fit and easy to work with in your development process.

5)Most handy when putting a Teensy, FTDI friend, USB LiPo charger, USB Boarduino, etc into a box!,



Application of USB 2.0 B female panel mount to mini 5pin male up angle Cable:

This up angle Mini USB Male to USB2.0 B Female Panel Mount Cable makes it is mostly used in manufacturing situations, where a company wants to add this into their product, such as a printer or robot.



Payment:




Shipment:



FAQ:

Q: Why choose us?

A: Professional manufacturer of cable with development, design, production and sales. Good quality with Competitive price, Faster delivery and Satisfied service.



Q: Does your cable has UL cetificate?

A: Yes, our wire supplier have acquired UL cetificate, you can check it on UL website.



Q: What’s your normal payment terms?

A: 30%T/T in advance, 70% balance payment finished before shipment.



Q: Can I pay deposit for appling production, then finish balance payment after receiving goods at first time?

A: Sorry, we can accept this after several cooperation.



Q: How about package?

A: Normal is neutral PE bags for each items. Blister box and Colore Box are supported.
