Shenzhen Starte Technology Co., Ltd is one of the most reliable manufacturers and suppliers of ttl-232r-3v3 usb to 3.5mmttl cable in China. Please feel free to wholesale bulk high quality products made in China here from our factory. Customized orders are welcome.

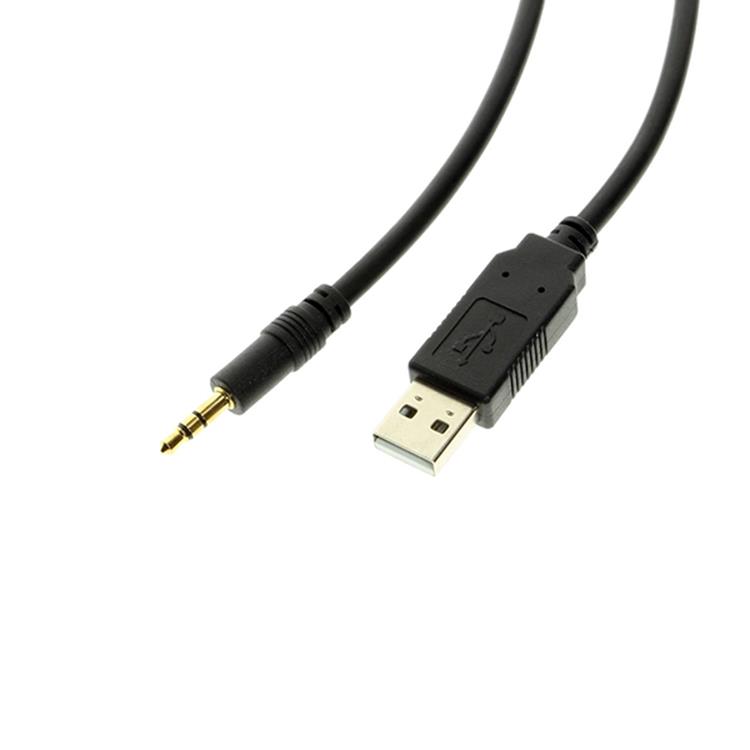

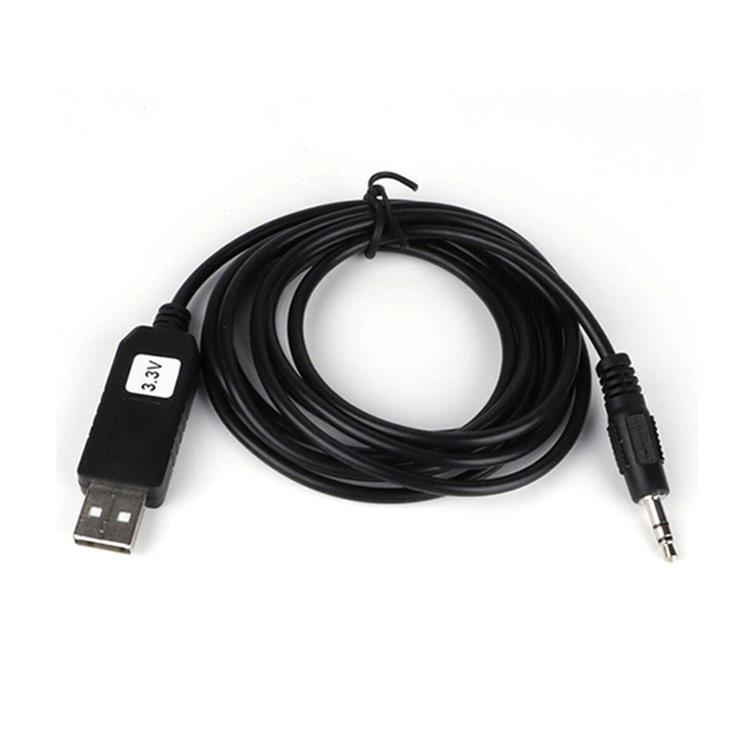

Starte TTL-232R-3V3 USB to 3.5mmTTL Cable, is also named TTL to USB Serial TTL-232R-3v3-AJ 3.5mm UART Cable. It is a 3.3v Level TTL signal cable with FTDI chipset (Not RS232), It is not a common headphone cable, terminated with a 3.5mm audio jack connector which provides access to the TX, RX and GND signals. Works for Galileo Gen2 Boards/BeagleBone Black/Minnowboard Max and more.
Product Parameters of USB TTL UART 3.3V to 3.5mm Stereo Cable:
| Item | TTL-232R-3V3 USB to 3.5mmTTL Cable |
Brand | Starte |
Model No. | U2CA017 |
Cable Type | USB to 3.5MM Audio cable |
Connector 1 | USB 2.0 male connector |
Connector 2 | 3.5mm audio plug connector |
Chipset | FTDI chipset |
Number of Channels | 1 |
Number of Conductors | 3 |
Baud Rate | 3 Mbaud |
USB version | 1.1 or 2.0 compliant |
External Power Supply | No need |
Color | Black |
Sample | Allowed |
MOQ | 500 pcs |
Warranty | Two years |
OEM | Support |
Feature of USB to 3.3v TTL Header to 3.5mm Audio Cable:

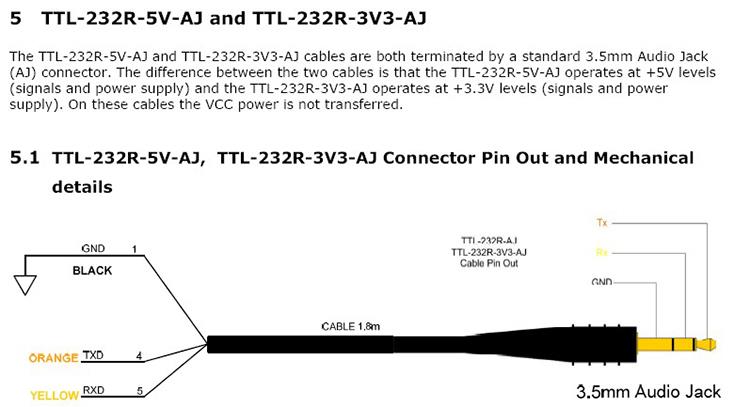

1)Standard pinout: TIP-TXD, RING-RXD, SLEEVE-GND
2)Converts the terminated connection with a 3.5mm audio jack which provides access to the TX, RX and GND signals.
3)Works with all Windows and Mac OS versions including the latest Windows 10 and 4)Mac OS X 10.10(Yosemite) and 10.11(EI Capitan)suitable for various applications such as: connect PLX SM-AFR to Romraider logger, program Intel Galileo, etc
Application of 3.3V TTL-232R Serial UART 3.5mm Audio Cable:
This TTL-232R-3V3 USB to 3.5mmTTL Cable is a type of general USB serial adapter cable suitable for various applications such as: connect LG HDTV, LG Televisons, Mazur PRM-9000 program Intel Galileo, etc.
Payment:
Shipment:
FAQ:
Q: What is your rules of defective products?
A: We can provide 1‰ extra items for you, we can subtract the cost in next order or do compensation.
Q: Can I send defective items to you directly?
A: We can calculate the fee after discussion.
Q: How about shipment?
A:Express, Air shipment and Sea shipment are allowed.
Q: How much of your products?
A: More details provided and confirmed, more precision price would be provide.
Q: Would you provide technical support after sales?
A: Yes, any issue, you can contact us directly.
