Shenzhen Starte Technology Co., Ltd is one of the most reliable manufacturers and suppliers of ttl-232r-5v usb to ttl uart serial cable in China. Please feel free to wholesale bulk high quality products made in China here from our factory. Customized orders are welcome.

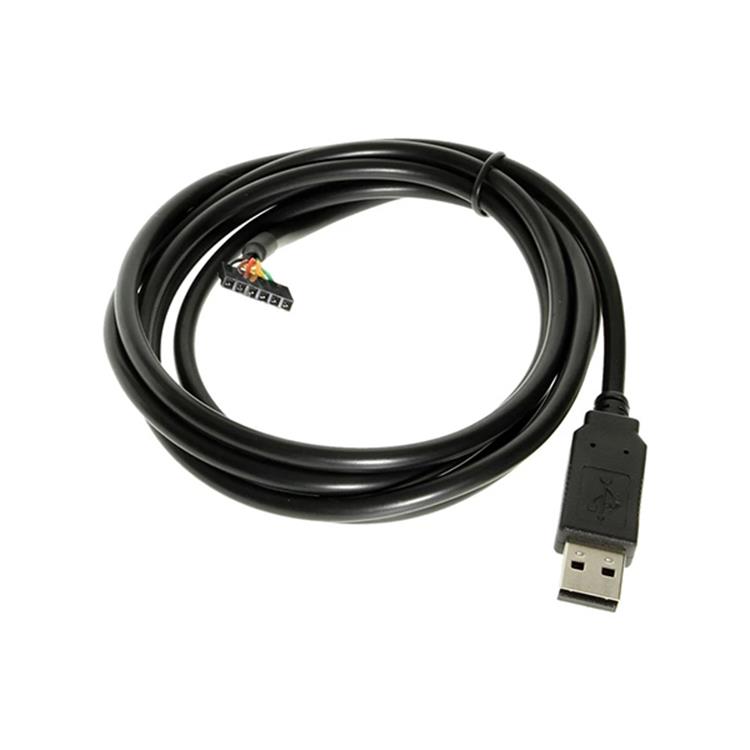

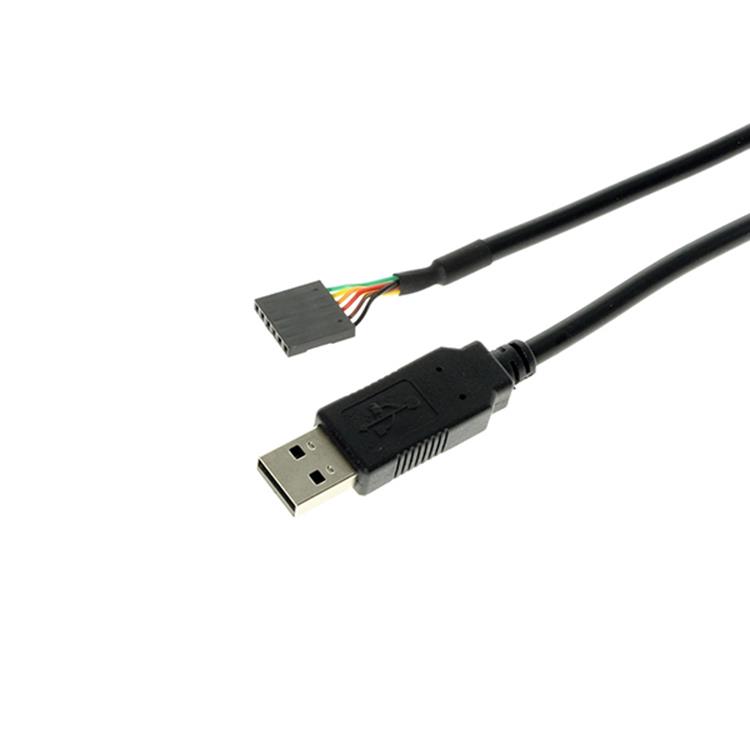

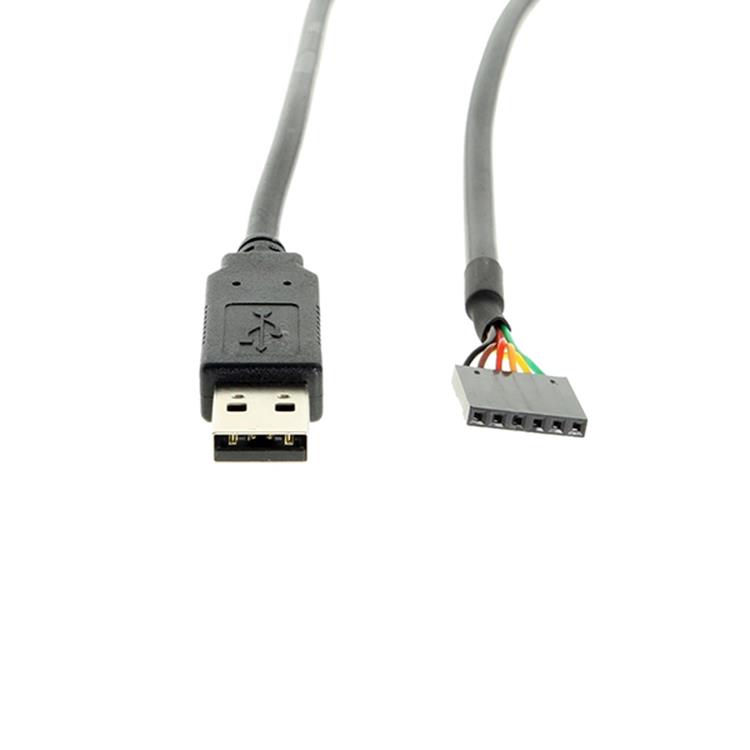

Starte TTL-232R-5V USB to TTL UART serial Cable, is also named 6 Way Header USB to TTL 5V UART Converter Cable. It has a +5V output powered from the USB Type-A port, use a 6-pin TTL header connector interface for your serial communications. LED's activity lights located in the translucent USB jacket lets you know power and signal is active. Suitable for UHCI / OHCI / EHCI host controller.
Product Parameters of USB to Serial UART 5V TTL Header Cable:
Item | TTL-232R-5V USB to TTL UART serial Cable |
Brand | Starte |
Model No. | U2CA015 |
Cable Type | USB to TTL cable |
Connector 1 | USB 2.0 male connector |
Chipset | FTDI chipset |
Number of Channels | 1 |
Number of Conductors | 6 |
Baud Rate | 3 Mbaud |
USB version | 1.1 or 2.0 compliant |
External Power Supply | No need |
Color | Black |
Sample | Allowed |
MOQ | 500 pcs |
Warranty | Two years |
OEM | Support |
Feature of FTDI Chip TTL-232R-5V USB to UART Cable:
1)Perfect for embedded systems that require a serial connection to a computer
2)Show up on any Windows computer as a standard serial COM port.
3)Any applications that talk to this COM port are automatically converted to USB and back to UART to your target board.
4)UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
5)+5V output allows external logic to be powered from the USB port
6)Compatible with WinXP, Vista, 7, 8, Windows 10, Server 2003, Server 2008 and Greater
Application of FTDI RS232 USB to 5V TTL 6Pin UART Cable:

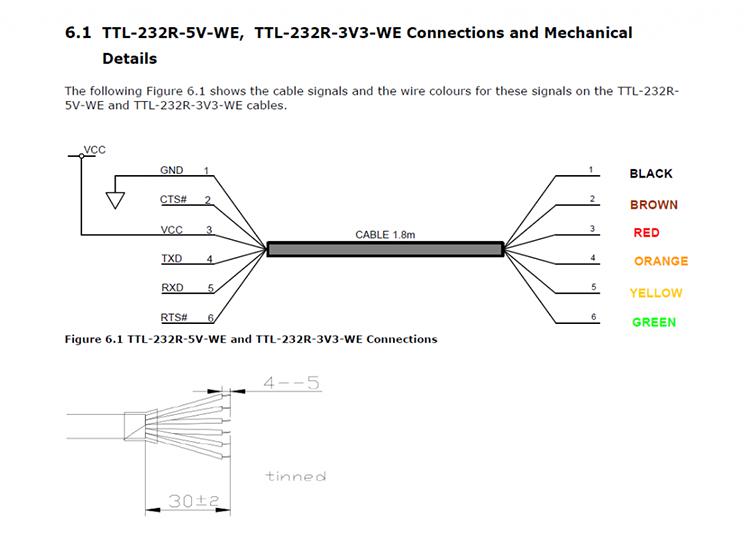

This TTL-232R-5V USB to TTL UART serial Cable is identical to FTDI's USB to TTL cable (TTL-232R-5V) with the same colour wires / pin out using a 6 Pin 2.54mm (0.1") Header, suitable for UHCI / OHCI / EHCI host controller.
Payment:
Shipment:
FAQ:
Q: Can we print our logo on your own products ?
A: Yes, allowed.
Q: How about shipment?
A:Express, Air shipment and Sea shipment are allowed.
Q: How long is your production time?
A: 10-15 working days for normal item, special item would be 20 days or longer.
Q: Is it possible to finish production around 7-10 days？
A: Yes, if urgent, we can apply for it.
Q: Can I send defective items to you directly?
A: We can calculate the fee after discussion.
Hot Tags: ttl-232r-5v usb to ttl uart serial cable, China, suppliers, manufacturers, factory, customized, wholesale, bulk, made in China
