Shenzhen Starte Technology Co., Ltd is one of the most reliable manufacturers and suppliers of usb 3.0 a female jack panel mount to male up angled cable in China. Please feel free to wholesale bulk high quality products made in China here from our factory. Customized orders are welcome.

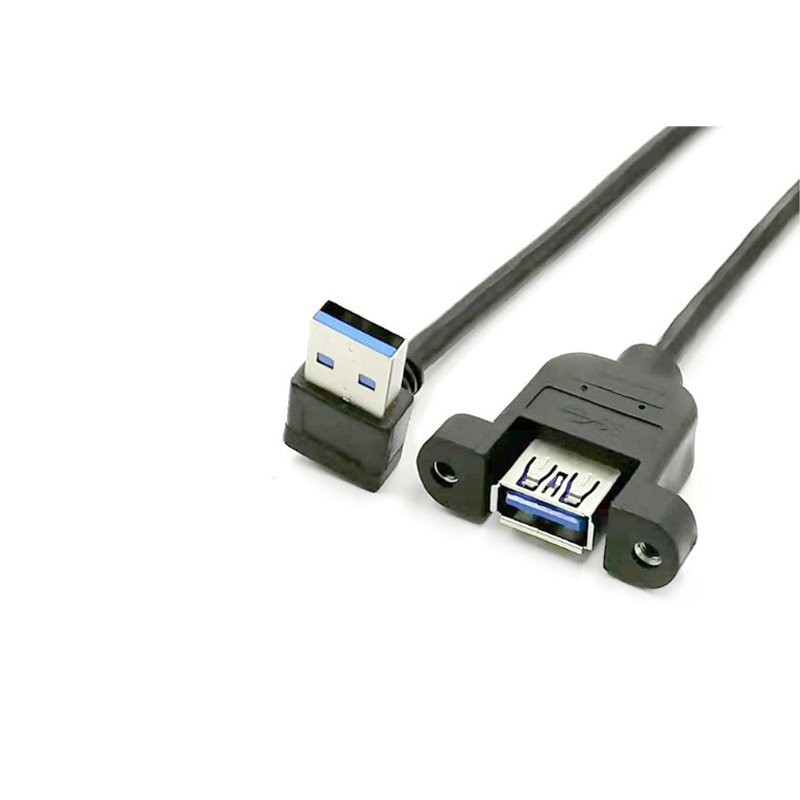

Starte USB 3.0 A Female Jack Panel Mount to Male Up Angled Cable. This Up Angle USB 3.0 Male to Female Cable with Screw Hole Lock can be mounted on a faceplate, a wall plate, or a bulkhead surface. Compatible with Oculus Rift, Play station, Xbox, HTC VIVE,Valve Index, Microsoft HoloLens VR headsets,USB Flash Drive.
Product Parameters of USB 3.0 Panel Mount A Female to Up Angle A Male Cord:
| Item | USB 3.0 A Female Jack Panel Mount to Male Up Angled Cable |
Brand | Starte |
Model No. | U3CA014 |
Cable Type | USB 3.0 A to A cable |
Connector 1 | Panel Mount USB 3.0 A female connector x 1 |
Connector 2 | Up Angle USB 3.0 A male connector x 1 |
Conductor plate | Gold Plated |
Connector plating | Nickle Plated |
Gender | Male to Female |
Wire | UL 28/26AWG/24AWG |
Conductor | BC,TC |
Pin layout | Standard |
Shielding | Al-foil and braid,Drain wire |
Jacket | PVC |
Color | Blue |
Sample | Allowed |
MOQ | 500 pcs |
Package | PE bags |
Warranty | Two years |
OEM | Support |
Feature of Up Angle USB 3.0 A male to A Female Panel Mount Cable:
1)90 degree Up angle USB 3.0 A male to panel mount A female elbow cable with screw holes
2)Screw holes can be fixed to the panel, provide more stable and longer connection
3)Ear Nut is suitable with M3 screw, distance of screw holes 29mm
4)Suitable for notebook, PC computer which need 90 degrees angles or space / corner restrictions.
Application of Up Angle USB 3.0 A Male to A Female Cable with Screw Hole:
This USB 3.0 A Female Jack Panel Mount to Male Up Angled Cable is prepared to be installed on a plate or in a specific socket in a metal box. Suitable for notebook, PC computer which need 90 degrees angles or space / corner restrictions.
