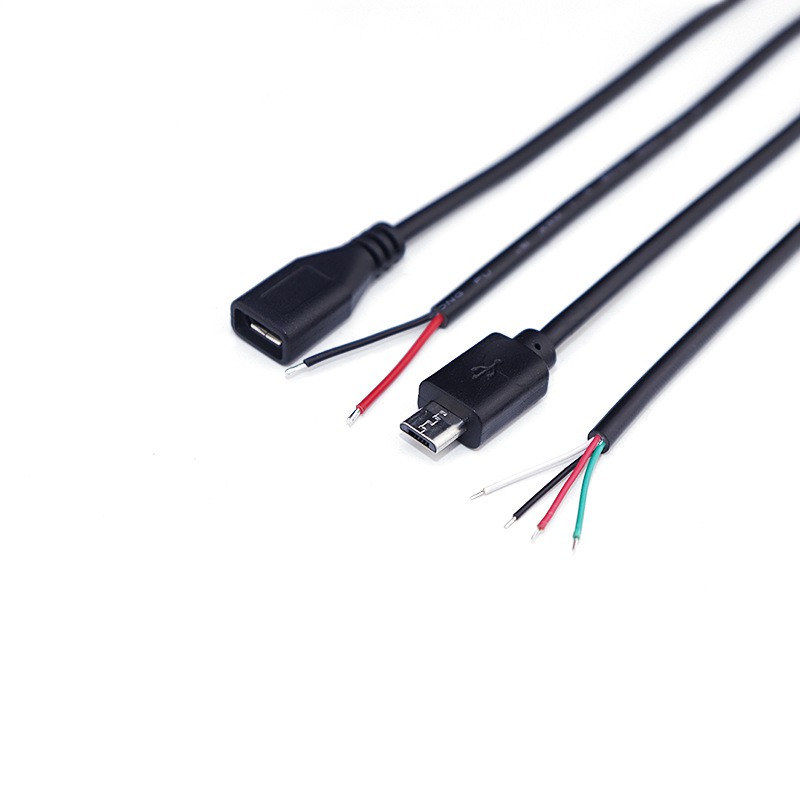

Starte makes 5 pin Micro USB2.0 to open end tinned Pigtail Cable, also named Micro USB2.0 5 pin Installed or Replace Repair DIY Cable. This Micro USB2.0 to Bare Wire Open End Cable commonly features a standard 5 pin Micro USB2.0 male connector or standard Micro USB2.0 5 pin female connector on a side, other side is 2 tinned wires or 4 tinned wires or 5 tinned wires, it depends on your depends. If you just need Micro USB2.0 to open end power charger cable, 2 wires is enough. If you need Micro USB2.0 to Power Data Charger DIY pigtail cable, 4 wires is necessary.
For 2 wires Micro USB2.0 5 pin male to open end pigtail Cable:
1.Connector: 2 Pin Micro USB2.0 male connector
2. Wire:28AWG/26AWG/24AWG/22AWG*2C copper wire, depends on your demand
3. Pin connection: red wire is the positive + and the black wire is the negative
4. Tinned wire can be soldered easily with related micro USB2.0 power supply equipment
5. Just support Power charger function, data transfer is not supported
6. Suitable with device that equipped with Micro USB2.0 port, such as Raspberry Pi ,Arduino, LED desk lamp, USB fan, circuit board, etc.

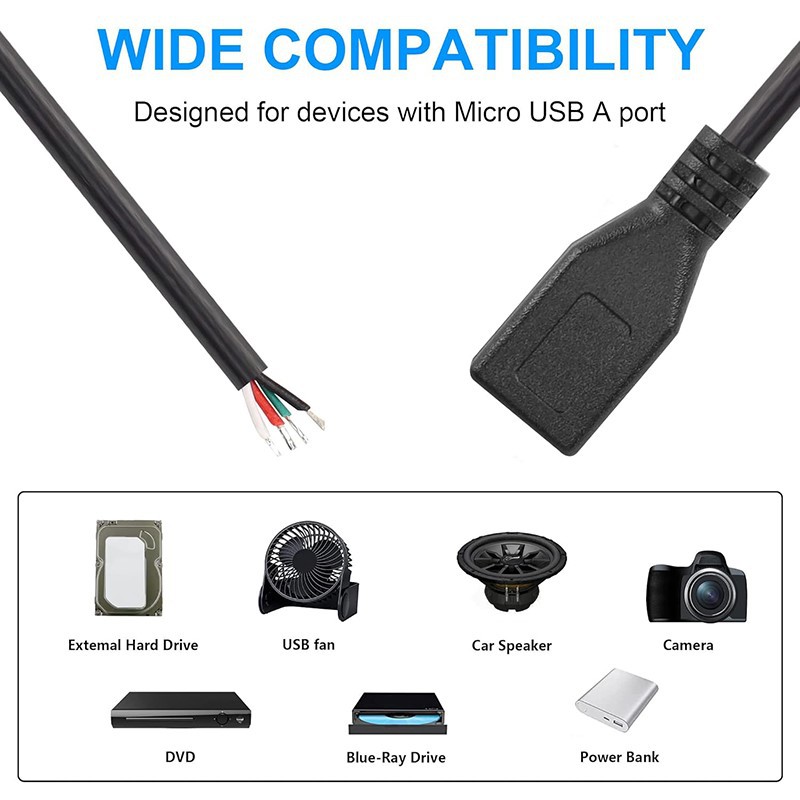

For 4Wires Micro USB2.0 female to Equipment Installed or Replace Repair DIY Cable:
1.Connector: 5 Pin Micro USB2.0 female connector
2.Wire: standard USB2.0 cable, 28AWG*1P+28AWG*2C+Al-foil+Braid, copper wire
3.Pin connection: RED(+5V.), BLACK(Ground), WHITE(Data-), GREY(Data+).
4.Support Power charger and high speed 480Mbps data transfer
5.Backward compatible with USB 1.0 & 1.1
6.Commonly used on low power electrical equipment around computer and various small appliances, such as PDAs, Digital Cameras, Digital Video Cameras and Portable Digital Players.
