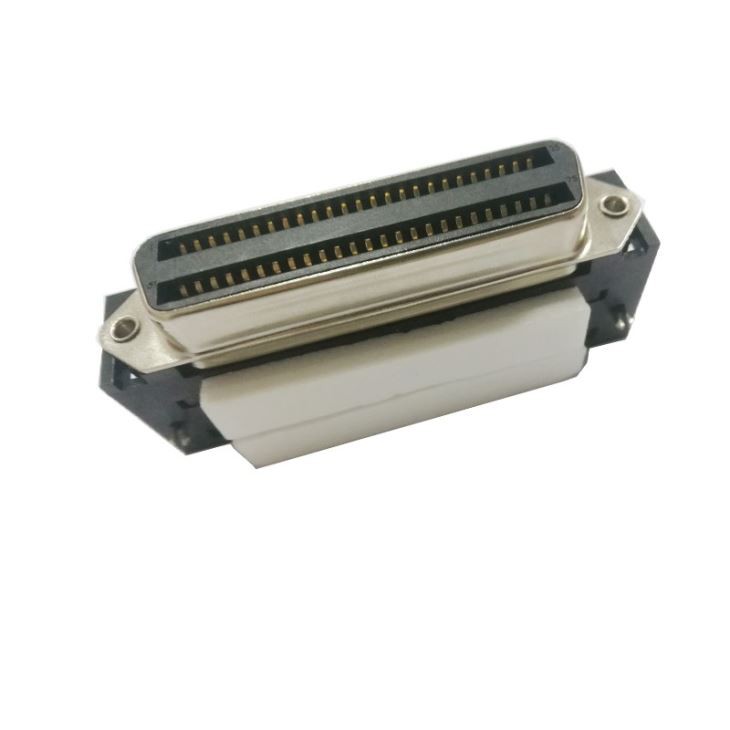

Starte AMP 957F10063B002 100 Pin female PCB Connector, This SCSI F 100 Pos 2.16mm Solder RA Thru-Hole 100 Terminal 1 Port Tray is I/O Connectors Micro-Pierce 957 Series, 2.16mm pitch, 100 position receptacle, right angle PCB through hole, with 4-40 threaded insert, with spring latch, with board locks, tail lengt 3.34mm, suitable for VDSL telecom equipment.
Product Parameters of AMP 957F10063B002 100 Position Receptacle Connector:
Item | AMP 957F10063B002 100 Pin female PCB Connector |
Brand | Starte |
Model No. | RTCD002 |
Product type | 100 pin female connector |
No. Of Contact | 100 pin |
Contact Type | Receptacle |
Options | Latchblocks |
Screw Size | 4-40 |
Mounting Type | Through Hole, Right Angle |
Contact Finishes | Gold Selective Plating |
MOQ | 1 PCS |
Sample | Free |
Package | Bags |
Warranty | Two years |
Technical Parameters of 2.16mm pitch 100 position receptacle PCB Connector:
Connector Material | |
Insulator | P.B.T& Glass-Fiber Reinforced UL-94-VO |
Pin Contacts | Phosphor bronze or brass gold plated |
Shell | Steel, Nickel Plated Over Copper |
Electrical Characteristics | |
Contact Current Rating | 5 Amp |
Dielectric Strength | 1000V for one minute |
Insulation Resistance | 1000MΩ/ Min (at 500V DC) |
Contact Resistance | 35mΩ /Max |
Operation Temperature | -55°C~+105°C |
Application of 957 series 100 POS 2.16mm Solder RA Thru-Hole Connector:
This AMP 957F10063B002 100 Pin female PCB Connector is suitable for VDSL telecom equipment, then connect with cable which use AMP 957M-100-2101 connector.
