Shenzhen Starte Technology Co., Ltd is one of the most reliable manufacturers and suppliers of amphenol 957 m1002101 2.16mm pitch 100 pin telco connector in China. Please feel free to wholesale bulk high quality products made in China here from our factory. Customized orders are welcome.

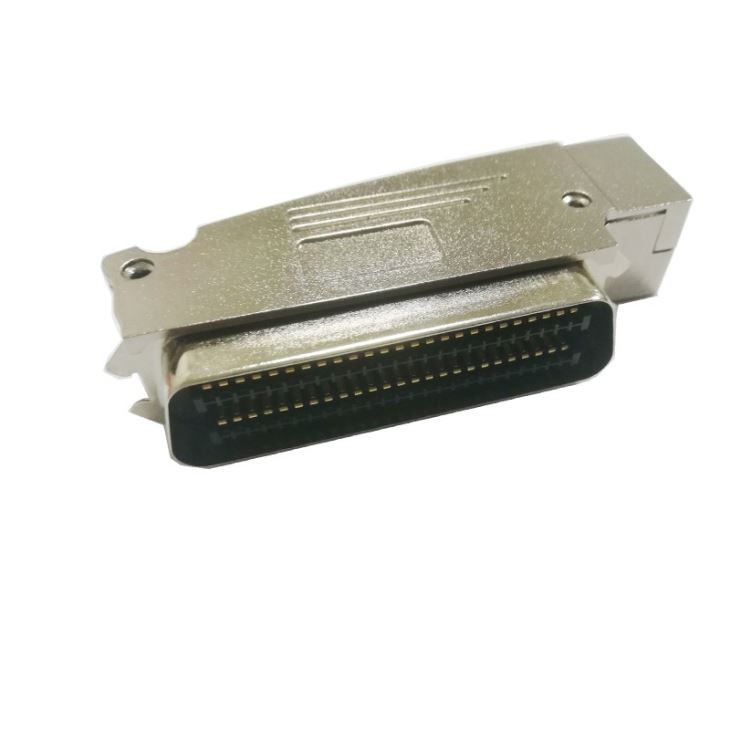

Starte Amphenol 957 M1002101 2.16mm pitch 100 Pin Telco Connector, This SCSI 100 POS 2.16mm IDT RA Cable Mount 100 Terminal 1 Port Tray is IDC type connector with right angle body orientation, This 90 degree 2.16mm pitch 100 pin Telco connector is suitable for Devices such as VDSL Teleccom Equipment, Communication Equipment, Computer terminal and Telco testing device.

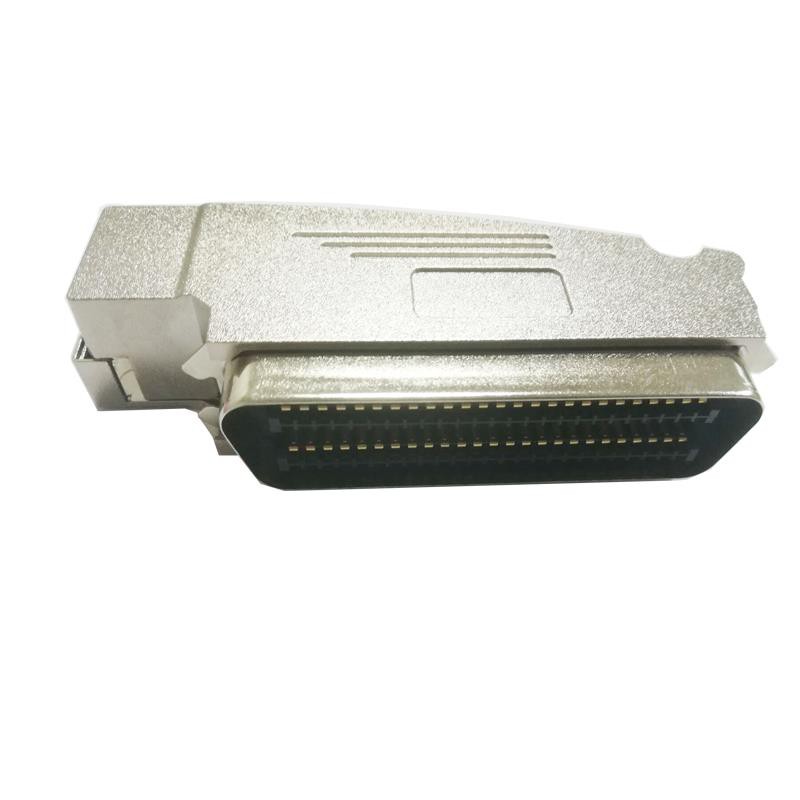

Product Parameters of AMP 957M1002101 100 pin IDC Connector:
Item | Amphenol 957 M1002101 100 pin IDC Male Connector |
Brand | Starte |
Model No. | RTCD001 |
Product type | 100 pin Telco connector |
No. Of Contact | 100 pin |
Contact Type | 100 pin connector |
Options | Latch clip |
Contact Finishes | Gold Selective Plating |
MOQ | 1 PCS |
Sample | Free |
Package | Bags |
Warranty | Two years |
Technical Parameters of 2.16mm pitch 100 pin ADSL IDC Connector:
Connector Material | |
Insulator | P.B.T& Glass-Fiber Reinforced UL-94-VO |
Pin Contacts | Phosphor bronze or brass gold plated |
Shell | Steel, Nickel Plated Over Copper |
Electrical Characteristics | |
Contact Current Rating | 5 Amp |
Dielectric Strength | 1000V for one minute |
Insulation Resistance | 1000MΩ/ Min (at 500V DC) |
Contact Resistance | 35mΩ /Max |
Operation Temperature | -55°C~+105°C |

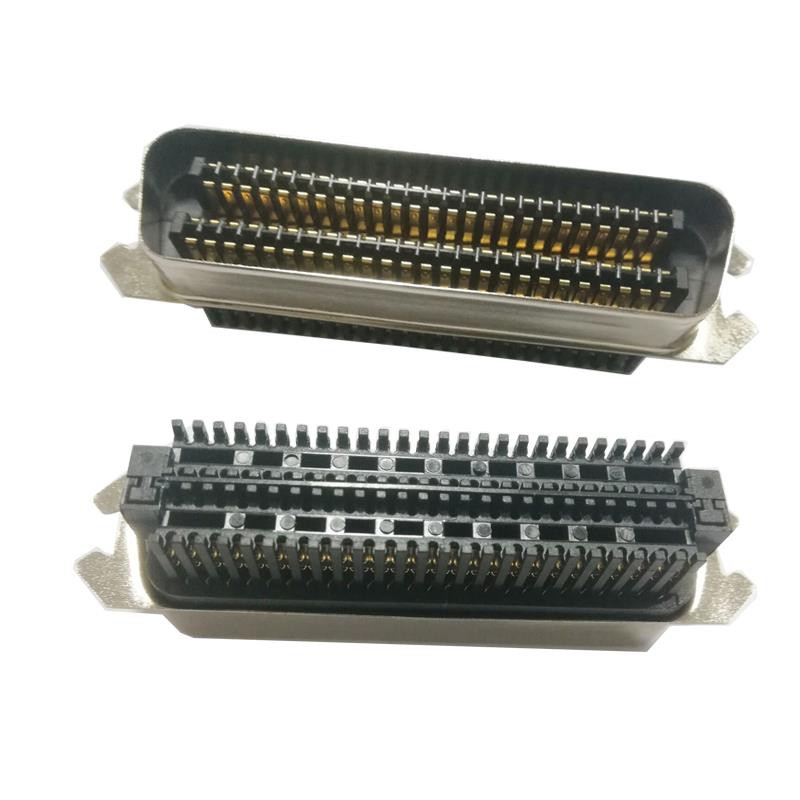

Application of 90 degree 2.16mm Pitch 100 pin IDC Male Connector:
This Amphenol 957 M1002101 2.16mm pitch 100 Pin Telco Connector is suitable for Devices such as VDSL Teleccom Equipment, Communication Equipment, Computer terminal and Telco testing device.
