Shenzhen Starte Technology Co., Ltd is one of the most reliable manufacturers and suppliers of hpcn 14 pin scsi servo connector with latch in China. Please feel free to wholesale bulk high quality products made in China here from our factory. Customized orders are welcome.

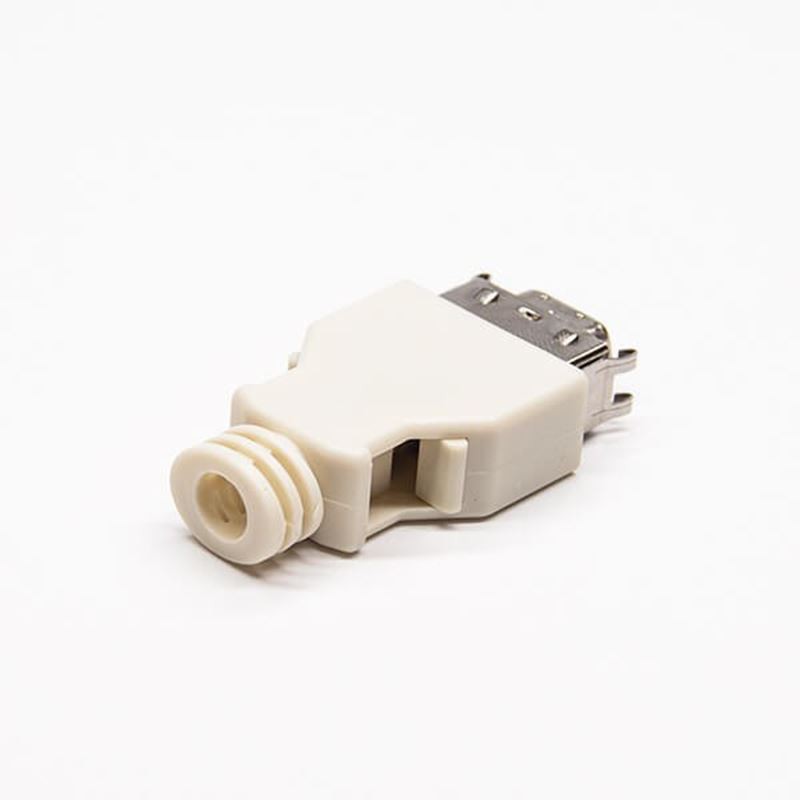

Starte Push button MDR14 Pin Plug SCSI Connector, this MDR 14 pin male SCSI Connector with Latches is used with standard SCSI 14 pin shielded wire (Starte UL2990 28AWG*7 Pairs+Al-foil+Braid+Drain wire), and locked by latch clip, not screw. This MDR 14 pin male connector is copmptiable with Servers machines and Drive enclosures equipments which equipped with MDR14 pin female connector.
Product Parameters of Solder Type CN14 pos SCSI Connector:
| Item | Push button MDR14 Pin Plug SCSI Connector |
Brand | Starte |
Product type | 14 Pin SCSI Connector |
No. Of Contact | 14 pin |
Model No. | SCCA005 |
Contact Type | Solder Type 1.27mm cable receptacles Connector |
Shell Color | Beige, Black is supported |
Options | Male, latch, Assembly |
Wire | UL2990 28AWG*7 Pairs+Al-foil+Braid+Drain wire |
Contact Finishes | 5u Gold Selective Plating |
MOQ | 1 PCS |
Sample | Free |
Package | Bags |
Warranty | Two years |
Technical Parameters of Mini D Ribbon 14 Pin Connector with latch clip:
| Connector Material | |
Housing | Plastic Thermoplastic P.B.T UL94V-0, Black |
Contacts | Copper Alloy Gold Selective Plated |
Front Shell | Steel, Nickel Plated Over Copper |
Plastic Cover Material | |
Hood | Plastic Thermoplastic P.B.T UL94V-0 |
Inner Shell | Steel, Nickel Plated Over Copper |
Latch & Hood: | Stainless Steel & Plastic ABS UL94V-0 |
Entry Hood | Plastic ABS UL94V-0 |
Electrical Characterisitics | |
Contact Current Rating | 1.0 Amp |
Dielectric Withstanding Voltage | 500V AC |
Insulation Resistance | 500MΩ/ Min |
Contact Resistance | 35mΩ /Max |
Operation Temperature | -55°C~+105°C |
Application of MDR14 pin plug SCSI Solder Connector:
This CSI MDR14 pin cable Connector is copmptiable with Servers machines and Drive enclosures equipments which equipped with MDR14 pin female connector.
