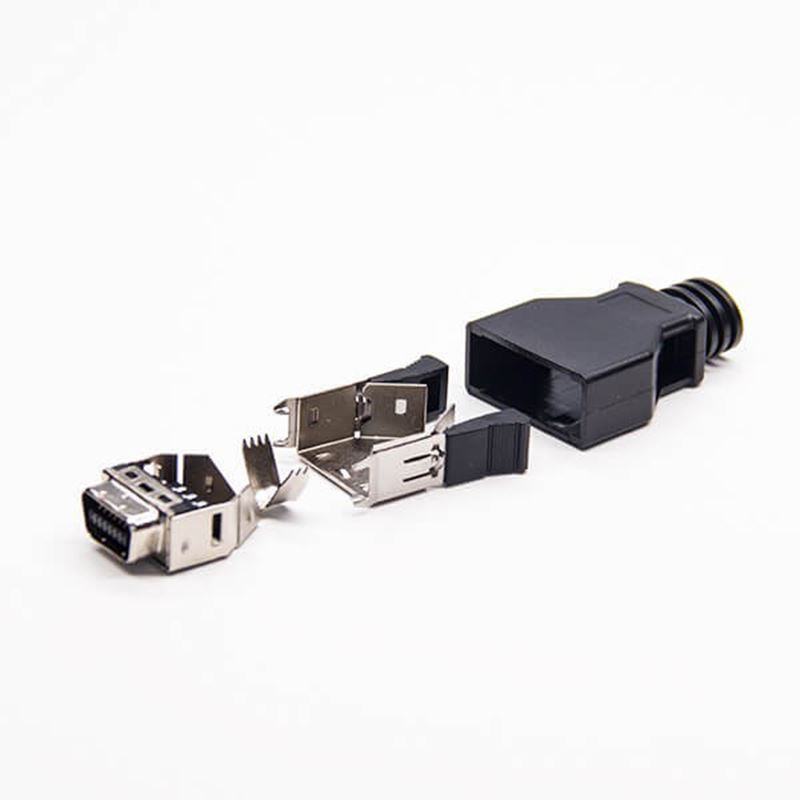

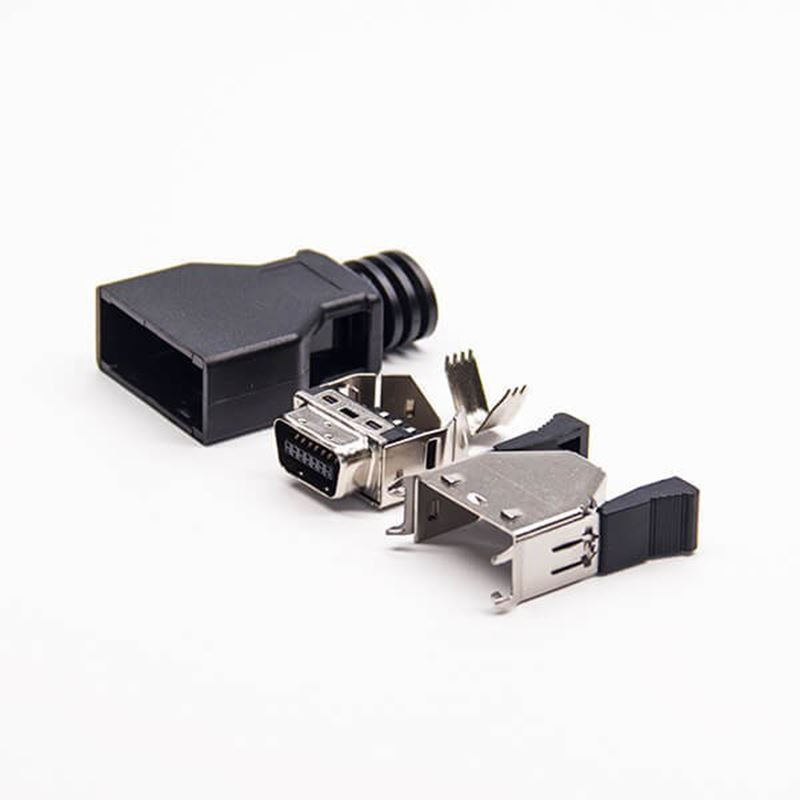

Starte HPCN 14 Pin SCSI Servo Connector with Latch and plastic shell, this 14 pin solder SCSI connector with plastic hood is solder type connector and locked by by latch clip, not by screw. Which is used with standard SCSI 14 pin shielded wire (Starte UL2990 28AWG*7 Pairs+Al-foil+Braid+Drain wire), then link SCSI Servo device, SCSI Hard Disk and other PCB board which equipped with SCSI 14 pin female connector.

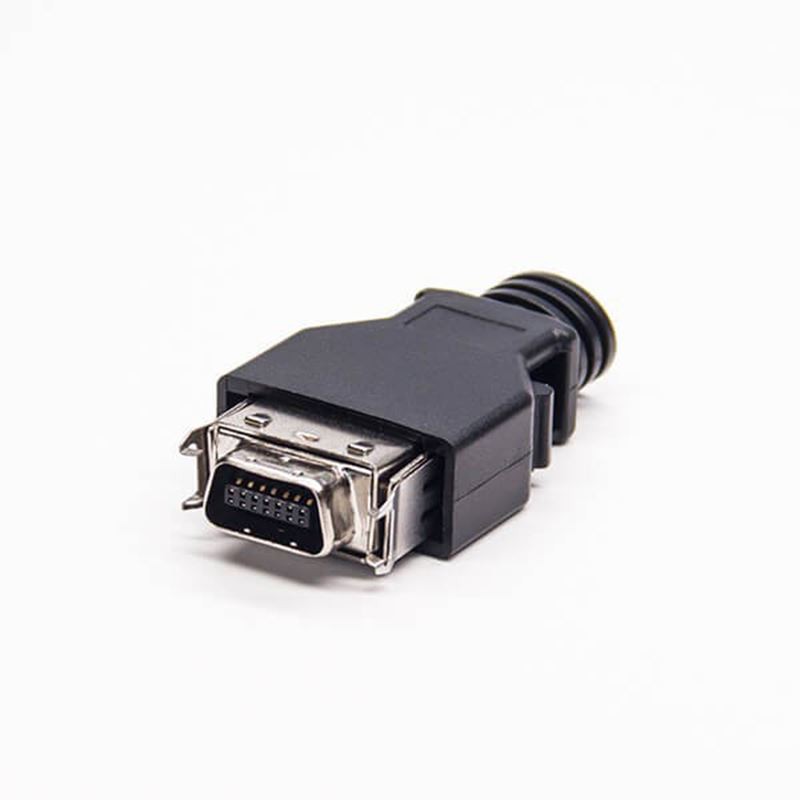

Product Parameters of MDR14 pin Connecto r with push botton:
| Item | HPCN 14 Pin SCSI Servo Connector with Latch |
Brand | Starte |
Product type | 14 Pin SCSI Connector |
No. Of Contact | 14 pin |
Model No. | SCCA004 |
Contact Type | Solder Type 1.27mm cable receptacles Connector |
Options | Male, latch, Assembly |
Wire | 28AWG or 30AWG support |
Contact Finishes | 5u Gold Selective Plating |
MOQ | 1 PCS |
Sample | Free |
Package | Bags |
Warranty | Two years |

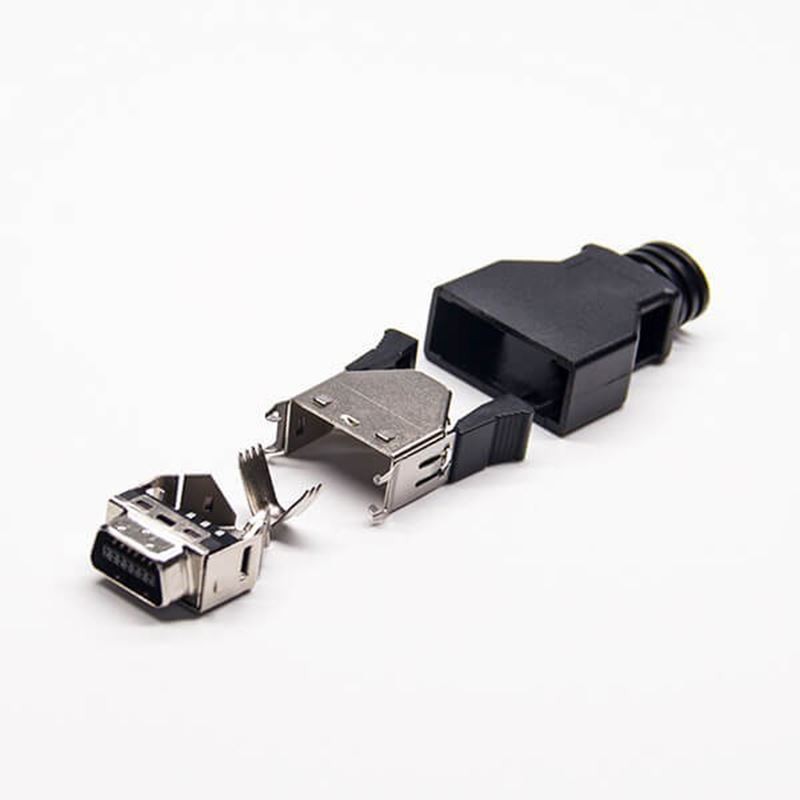

Technical Parameters of solder type MDR14 pin male SCSI Connector:
| Connector Material | |
Housing | Plastic Thermoplastic P.B.T UL94V-0, Black |
Contacts | Copper Alloy Gold Selective Plated |
Front Shell | Steel, Nickel Plated Over Copper |
Plastic Cover Material | |
Hood | Plastic Thermoplastic P.B.T UL94V-0 |
Inner Shell | Steel, Nickel Plated Over Copper |
Latch & Hood: | Stainless Steel & Plastic ABS UL94V-0 |
Entry Hood | Plastic ABS UL94V-0 |
Electrical Characterisitics | |
Contact Current Rating | 1.0 Amp |
Dielectric Withstanding Voltage | 500V AC |
Insulation Resistance | 500MΩ/ Min |
Contact Resistance | 35mΩ /Max |
Operation Temperature | -55°C~+105°C |
Application of SCSI Cen-Type 14 Pin Male Connector with latch clip:
This HPCN 14 pin SCSI solder Connector can be used with Starte with standard SCSI 14 pin shielded wire (Starte UL2990 28AWG*7 Pairs+Al-foil+Braid+Drain wire), then link SCSI Servo device, SCSI Hard Disk and other PCB board which equipped with SCSI 14 pin female connector.
