CN 20 Pin Female SCSI Connector

Starte CN 20pin female SCSI connector with clip for PCB, the connector pin arrangement in two rows, one on top of the other. The top row has 10 pins and the lower row has 10 pins. MDR 20 pin female connector with latch bracket is often used on PCB in Industrial equipment. It is similar with 3M...

Send InquiryChat Now
Product Details

Starte CN 20pin female SCSI connector with clip is also named MDR 20 pin female SCSI Solder connector. This MDR 20 pin female connector can be locked by screw or latch clip. It is similar with 3M Mini D Ribbon 20 pin female connector. Usually used to make a MDR 14pin female cable, then link scsi drive, Sanyo Denki YASKAWA servo.


Product Parameters of MDR 20 pin female Connector:

Item

MDR 20 pin female scsi connector with latch clip

Brand

Starte

Product type

SCSI cable and connector

No. Of Contact

20 pin

Contact Type

20 pin male scsi connector

Options

Female scsi connector, Latch Bracket

Contact Finishes

Gold Selective Plating

MOQ

1 PCS

Sample

Free

Package

Bags

Warranty

Two years

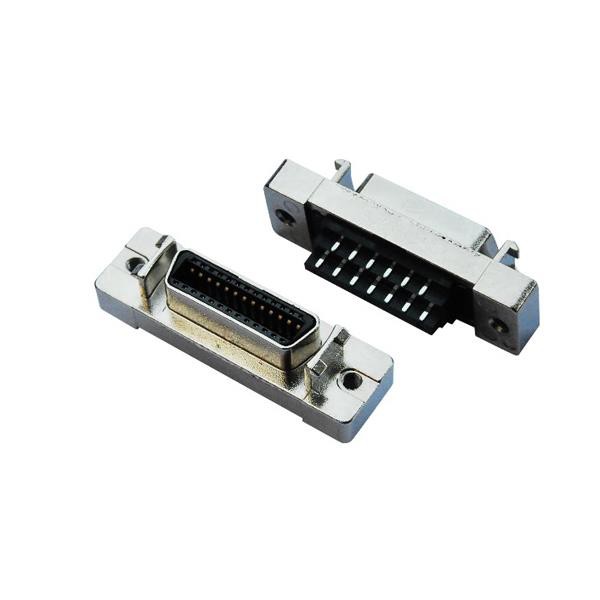

Straight CN Type MDR 20P female Cable Connector.jpg



Technical Parameters of 20 pin female MDR connector:

Connector Material

Housing

Plastic Thermoplastic P.B.T UL94V-0, Black

Contacts

Plastic Thermoplastic P.B.T UL94V-0, Black

Front Shell

Steel, Nickel Plated Over Copper

Cover&Holder

Plastic Thermoplastic P.B.T UL94V-0, Black

Electrical Charteristics

Contact Current Rating

1.0 Amp

Dielectric Withstanding Voltage

500V AC

Insulation Resistance

500MΩ/ Min

Contact Resistance

35mΩ /Max

Operation Temperature

-55°C~+105°C


Application of Mini D Ribbon 20 pin feamel connector:

This CN 20 Pin Female SCSI Connector can be used to make a MDR 20 pin cable, then connect scsi drive, Sanyo Denki YASKAWA servo. It is an ideal replacement for Panasonic/MITSUBISHI/Matsushita Yaskawa CN1 Connector 3M 10314 SCSI 20P servo driver, it will help you save cost.


Shipment:

SCSI 20P female solder connector.jpg


FAQ:

Q: Are you trading company or manufacturer?

A: We are trading company with long term cooperation factories.


Q: Do you have stock products to sell?

A: Some items have small quantity in stock.


Q: What’s your main products?

A: SCSI Connector and cable, Serial cable, Networking cable for automatic equipment.


Q:Which level of quality are your products?

A:We have got CE, FCC certificate so far.


Q: What kind of material you use?

A: High quality ABS plastic, PVC, PVC+Nylon mesh, Copper (optional)


Our Service:

1.We supply OED&ODM service.

2.Custom products and packing as per customer's request.

3.Samples for quality test are available, but we kindly ask you to pay for samples and the freight.

4.We supply quickly delivery time. Small goods have stock, lots qty, its about 15-30days.

5.We can supply drop shipping, and help customers to supply cheapest and economic Express shipment for small qty.

6.if you have any questions or need help, please let us know at any time, we will try our best to provide service.


Who we are:

Starte Precision Electronic Co., Ltd is a company of people with a common interest of providing Electronic peripheral cable products and services that help other people accomplish great things in the fields of science, manufacturing,Networking Telecommunications, automation and others.

We understands that the path to success is through the success of the customer, and the customers all want to accomplish something great. The field of Electronic peripheral cable covers so many different applications and markets it is often difficult to grasp the magnitude, and the selection of data cable for a project can be critical. Starte understands this and is honored when a customer chooses Starte to participate in their journey.


Our Business Scope:

Starte has been a professional manufacturer, specialized in researching, developing, producing and selling cables such as USB to RS232/RS485/rs422 Cable, USB 2.0/3.0 Extension cable with chipset, USB to SATA/IDE Cable , Displayport/ HDMI/ VGA/DVI cable, SCSI cable, Serial Cable,etc

Up to now, our products have been exported to over 30 countries in Europe, North America, Asia, Australia, South Americ, Especially in USA, Japan, France and German. They have won a good reputation in both domestic and international markets.


Hot Tags: CN 20 pin female SCSI connector, suppliers, manufacturers, factory, customized
