Shenzhen Starte Technology Co., Ltd is one of the most reliable manufacturers and suppliers of 0.8mm vhdci 26 pin male scsi connector in China. Please feel free to wholesale bulk high quality products made in China here from our factory. Customized orders are welcome.

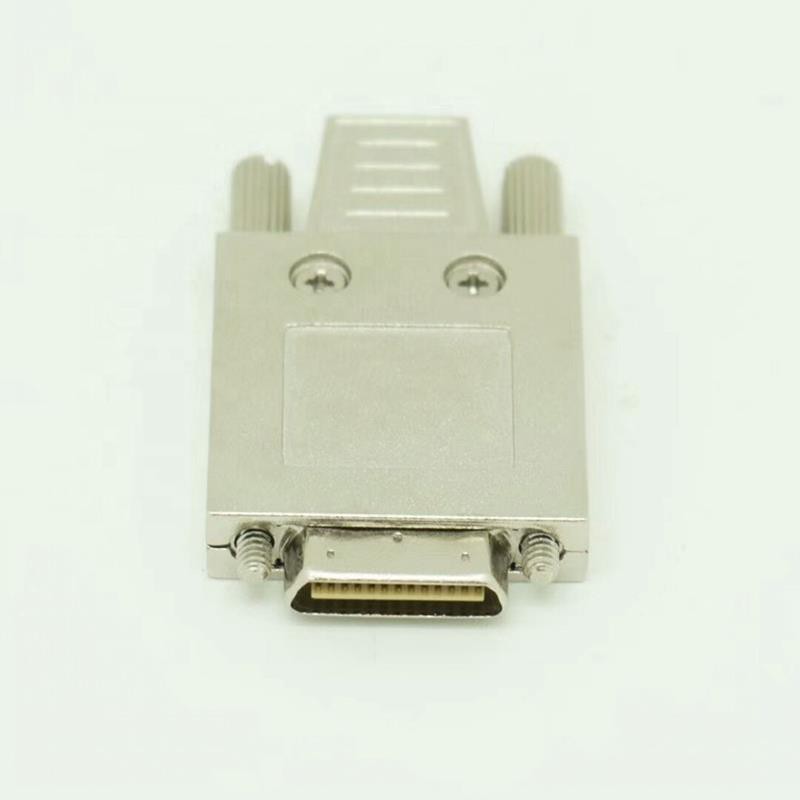

Starte 0.8mm VHDCI 26 pin male SCSI Connector, This 26 pin 0.8mm pitch VHDCI SCSI Connector with metal hood pin arrangement is in two rows, each row has 13 pins. It is used on the Industrial equipment PCB or PCI break out board with VHDCI 26 pin female connector.
Product Parameters of VHDCI 26 position male SCSI Connector:
| Item | 0.8mm VHDCI 26 pin male SCSI Connector |
Brand | Starte |
Model No. | SCCC008 |
Product type | SCSI connector |
No. Of Contact | 26 pin |
Contact Type | VHDCI 26 pin connector |
Options | Screw |
Threaded Finishes | M2.0 |
Contact Finishes | Gold Selective Plating |
MOQ | 1 PCS |
Sample | Free |
Package | Bags |
Warranty | Two years |
Technical Parameters of Ultra Thin VHDCI 26 pin Connector:
| Connector Material | |
Housing | Plastic Thermoplastic P.B.T UL94V-0, Black |
Contacts | Copper Alloy Gold Selective Plated |
Front Shell | Steel, Nickel Plated Over Copper |
Screw | Zinc Alloy, Nickel Plated Over Copper |
Electrical Characteristics | |
Contact Current Rating | 0.5 Amp |
Dielectric Withstanding Voltage | 150V AC |
Insulation Resistance | 500MΩ/ Min |
Contact Resistance | 35mΩ /Max |
Operation Temperature | -55°C~+85°C |
Application of VHDCI 26 pin plug Connector:
This 0.8mm VHDCI 26 pin male SCSI Connector is not 1.27mm pitch SCSI Serial Connector, it is 0.8mm pitch serial SCSI Connector, it is used on the Industrial equipment PCB or PCI break out board with VHDCI 26pin female connector.
FAQ:
Q: Can I finish payment after we received goods?
A: For long terms business, it is allowed.
Q: What is the after-sale service?
A: Two year warranty and professional technology person to solve your matters.
Q: What is the minimum order quantity (MOQ) ?
A: Common items should be 500PCS, Special ones should be 100PCS.
Q: How about package?
A: Normal is neutral PE bags for each items. Blister box and Color Box are supported.
Q: How long is your production time?
A: 10-15 working days for normal item, special item would be 20 days or longer.
