Shenzhen Starte Technology Co., Ltd is one of the most reliable manufacturers and suppliers of idc type 1.0mm pitch vhdci 26 pin male connector in China. Please feel free to wholesale bulk high quality products made in China here from our factory. Customized orders are welcome.

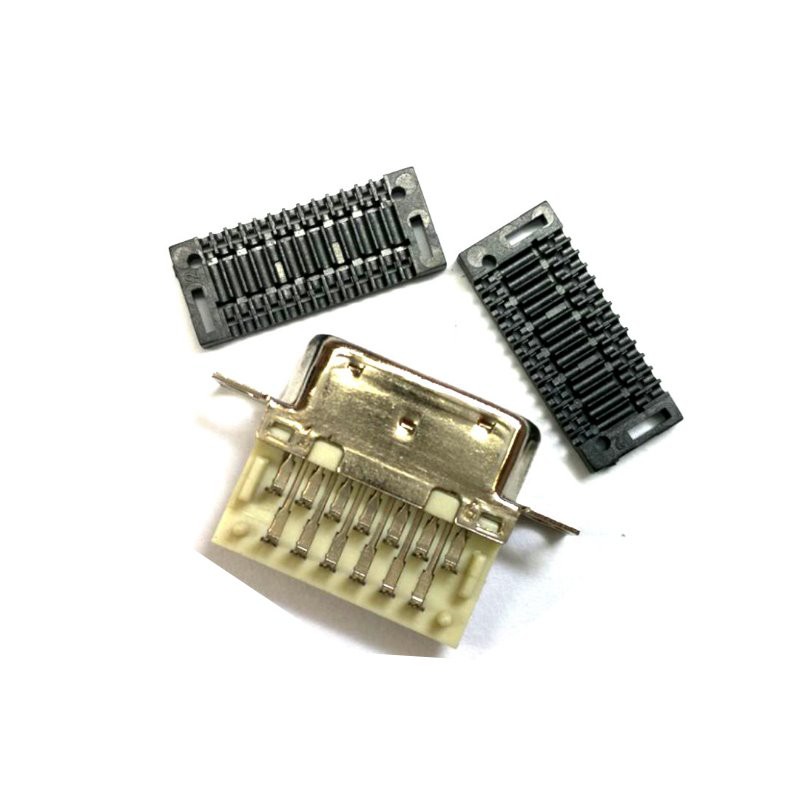

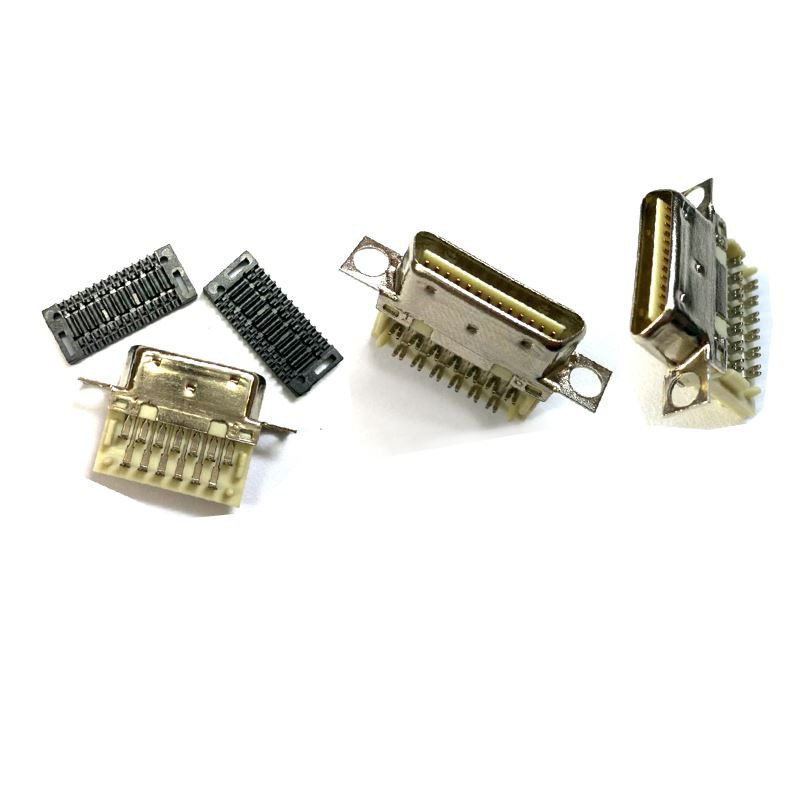

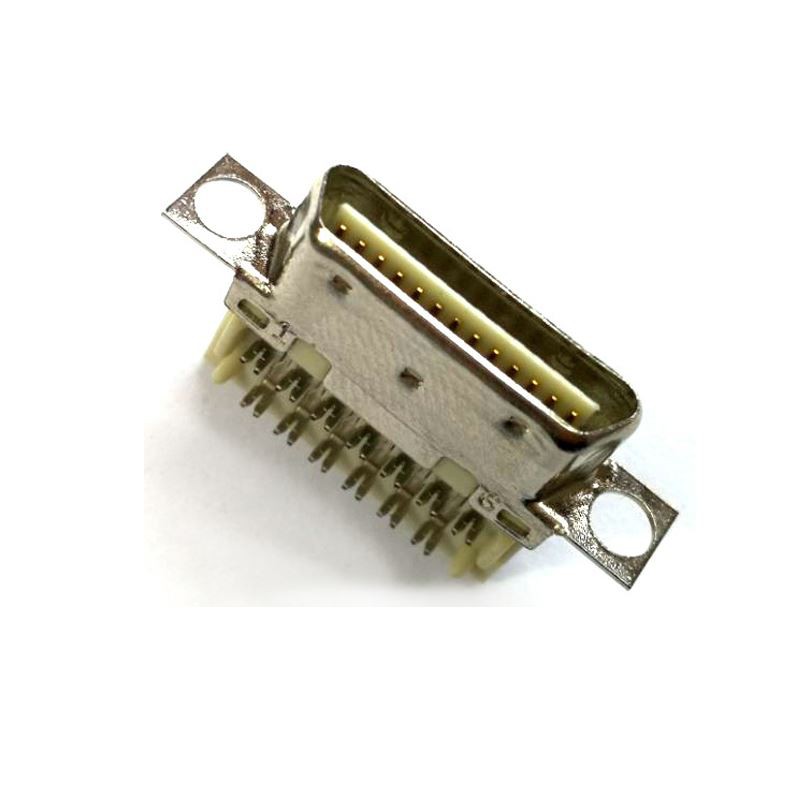

Starte IDC type 1.0mm Pitch VHDCI 26 Pin Male Connector, the 1.0mm Pitch VHDCI 26 pin plug SCSI IDC Connector pin is arranged in two rows, each row has 13 pin.This VHDCI 26 pin connector is usually used with Standard SCSI 26 pin shieled wire(Ours is UL2990 28AWG*13 Pairs+Al-foil+Braid+Drain wire), and compatible with File Servers / Networking Equipment.

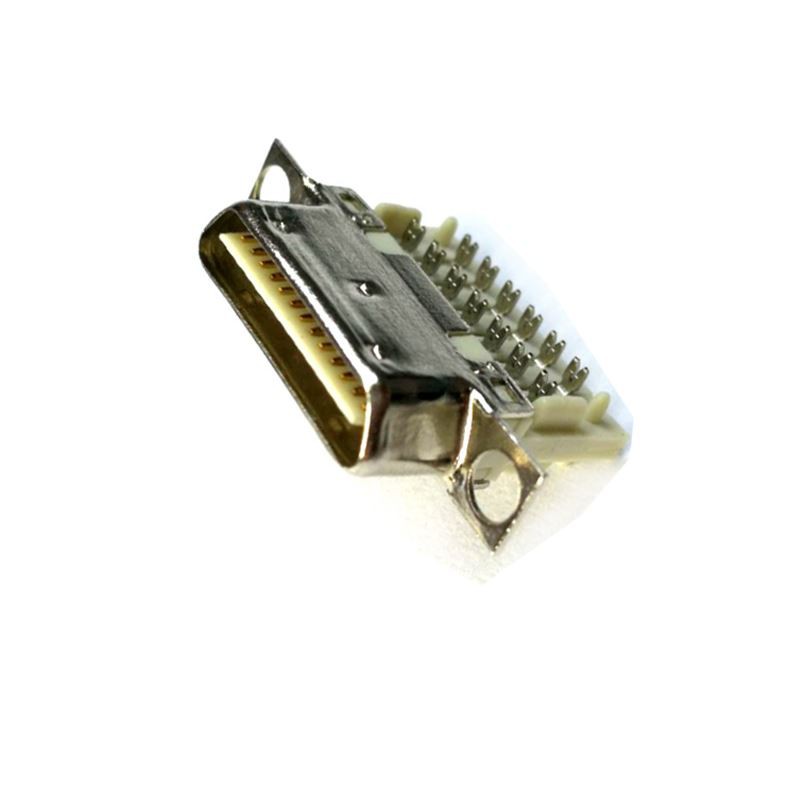

Product Parameters of Pitch 1.0mm VHDCI 26 pin male Connector :
| Item | IDC type 1.0mm Pitch VHDCI 26 Pin Male Connector |
Brand | Starte |
Model No. | SCCC012 |
Product type | 26 Pin SCSI Connector |
No. Of Contact | 26 pin |
Contact Type | 1.00mm cable receptacles Connector IDC Type |
Options | Screw |
Wire | UL2990 28AWG*13 Pairs+Al-foil+Braid+Drain wire |
Contact Finishes | Gold Selective Plating |
MOQ | 1 PCS |
Sample | Free |
Package | Bags |
Warranty | Two years |
Technical Parameters of VHDCI26P Ribbon Type Metal Plug Connector:
| Connector Material | |
Housing | Plastic Thermoplastic P.B.T UL94V-0, Black |
Contacts | Copper Alloy Gold Selective Plated |
Front Shell | Steel, Nickel Plated Over Copper |
Cover&Holder | Plastic Thermoplastic P.B.T UL94V-0, Black |
Inner Shell | Steel, Nickel Plated Over Copper |
Electrical Characterisitics | |
Contact Current Rating | 1.0 Amp |
Dielectric Withstanding Voltage | 500V AC |
Insulation Resistance | 500MΩ/ Min |
Contact Resistance | 35mΩ /Max |
Operation Temperature | -55°C~+105°C |
Application of 1.0mm Pitch 26 pin VHDCI male SCSI Connector:
This IDC type 1.0mm Pitch VHDCI 26 Pin Male Connector is usually used with Standard SCSI 26 pin shieled wire(Ours is UL2990 28AWG*13 Pairs+Al-foil+Braid+Drain wire), and compatible with File Servers / Networking Equipment.
