Shenzhen Starte Technology Co., Ltd is one of the most reliable manufacturers and suppliers of pitch 1.0mm 90 degree vhdci26 pin female connector in China. Please feel free to wholesale bulk high quality products made in China here from our factory. Customized orders are welcome.

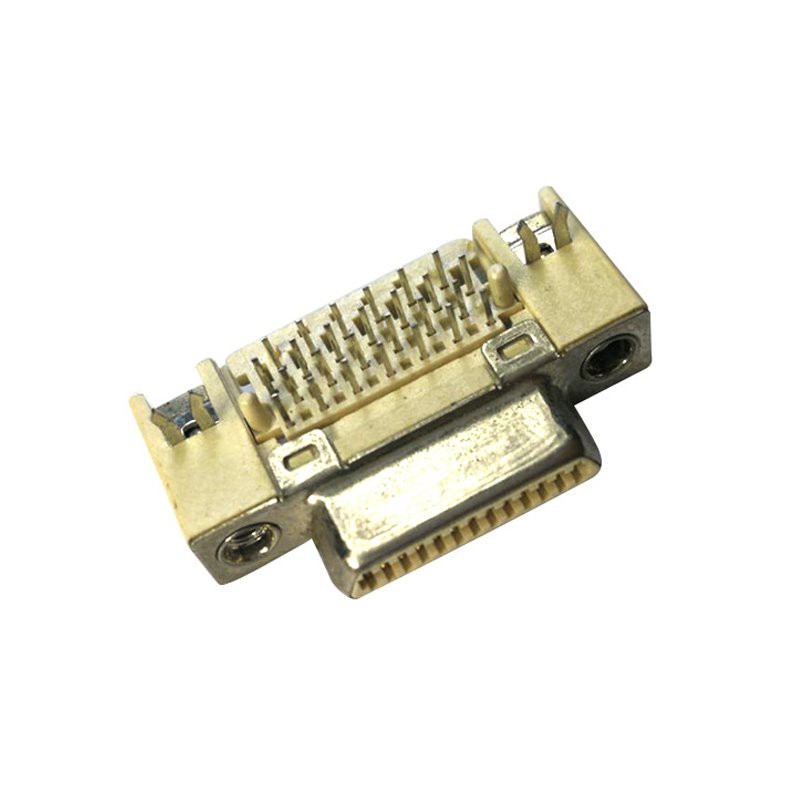

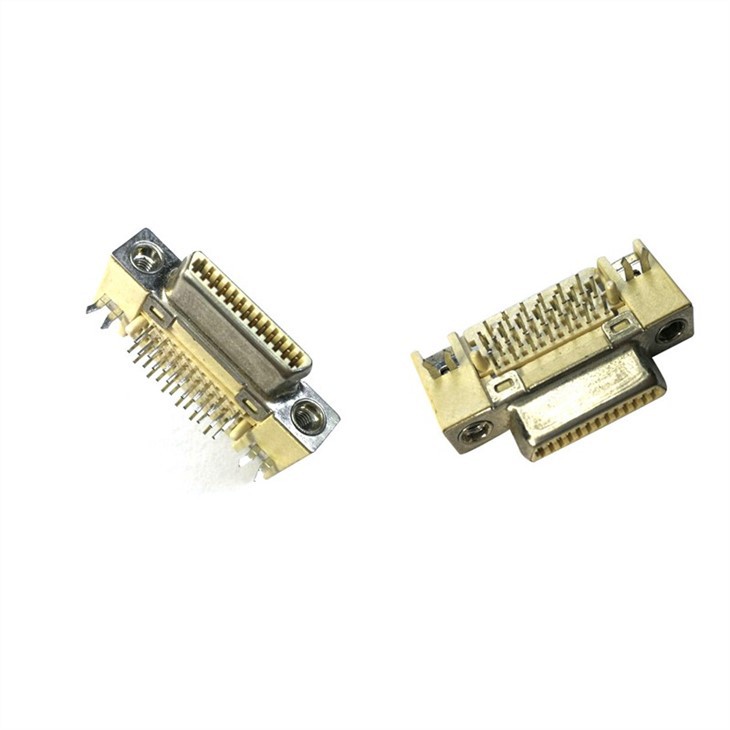

Starte Pitch 1.0mm 90 Degree VHDCI26 pin Female Connector, This 90 degree VHDCI 26Pin Female SCSI PCB Connector is 1.0mm pitch VHDCI connector, not common 0.80mm pitch VHDCI Connector, commonly used on communications industry and Telecom Industry.

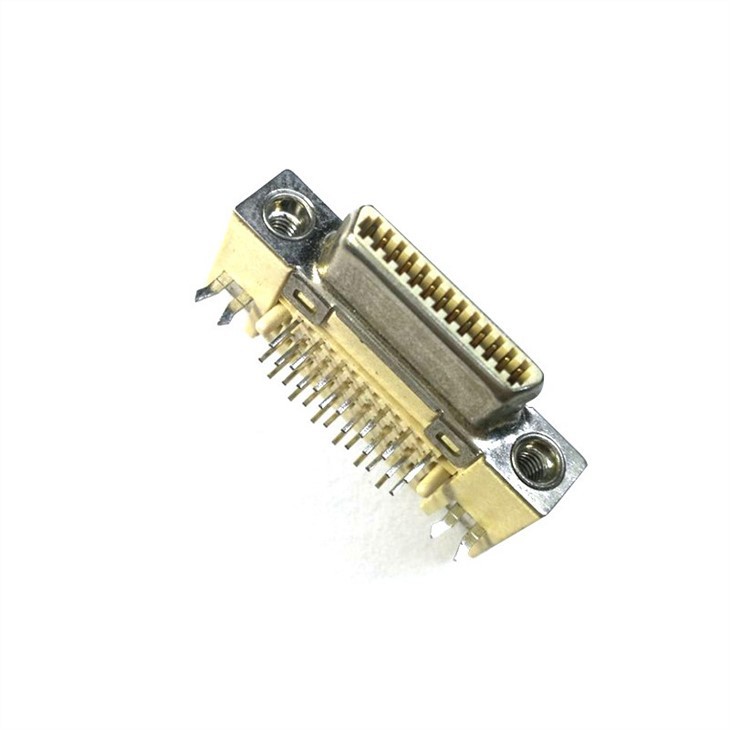

Product Parameters of PCB Mount 90 degree VHDCI 26 pin Connector:
| Item | Pitch 1.0mm 90 Degree VHDCI26 pin Female Connector |
Brand | Starte |
Model No. | SCCC014 |
Product type | 26 Pin SCSI Connector |
No. Of Contact | 26 pin |
Contact Type | VHDCI 26 pin connector |
Options | Screw |
Threaded Finishes | M2.0 |
Contact Finishes | Gold Selective Plating |
MOQ | 1 PCS |
Sample | Free |
Package | Bags |
Warranty | Two years |
Technical Parameters of Right Angle VHDCI 26 Pin SCSI Socket Connector:
| Connector Material | |
Housing | Plastic Thermoplastic P.B.T UL94V-0, Black |
Contacts | Copper Alloy Gold Selective Plated |
Front Shell | Steel, Nickel Plated Over Copper |
Bracket | Steel, Nickel Plated Over Copper |
Board Lock | Copper Tin Plated Over Copper |
Electrical Characteristics | |
Contact Current Rating | 0.5 Amp |
Dielectric Withstanding Voltage | 150V AC |
Insulation Resistance | 500MΩ/ Min |
Contact Resistance | 35mΩ /Max |
Operation Temperature | -55°C~+85°C |
Application of 1.0mm pitch 90 degree VHDCI 26 pin female Connector:
This Pitch 1.0mm 90 Degree VHDCI26 pin Female Connector is 1.0mm pitch VHDCI connector, not common 0.80mm pitch VHDCI Connector, commonly used on communications industry and Telecom Industry.
