Shenzhen Starte Technology Co., Ltd is one of the most reliable manufacturers and suppliers of 90 degree mdr36 pin female pcb connector in China. Please feel free to wholesale bulk high quality products made in China here from our factory. Customized orders are welcome.

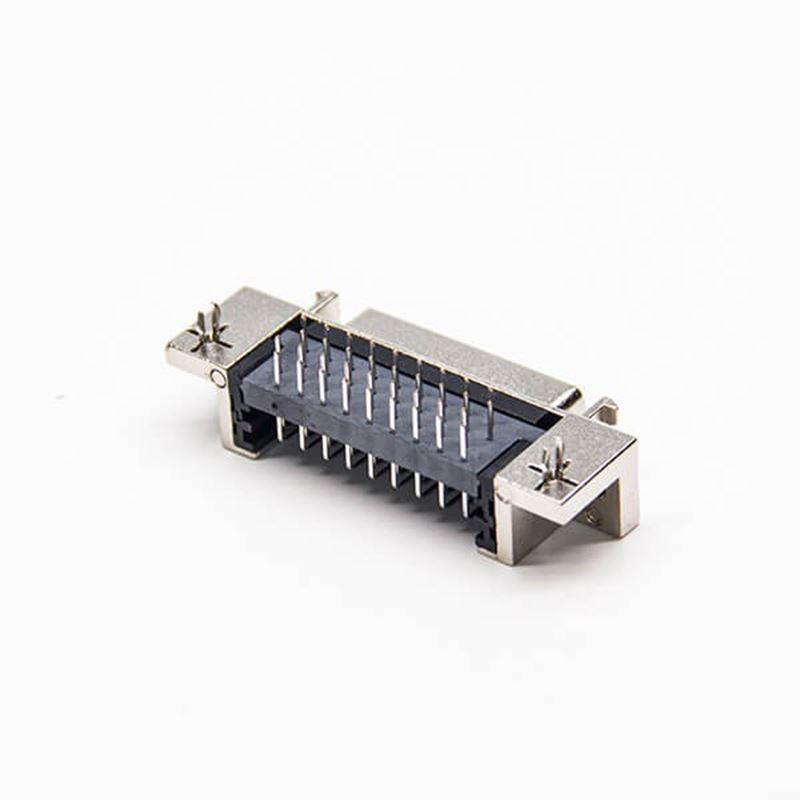

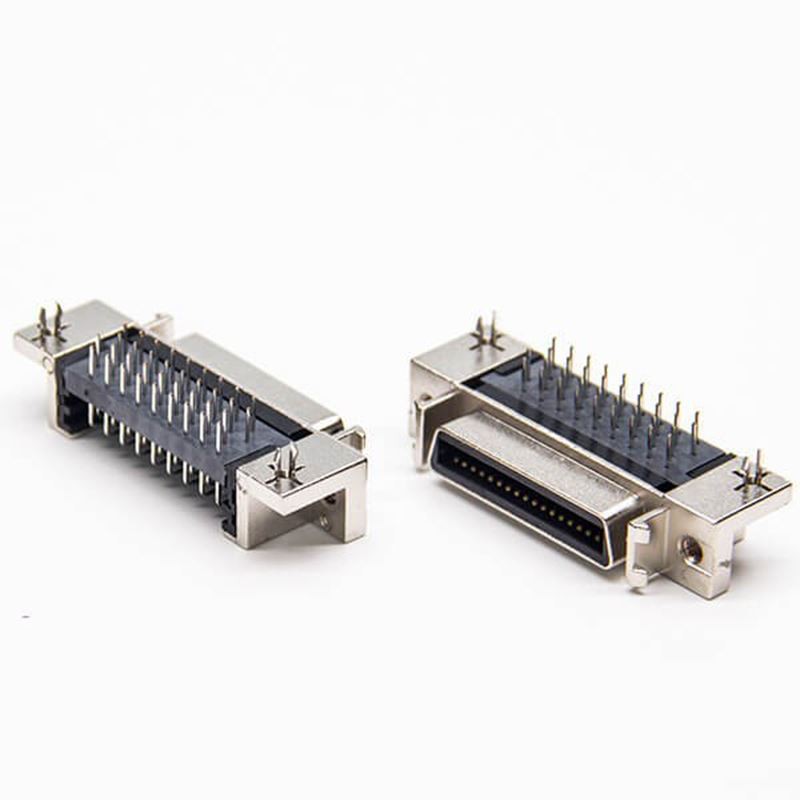

Starte 90 degree MDR36 Pin Female PCB Connector with latch bracket, the MDR 102 36 Way Right Angle D-sub Connector Socket have a 0.050 inch (1.27 mm) pitch, and has 18 pins arrangement in two rows, This DIP type MDR36 pin female connector is often used on SCSI CN 36 Pin Servo Breakout Board and Parallel Printer Device.

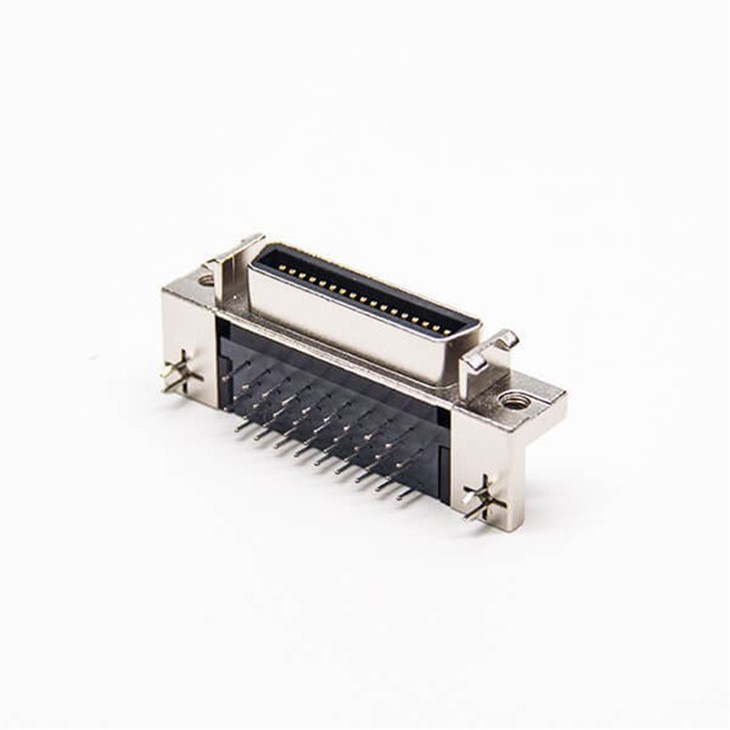

Product Parameters of 10236-5212PL MDR36 Pin Female Connector:
| Item | 90 degree MDR36 Pin Female PCB Connector |
Brand | Starte |
Brand No. | SCCD012 |
Product type | 36 Pin SCSI Connector |
No. Of Contact | 36 pin |
Contact Type | 1.27mm Header right angle Mount type connector |
Options | Latch Bracket |
Threaded Finishes | M2.6 |
Contact Finishes | Gold Selective Plating |
MOQ | 1 PCS |
Sample | Free |
Package | Bags |
Warranty | Two years |
Technical Parameters of 90 degree SCSI MDR 36Pin Female DIP Connector:
| Connector Material | |
Housing | Plastic Thermoplastic P.B.T UL94V-0, Black |
Contacts | Copper Alloy Gold Selective Plated |
Front Shell | Steel, Nickel Plated Over Copper |
Bracket | Steel, Nickel Plated Over Copper |
Board Lock | Copper Tin Plated Over Copper |
Electrical Characterisitics | |
Contact Current Rating | 0.5 Amp |
Dielectric Withstanding Voltage | 150V AC |
Insulation Resistance | 500MΩ/ Min |
Contact Resistance | 35mΩ /Max |
Operation Temperature | -55°C~+85°C |

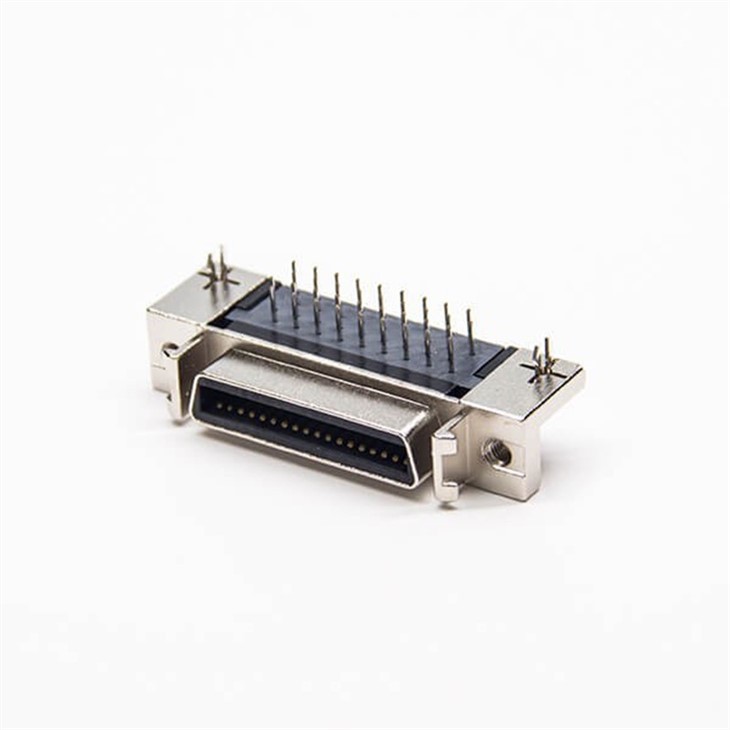

Application of Right angle MDR36 pin Female Connector with Harpoon:
This 90 degree MDR36 Pin Female PCB Connector is often used on SCSI CN 36 Pin Servo Breakout Board and Parallel Printer Device.
