Vertical MDR 36 Pin Female Connector

Starte Vertical MDR 36 pin female connector, this Mini D ribbon 36 female connector pin arrangement in two rows, one on top of the other. The top row has 18 pins and the lower row has 18 pins. It is similar with Mini Delta Ribbon 36 pin connecot and used on the Industrial equipment PCB,...

Send InquiryChat Now
Product Details

Starte Vertical MDR 36 pin female connector, this Mini D ribbon 36 female connector pin arrangement in two rows, one on top of the other. The top row has 18 pins and the lower row has 18 pins. It is similar with Mini Delta Ribbon 36 pin connecot and used on the Industrial equipment PCB, especially Scsi Servo, SCSI disk and motion controller.


Product Parameters of MDR 36 pin female PCB connector:

Item

SCSI CN 36 pin female connector with clip

Brand

Starte

Product type

SCSI cable and connector

No. Of Contact

36 pin

Contact Type

1.27mm Headers Vertical Mount type connector

Options

Latch Bracket

Threaded Finishes

M2.6

Contact Finishes

Gold Selective Plating

MOQ

1 PCS

Sample

Free

Package

Bags

Warranty

Two years

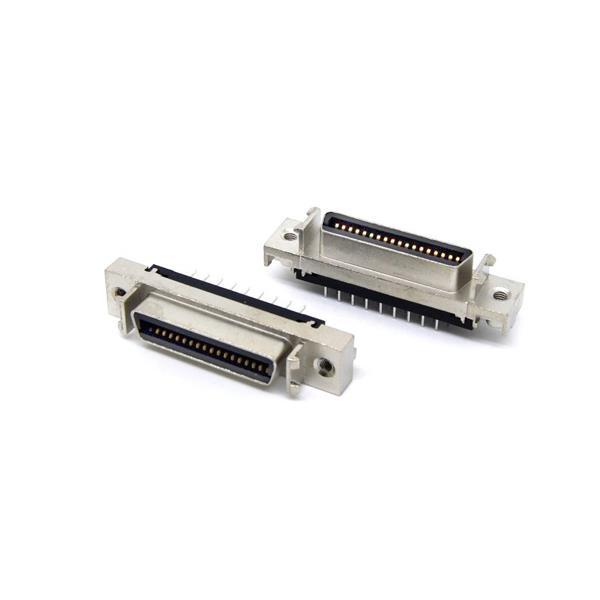

Headers Vertical Mount SCSI MDR 36 pin female connector for PCB.jpg

Technical Parameters of CN 36 pin female PCB Connector:

Connector Material

Housing

Plastic Thermoplastic P.B.T UL94V-0, Black

Contacts

Copper Alloy Gold Selective Plated

Front Shell

Steel, Nickel Plated Over Copper

Bracket

Zinc Alloy, Nickel Plated Over Copper

Electrical Characterisitics

Contact Current Rating

0.5 Amp

Dielectric Withstanding Voltage

150V AC

Insulation Resistance

500MΩ/ Min

Contact Resistance

35mΩ /Max

Operation Temperature

-55°C~+85°C

Application:

1)motion controller, PCIx card
2)Servers machines and Drive enclosures equipments,
3)connector for scsi drive, Sanyo Denki YASKAWA servo
4)RAIDs,CD ROM,File Server board
5)SCSI controller, Motion Controller
