Right Angle Mount SCSI CN 50 Female Connector

Starte Header right angle mount SCSI CN 50 female connector with latch bracket, the 90 degree scsi CN 50 female PCB connector pin arrangement in two rows, one on top of the other. The top row has 25 pins and the lower row has 25 pins. Often used on the Industrial equipment PCB, especially Scsi...

Send InquiryChat Now
Product Details

Starte Header right angle mount SCSI CN 50 female connector with latch bracket, the 90 degree scsi CN 50 female PCB connector pin arrangement in two rows, one on top of the other. The top row has 25 pins and the lower row has 25 pins. Often used on the Industrial equipment PCB, especially Scsi Servo, SCSI disk, SCSI breakout board and motion controller


Product Parameters of right angle MDR 50 female PCB connector:

Item

SCSI CN 50 pin female connector with clip

Brand

Starte

Product type

SCSI cable and connector

No. Of Contact

50 pin

Contact Type

1.27mm Header right angle  Mount type connector

Options

Latch Bracket

Threaded Finishes

M2.6

Contact Finishes

Gold Selective Plating

MOQ

1 PCS

Sample

Free

Package

Bags

Warranty

Two years

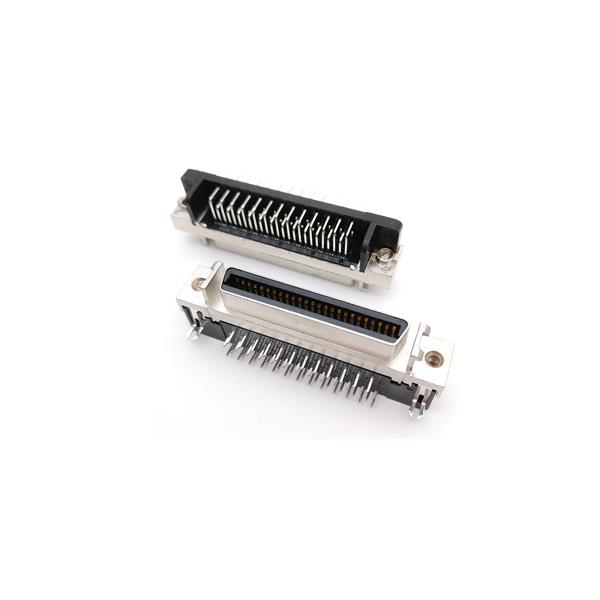

Header right angle mount SCSI CN 50 female connector with latch bracket.jpg



Technical Parameters of angled 50 pin female PCB SCSI Connector:

Connector Material

Housing

Plastic Thermoplastic P.B.T UL94V-0, Black

Contacts

Copper Alloy Gold Selective Plated

Front Shell

Steel, Nickel Plated Over Copper

Bracket

Steel, Nickel Plated Over Copper

Board Lock

Copper Tin Plated  Over Copper

Electrical Characterisitics

Contact Current Rating

0.5 Amp

Dielectric Withstanding Voltage

150V AC

Insulation Resistance

500MΩ/ Min

Contact Resistance

35mΩ /Max

Operation Temperature

-55°C~+85°C


Application of Right Angle Mount SCSI CN 50 Female Connector:

1)SCSI controller, Motion Controller
2)Servers machines and Drive enclosures equipments,
3)Mass storage machines,PCs and Macs and more peripherals
4)SCSI Breakout Board


FAQ:
Q:Which level of quality are your products?
A:We have got CE, FCC certificate so far.


Q:Does your cable has UL cetificate?

A:Yes, our wire supplier have acquired UL cetificate, you can check it on UL website.


Q: What is your trade term supported?
A: EXW, FOB, CIF, CFR, DDU are all available.


Q: How can you sure goods wouldnot be broken during shipment?
A:Each carton with suitable weight and use cushin boardcard to protect goods.


Q: Can I finish payment after we received goods?
A: For long terms business, it is allowed.
