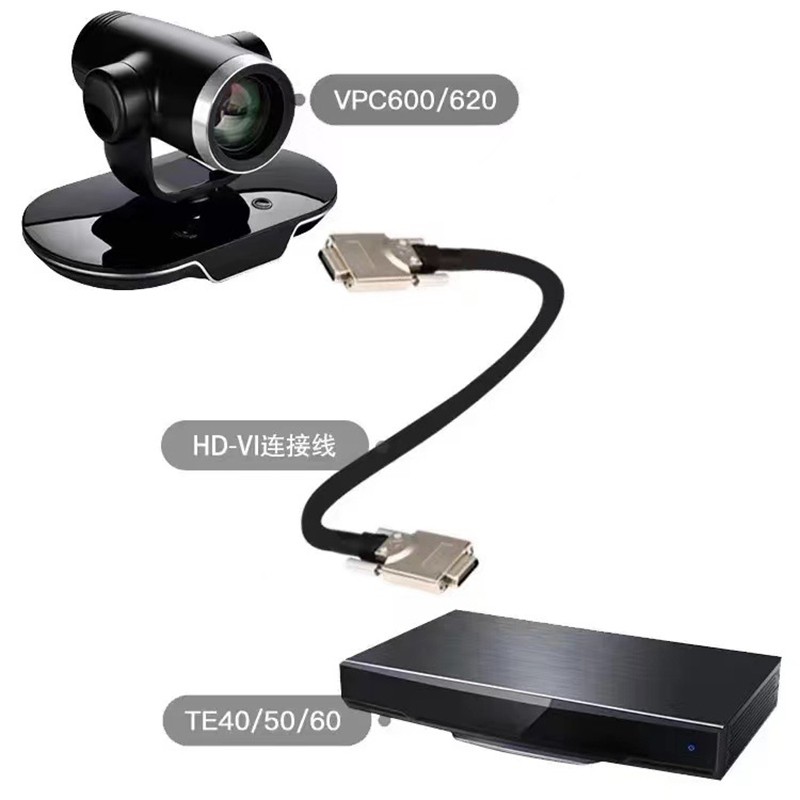

Starte makes 0.80mm pitch VHDCI 28 pin connector for video conference system, also named 0.80mm pitch HDVI 28 Pin connector. HD-VI interface features the integration of video input, power supply, serial port, and infrared control. It can connect to high-definition cameras or VPT300 smart cameras. For example, the HD-VI interfaces of terminal devices such as Huawei Box 500, Box 700, and Box 900 support a maximum resolution of 4K×2K at 30fps. Compatible with Huawei VPC600/VPC620 camera and TE40/50/60 series terminal.
There are two types VHDCI 28 pin connector, it is 0.80mm pitch solder type VHDCI 28 pin male connector with metal cover and right angle VHDCI 28 pin female PCB connector, here are related connector drawing and pictures, which you can confirm related VHDCI 28 connector size and pin assignment.

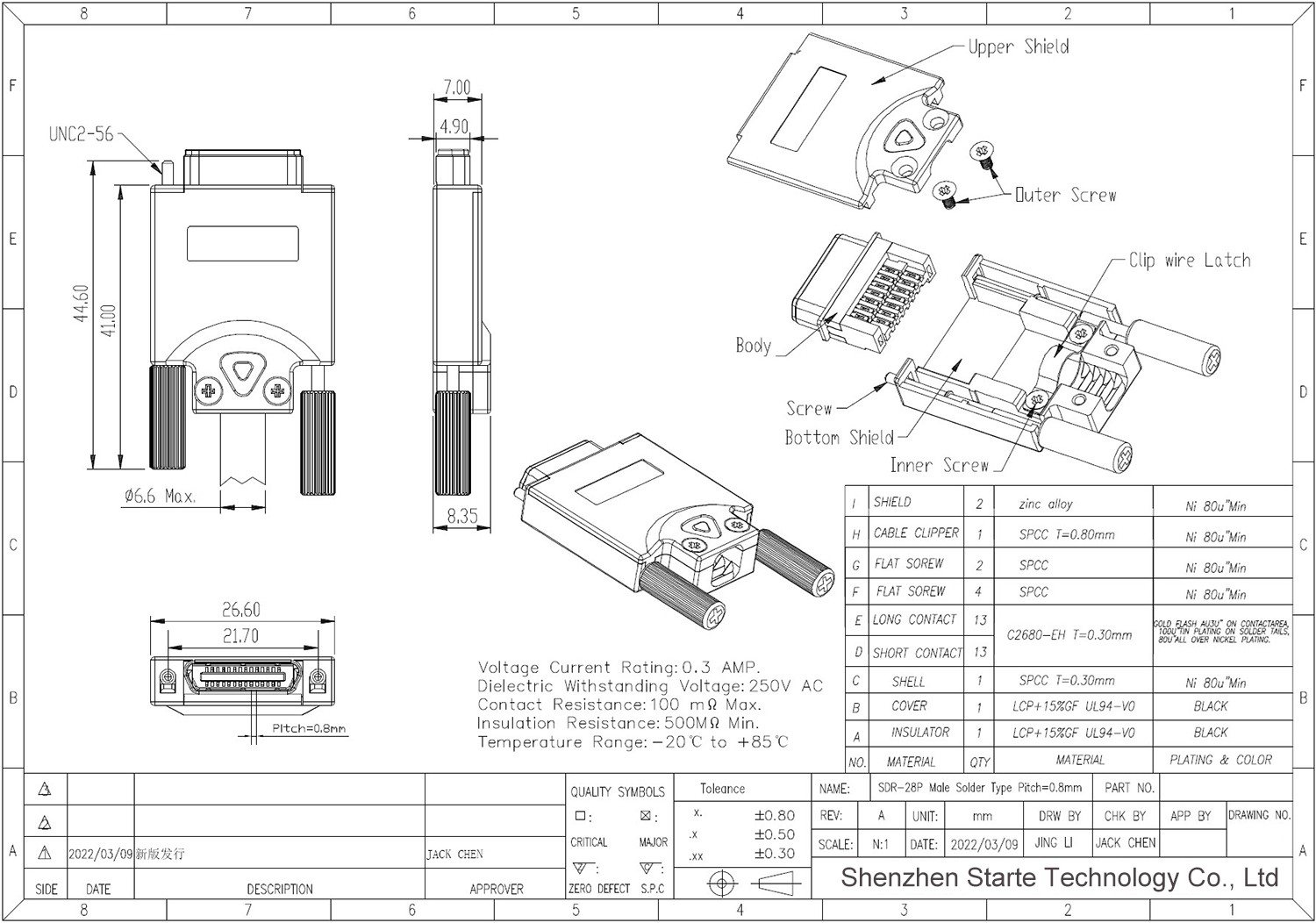

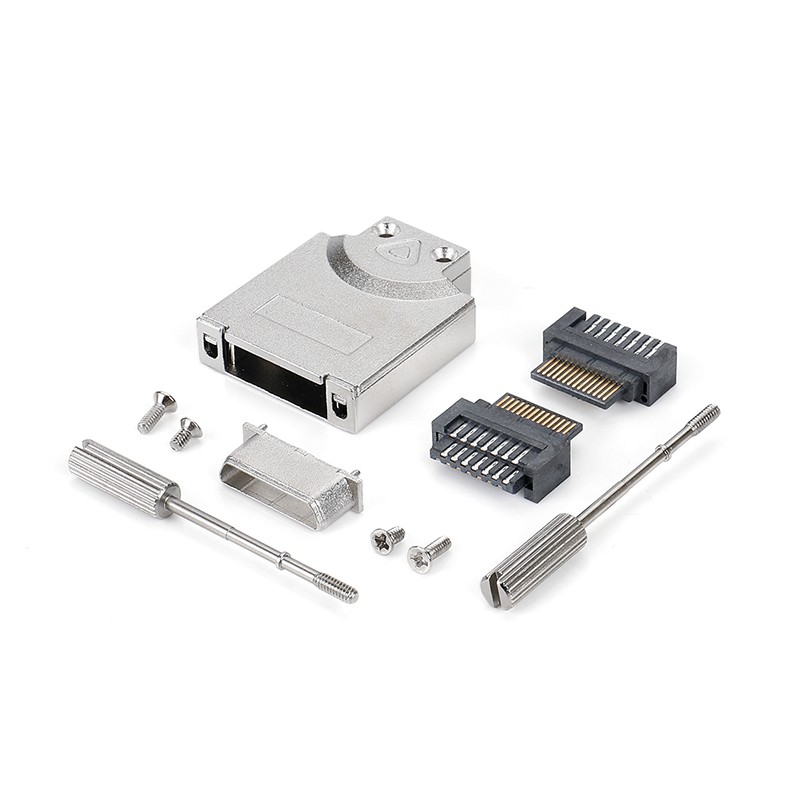

solder type 0.80mm pitch SDR VHDCI 28 pin male connector

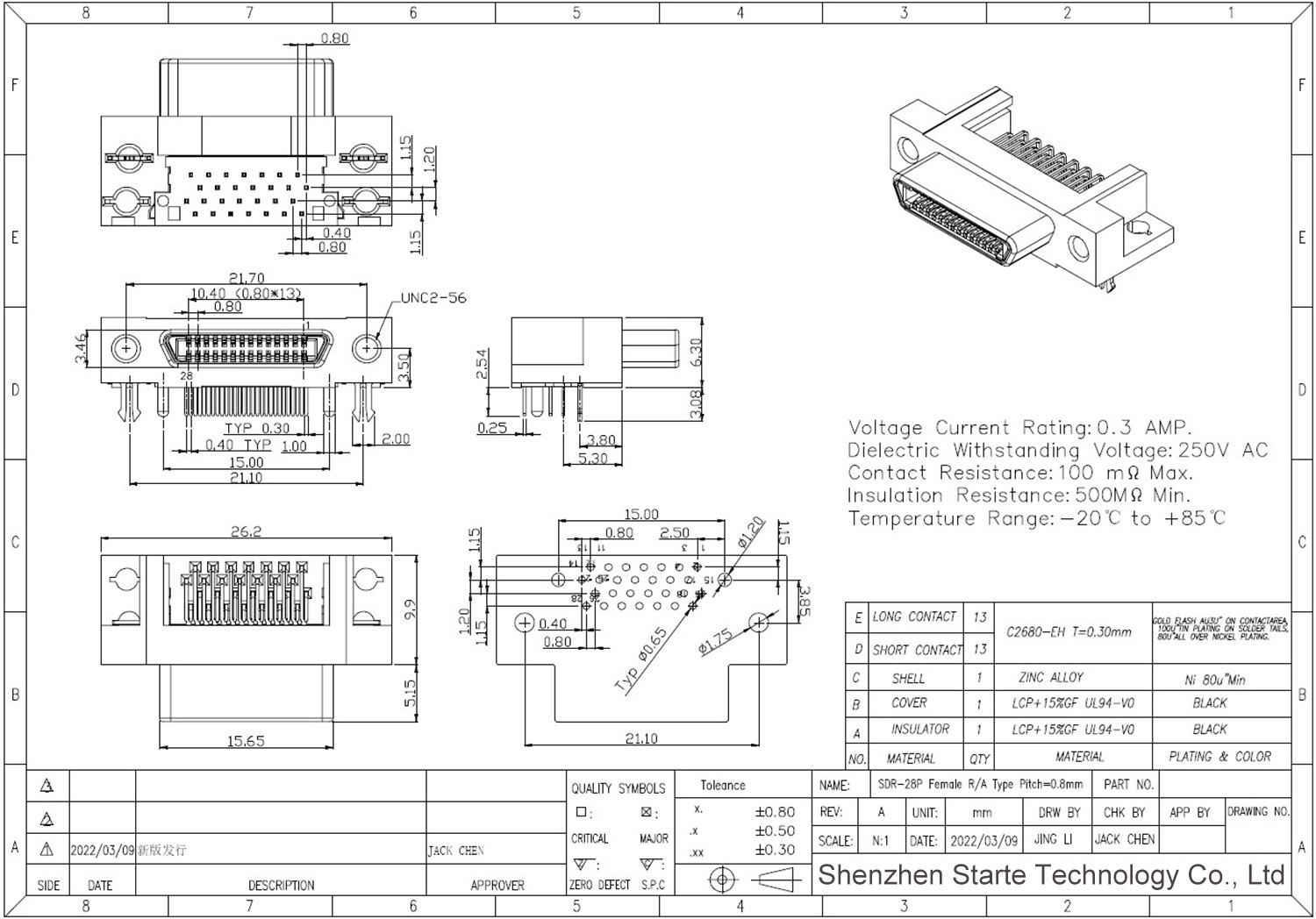

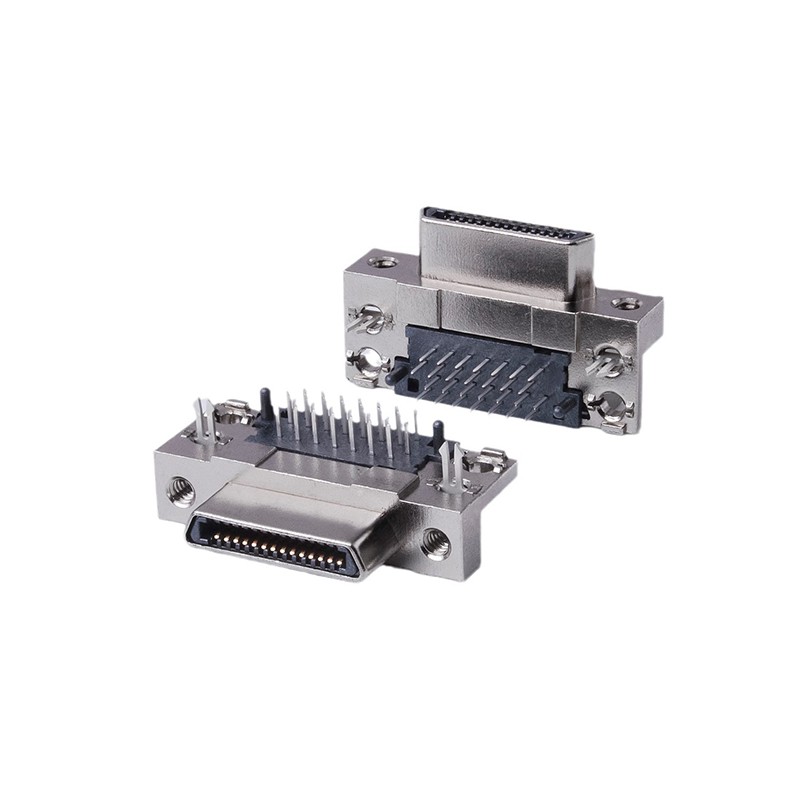

90 degree VHDCI 28 pin female connector

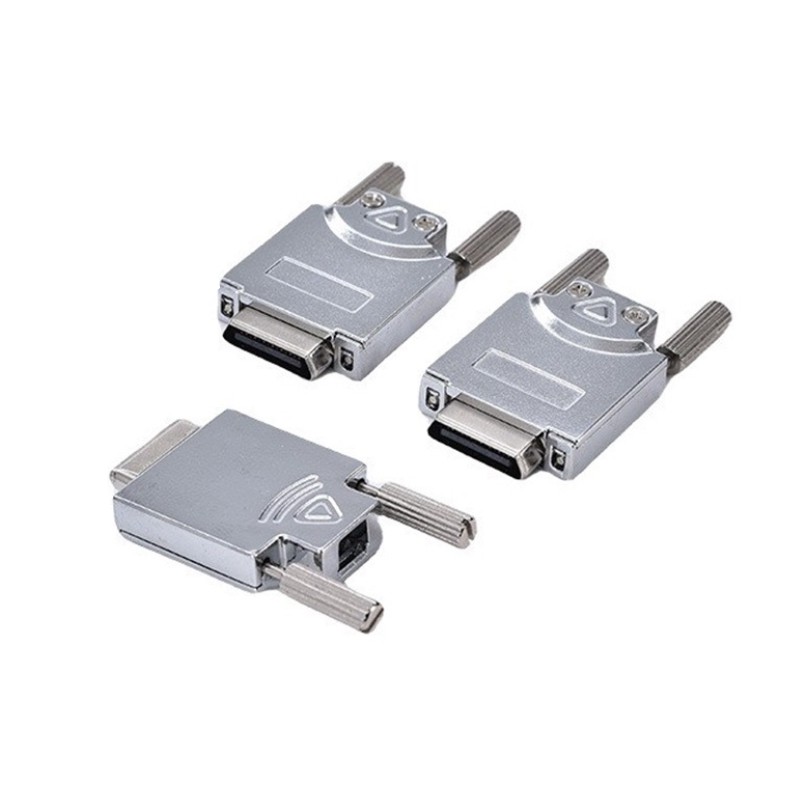

Solder type 28PIN HDVI male connector is commonly used to make related HDVI video conference system cable, which enables stable transmission and ultra-strong shielding performance, which can effectively prevent electromagnetic interference from affecting image quality and signal stability. It supports 1080P full HD resolution, delivering true-to-life and natural color reproduction, fast picture synchronization speed, and an almost negligible low latency. Even during long-term operation, it can maintain stability, and problems such as screen glitches and disconnections rarely occur.

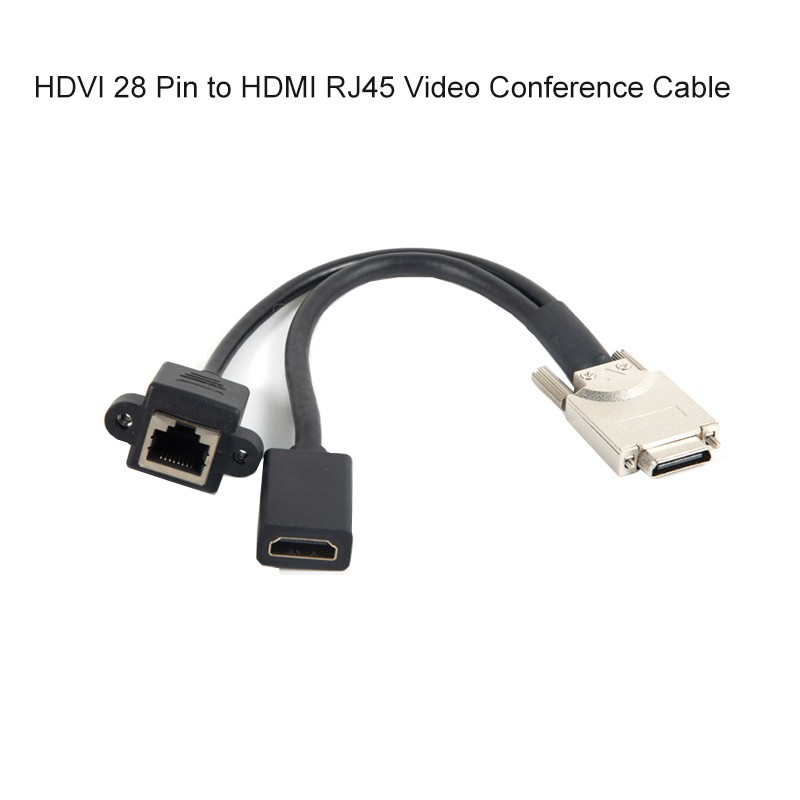

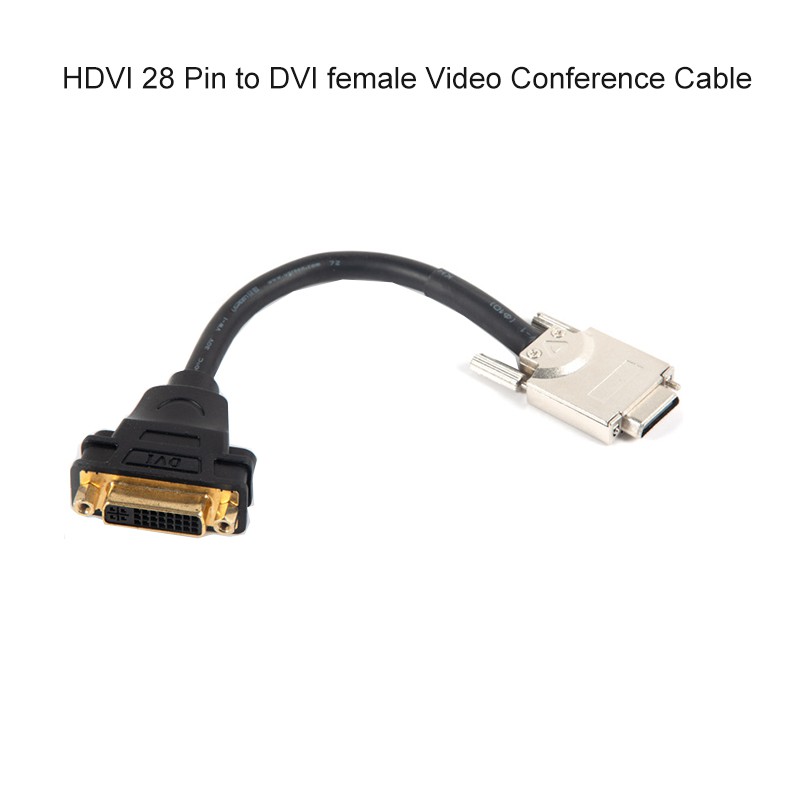

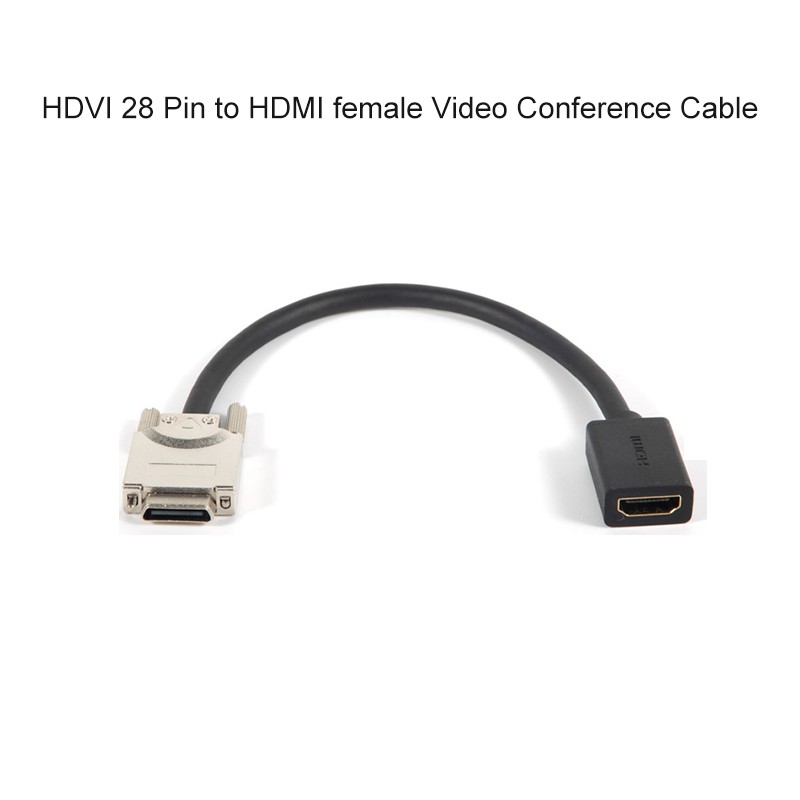

VHDCI 28 pin connector is also compatible with other Video interface, such as HDMI,DVI, VGA. You can find related VHDVI 28 connector adapter cable, such as HDVI 28 pin to HDMI Video conference adapter cable, HDVI 28 pin to DVI Video conference adapter cable.
