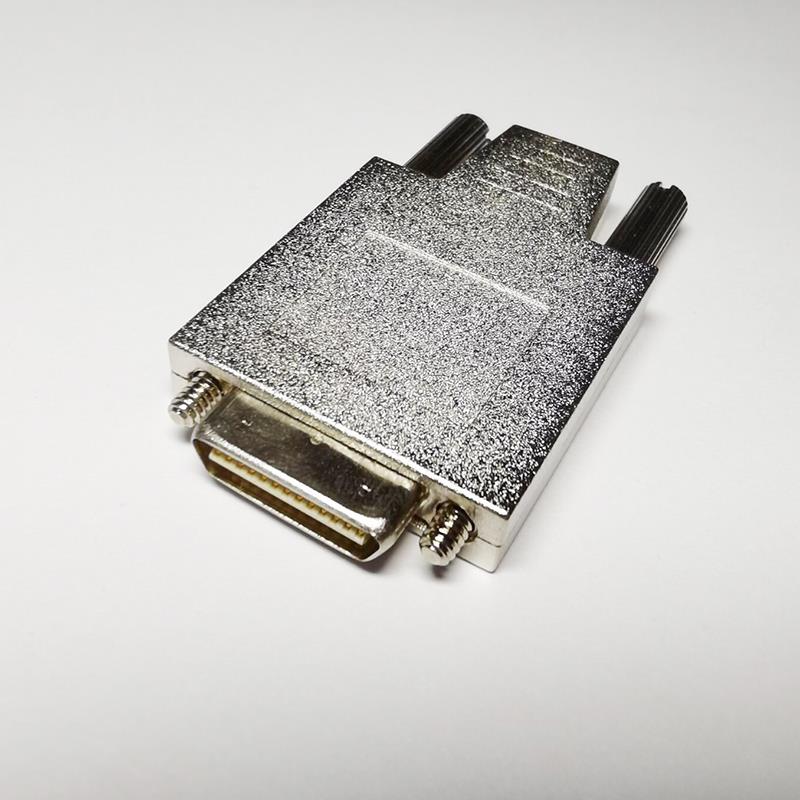

Stare make a new type VHDCI 26 pin connector, it is a 1.0mm pitch VHDCI 26 pin connector. We also know that common VHDCI SCSI Connector is 0.8mm pitch, such as VHDCI 68 pin connector, VHDCI 50 pin connector and VHDCI 36 pin SCSI connector. This 1.0mm 26 pin VHDCI SCSI connector is a solder type VHDCI 26 pin male connector with metal hood. It is a assemble type connector, pls see relate parameters for this VHDCI 26 pin male solder connector:
Connector Material | |
Housing | Plastic Thermoplastic P.B.T UL94V-0, Black |
Contacts | Copper Alloy Gold Selective Plated |
Front Shell | Steel, Nickel Plated Over Copper |
Straight exit with Bracket & Screws metal hood Material | |
Back shell | Zinc Alloy, Nickel Plated Over Copper |
Spring Latch | Stainless Steel |
Flat Screws | Steel, Nickel Plated Over Copper |
Cable Clipper | Steel, Nickel Plated Over Copper |
Electrical Characterisitics | |
Contact Current Rating | 1.0 Amp |
Dielectric Withstanding Voltage | 500V AC |
Insulation Resistance | 500MΩ/ Min |
Contact Resistance | 35mΩ /Max |
Operation Temperature | -55°C~+105°C |
We also have 0.8mm pitch VHDCI 26 pin solder connector. Before you order, pls make sure it is 0.8mm or 1.0mm pitch connector is suitable for you.
