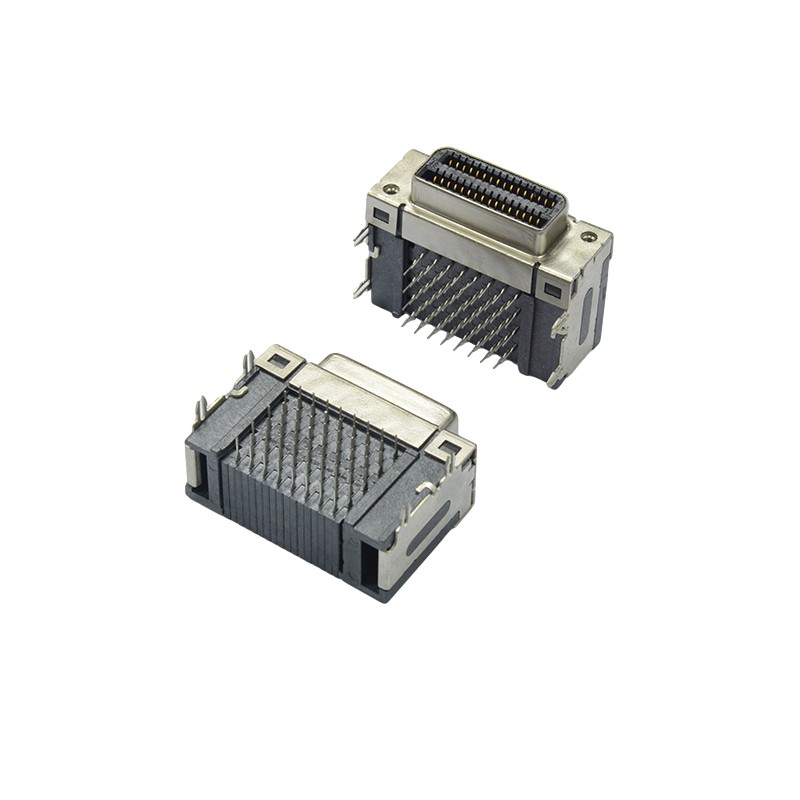

Starte make double edge Delander 64 pin female connector for Huawei SmartAX MA5600T 64-port ADSL Service Board, and used on most Huawei 64-port VoIP subscriber board. It is also named Double row double edge 64 pin Delander female connector.
|
Main body part material of Delander 64 pin female ADSL Service Board connector |
|
|
Insulator |
LCP Black UL94V-O |
|
Contact terminal |
Phosphor bronze, Ni 1.27 µ m Min. under plated,Au0.76 µ m |
|
Crust |
SPCC,Ni outside plated over all |
|
EMI Cover |
Stainless steel |
|
NUT |
Stainless steel |
|
Electrical requirements of Huawei delander 64 port female connector |
|
|
Voltage rating |
250V AC |
|
Current rating |
0.5A |
|
Contact resistance |
≤40mΩ |
|
Insulation resistance |
≥1000MΩ |
|
Withstanding voltage |
1000 Vr.m.s, 1mA, 60s |
|
Mechanical requirements of Huawei MA5600T delander 64-port ADSL Service Board Connector |
|
|
Insertion force |
≤60 N/64pin |
|
Extraction force |
≥10 N/64pin |
|
Mechanical life |
2000 cycles |
|
Style of installation |
Press-fit pcb Installation |

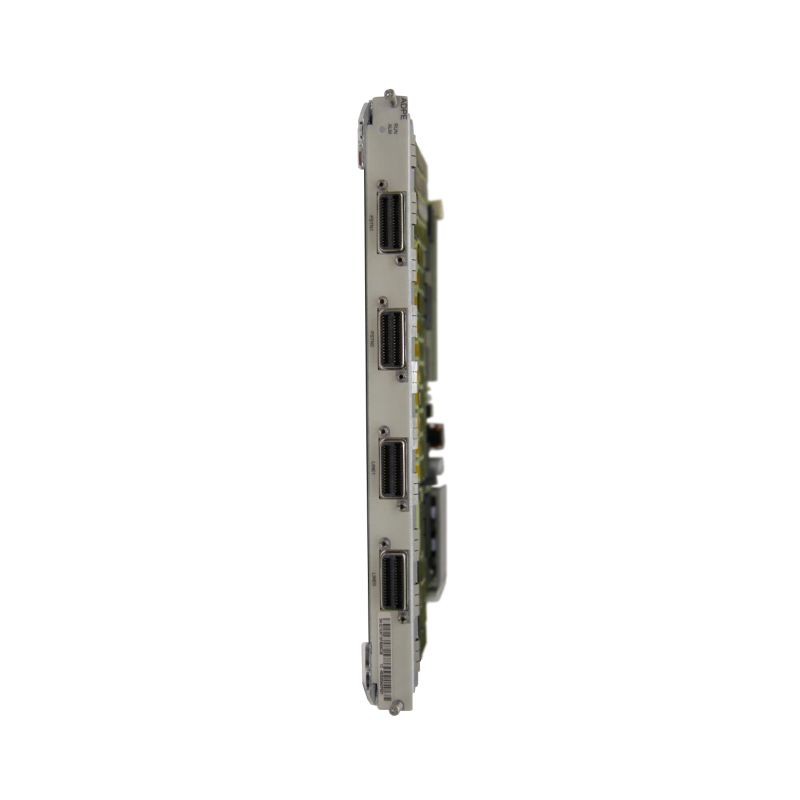

Huawei 64-port VoIP subscriber board with delander 64 pin female connector

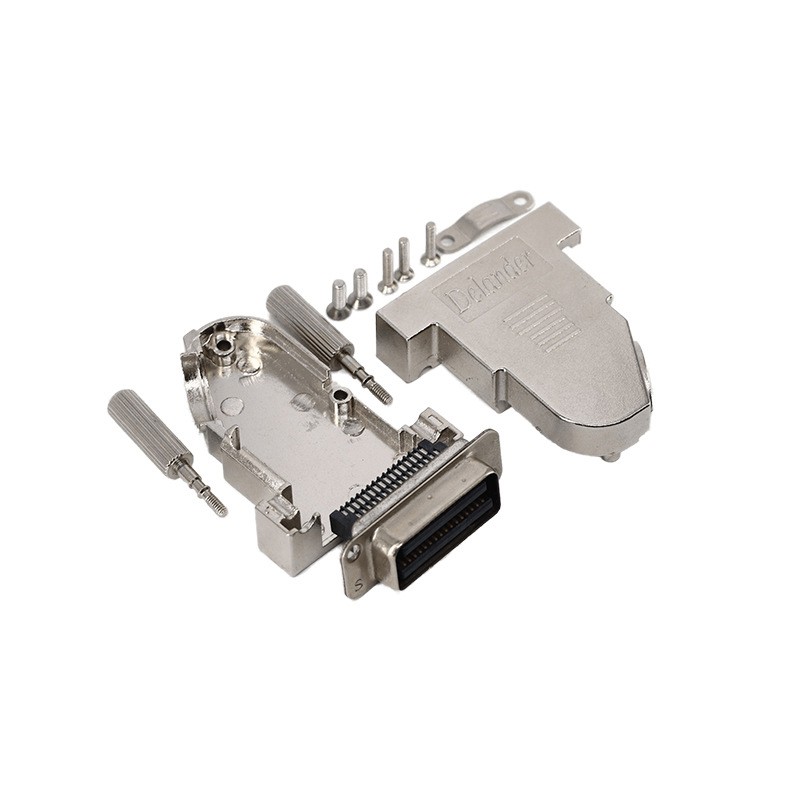

Starte also make related Delander 64 pin male connector for Huawei CADSL cable. It is 1.27mm pitch 75 degree exit solder type Delander 64 pin male connector, usually used to connect with 26AWG*32Pairs shielded wire to make Delander 64 Pin Shielded VDSL Subscriber Cable, then connect Huawei SmartAX MA5600T 48-port ADSL&POTS Combo Board.
This delander 64 pin male connector is Double row double edge type connector, support 28AWG-24AWG 64 core wire soldering, mainly used on 64-port Huawei ADSL&POTS Combo Board, such as Huawei MA5600, H809ASPB Voice Board for M5600T MA5603T MA5608T.

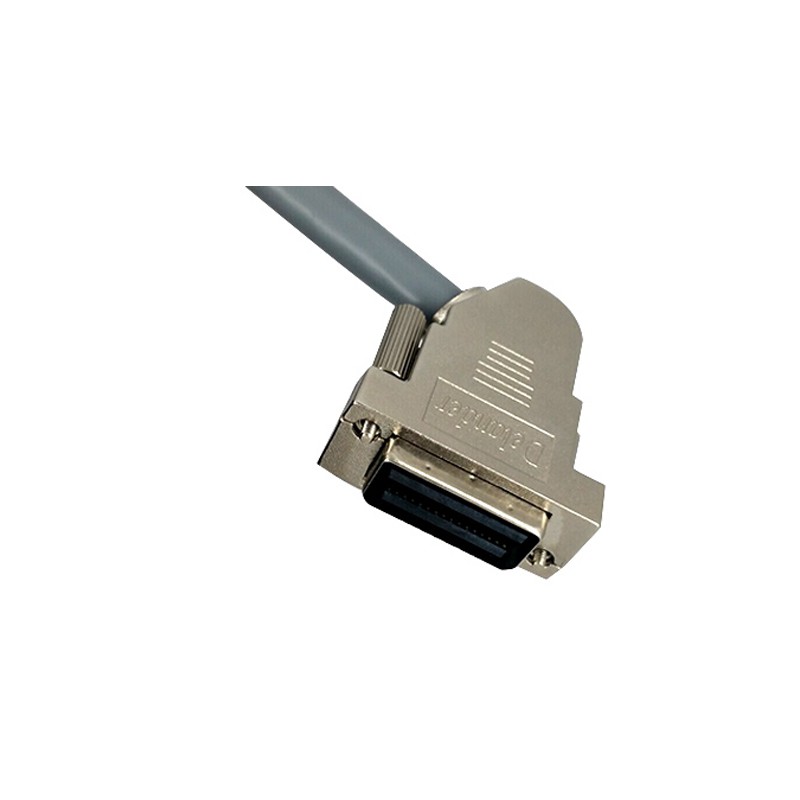

Starte also make Huawei 32 ports Delander 64 pins Cable, compatible with MA5616, MA5680T, MA5600 ADSL interface board, not suitable for other brand device.
