Right Angle SCSI MDR 100 Pin Female Connector

Starte right angle SCSI MDR 100 pin female connector for PCB, this 90 degree CN 100 pin female connector pin arrangement in two rows, one on top of the other. The top row has 50 pins and the lower row has 50 pins. Often used on the Industrial equipment PCB, such as 100-Pin DIN-Mount Screw...

Send InquiryChat Now
Product Details

Starte right angle SCSI MDR 100 pin female connector for PCB, this 90 degree CN 100 pin female connector pin arrangement in two rows, one on top of the other. The top row has 50 pins and the lower row has 50 pins. Often used on the Industrial equipment PCB, such as 100-Pin DIN-Mount Screw Terminal Panel and DN-100 - I/O Connector Block .


Product Parameters of right angle CN100 pin female SCSI connector with clip:

Item

90 degreeCN 100 pin SCSI female connector with clip

Brand

Starte

Product type

SCSI cable and connector

No. Of Contact

100 pin

Contact Type

1.27mm Headers right angle Mount type connector

Options

Latch bracket

Threaded Finishes

M2.6

Contact Finishes

Gold Selective Plating

MOQ

1 PCS

Sample

Free

Package

Bags

Warranty

Two years

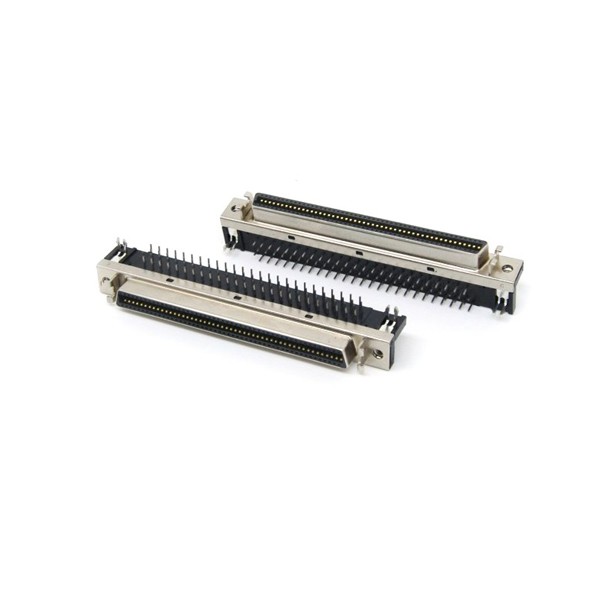

Headers right angle Mount SCSI MDR 100 pin female connector for PCB.jpg


Technical Parameters of 90 degree SCSI MDR100 pin female connector with clip:

Connector Material

Housing

Plastic Thermoplastic P.B.T UL94V-0, Black

Contacts

Copper Alloy Gold Selective Plated

Front Shell

Steel, Nickel Plated Over Copper

Bracket

Zinc Alloy, Nickel Plated Over Copper

Boardlock

Copper Alloy, Tin Plated Over Copper

Electrical Characterisitics

Contact Current Rating

0.5 Amp

Dielectric Withstanding Voltage

150V AC

Insulation Resistance

500MΩ/ Min

Contact Resistance

35mΩ /Max

Operation Temperature

-55°C~+85°C


Application of right angle 100 pin female PCB connector :
1) I/O Connector Block, Drive enclosures equipments,
2Mass storage machines,PCs and Macs and more peripherals
3)DIN-Mount Screw Terminal Panel, SCSI breakout Board


FAQ:
Q:Where is your factory located?
A: Located in Shenzhen City, GuangDong Province, China


Q: Are you trading company or manufacturer?
A: We are trading company with long term cooperation factories.


Q:Is your cable compatible of RoHs?
A:Yes, all material are compatible RoHs and SGS.


Q:.Which payment ways supported?
A: T/T, Paypal. Western Union, L/C, OA.


Q: Can I finish payment after we received goods?
A: For long terms business, it is allowed.
