Vertical 100 Pin Female SCSI II Connector

Starte vertical SCSI DB 100 female connector with latch bracket for PCB Clip Type, this vertical scsi db 100 female connector pin arrangement in two rows, one on top of the other. The top row has 50 pins and the lower row has 50 pins. Often used on the Industrial equipment PCB, such as SCSI...

Send InquiryChat Now
Product Details

Starte vertical SCSI DB 100 female connector with latch bracket for PCB Clip Type, this vertical scsi db 100 female connector pin arrangement in two rows, one on top of the other. The top row has 50 pins and the lower row has 50 pins. Often used on the Industrial equipment PCB, such as SCSI breakout Board, I/O connector Block.


Product Parameters of vertical DB 100 pin female SCSI connector with clip:

Item

180 degree DB 100 pin SCSI female connector with clip

Brand

Starte

Product type

SCSI cable and connector

No. Of Contact

100 pin

Contact Type

Female, receptacles connector for PCB Clip type

Options

screw bracket

Threaded Finishes

M2.6

Contact Finishes

Gold Selective Plating

MOQ

1 PCS

Sample

Free

Package

Bags

Warranty

Two years

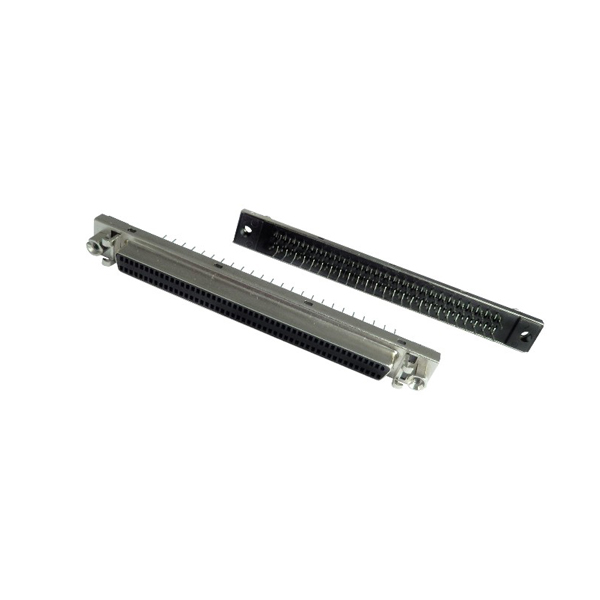

Receptacles SCSI DB 100 female connector with latch for PCB Clip Type.jpg


Technical Parameters of vertical DB100 pin SCSI ii connector with clip:

Connector Material

Housing

Plastic Thermoplastic P.B.T UL94V-0, Black

Contacts

Copper Alloy Gold Selective Plated

Front Shell

Steel, Nickel Plated Over Copper

Bracket

Steel, Nickel Plated Over Copper

Board Lock

Copper Tin Plated  Over Copper

Electrical Characterisitics

Contact Current Rating

0.5 Amp

Dielectric Withstanding Voltage

150V AC

Insulation Resistance

500MΩ/ Min

Contact Resistance

35mΩ /Max

Operation Temperature

-55°C~+85°C


Application of SCSI DB100 pin female PCB connector:
1)motion controller, Serial PCIx card
2)Servers machines and Drive enclosures equipments,
3)Networking Equipments board, SCSI breakout Board
4)Small computer and intelligent peripherals,printers,hard disks,CD ROM drivers


FAQ:
Q: Do you provide samples?
A: Yes, sample provided when details are confirmed.


Q: If sample is NOT free, can I get sample fee back when i place order?
A: Sample fee can be returned if your order reach our MOQ.


Q: If i will need to stay in your place for few days, is that possible to book the hotel for me?
A:It’s always my pleasure, hotel booking service is available.


Q:Which level of quality are your products?
A:We have got CE, FCC certificate so far.


Q: Which country is your largest market?
A: France is largest.
