Shenzhen Starte Technology Co., Ltd is one of the most reliable manufacturers and suppliers of mdr 20 pin cable connector with latch clip in China. Please feel free to wholesale bulk high quality products made in China here from our factory. Customized orders are welcome.

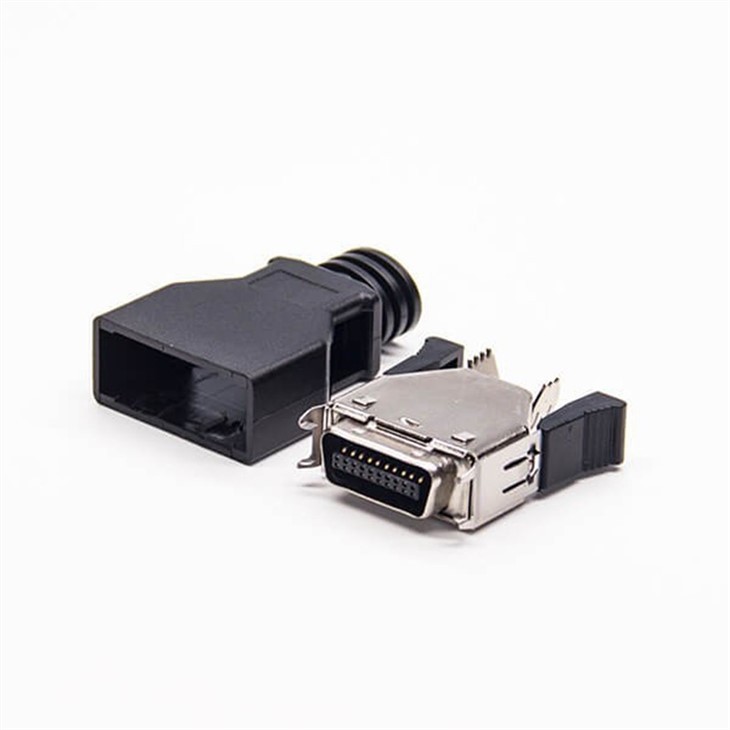

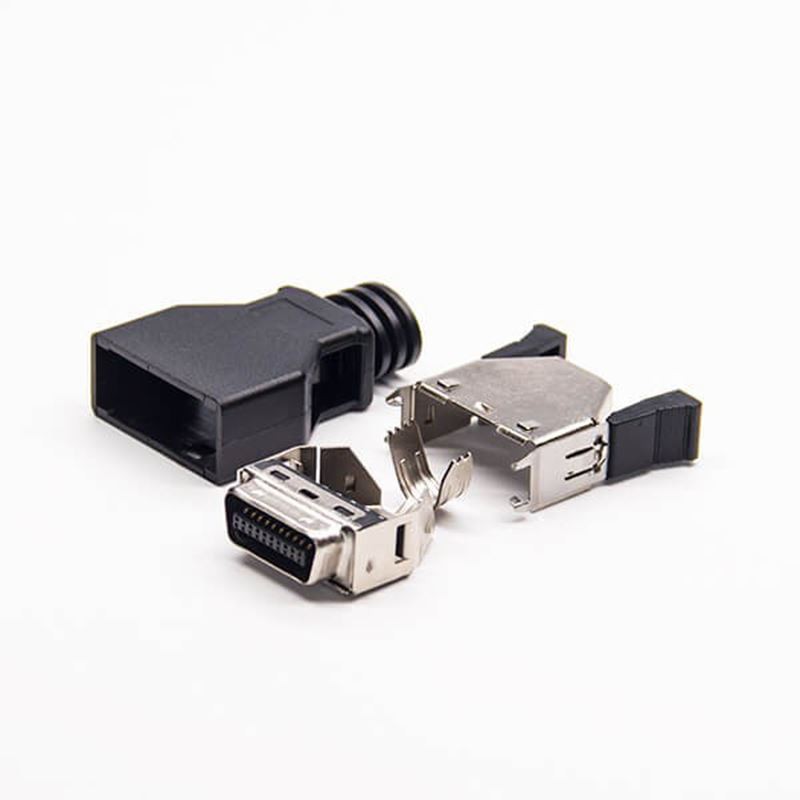

Starte MDR 20 pin Cable Connector with Latch Clip and plastic shell, this solder type CN20 pin Plug SCSI connector with plastic hood is locked by by latch clip(not by screw). Which is made with standard SCSI 20 pin shielded wire (Starte UL2990 28AWG*10 Pairs+Al-foil+Braid+Drain wire), then link SCSI Servo device, such as for Mitsubishi J2 series motor. And compatible with small computers and intelligent peripherals such as printers, hard disks and CD ROM drives, which euqipped with MDR20 pin female connector.

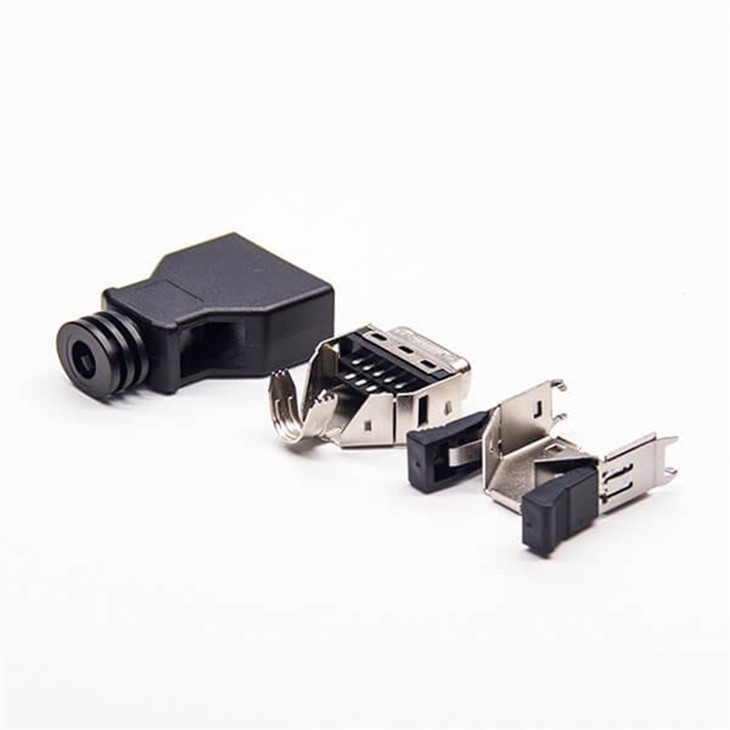

Product Parameters of Solder Type CN20 pos SCSI Connector:
| Item | MDR 20 pin Cable Connector with Latch Clip |
Brand | Starte |
Product type | 20 Pin SCSI Connector |
No. Of Contact | 20 pin |
Model No. | SCCB009 |
Contact Type | Solder Type 1.27mm cable receptacles Connector |
Hood Clore | Black, Beige is supported |
Options | Male, latch, Assembly |
Wire | 28AWG or 30AWG support |
Contact Finishes | 5u Gold Selective Plating |
MOQ | 1 PCS |
Sample | Free |
Package | Bags |
Warranty | Two years |

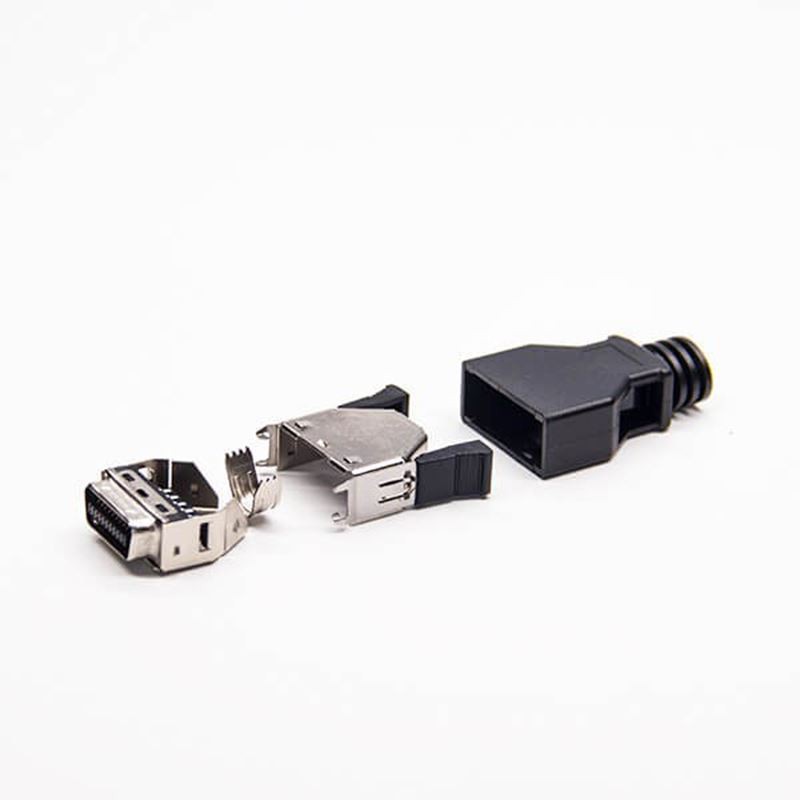

Technical Parameters of Push button MDR20 Pin Plug SCSI Connector:
| Connector Material | |
Housing | Plastic Thermoplastic P.B.T UL94V-0, Black |
Contacts | Copper Alloy Gold Selective Plated |
Front Shell | Steel, Nickel Plated Over Copper |
Plastic Cover Material | |
Hood | Plastic Thermoplastic P.B.T UL94V-0 |
Inner Shell | Steel, Nickel Plated Over Copper |
Latch & Hood: | Stainless Steel & Plastic ABS UL94V-0 |
Entry Hood | Plastic ABS UL94V-0 |
Electrical Characterisitics | |
Contact Current Rating | 1.0 Amp |
Dielectric Withstanding Voltage | 500V AC |
Insulation Resistance | 500MΩ/ Min |
Contact Resistance | 35mΩ /Max |
Operation Temperature | -55°C~+105°C |
Application of HPCN 20 pin SCSI Servo Connector:
This MDR 20 pin Cable Connector with Latch Clip is made with standard SCSI 20 pin shielded wire (Starte UL2990 28AWG*10 Pairs+Al-foil+Braid+Drain wire), then link SCSI Servo device, such as for Mitsubishi J2 series motor.
