Starte IDC HPDB DB36 Pin SCSI Cable Connector, the Micro D-sub 36 pin IDC SCSI Connector pin is arranged in two rows, each row has 18 pin contacts. This MD36 pin plug connector is usually used with standard SCSI 36 ways shielded wire (UL2990 28AWG*18 Pairs+Al-foil+Drain Wire+Braid), then SCSI 36 pin cable is used to connect servo driver and PCI-X which equipped with HD36 pin female connector.
Product Parameters of SCSI HPDB 36 pin male Connector:
| Item | IDC HPDB DB36 Pin SCSI Cable Connector |
Brand | Starte |
Product type | 36 Pin SCSI Connector |
No. Of Contact | 36 pin |
Contact Type | IDC type 1.27mm cable receptacles Connector |
Options | Male, for Molding or Assembly |
Wire | UL2990 28AWG*18 Pairs+Al-foil+Drain Wire+Braid |
Contact Finishes | Gold Selective Plating |
MOQ | 1 PCS |
Sample | Free |
Package | Bags |
Warranty | Two years |

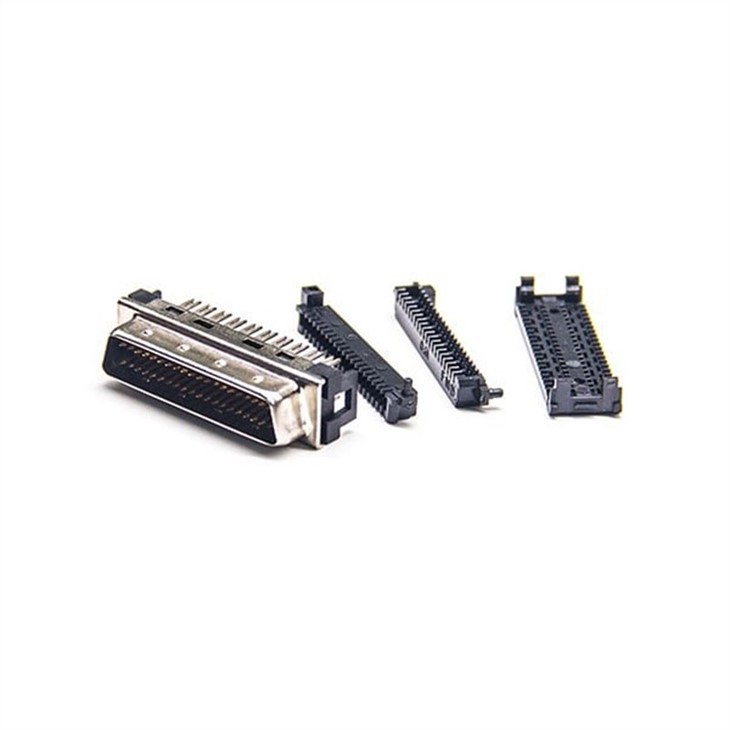

Technical Parameters of IDC type HD36 pin SCSI Plug Connector:
| Connector Material | |
Housing | Plastic Thermoplastic P.B.T UL94V-0, Black |
Contacts | Copper Alloy Gold Selective Plated |
Front Shell | Steel, Nickel Plated Over Copper |
Cover&Holder | Plastic Thermoplastic P.B.T UL94V-0, Black |
Inner Shell | Steel, Nickel Plated Over Copper |
Electrical Characterisitics | |
Contact Current Rating | 1.0 Amp |
Dielectric Withstanding Voltage | 500V AC |
Insulation Resistance | 500MΩ/ Min |
Contact Resistance | 35mΩ /Max |
Operation Temperature | -55°C~+105°C |

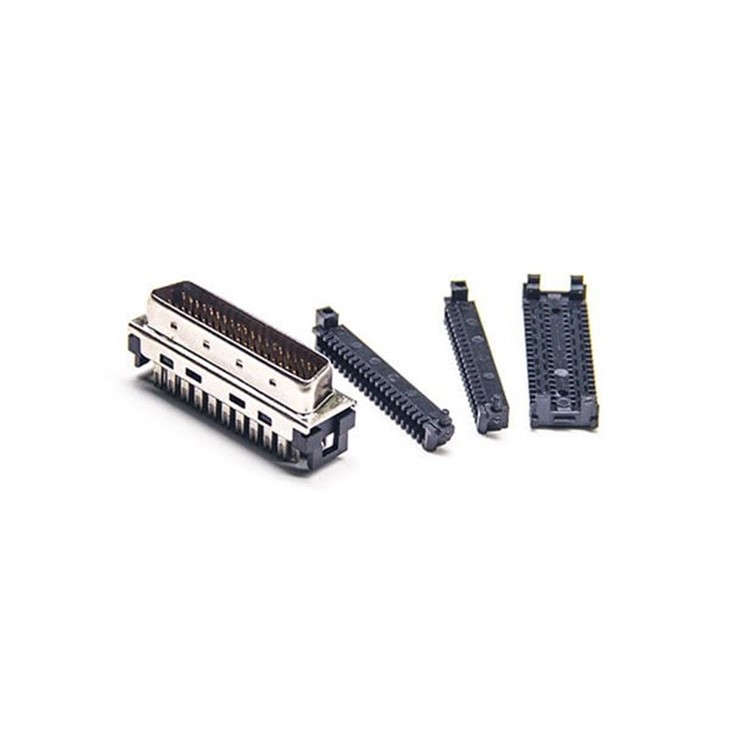

Application of SCSI 36 Position crimp plug Connector:
This IDC HPDB DB36 Pin SCSI Cable Connector is usually used with standard SCSI 36 ways shielded wire (UL2990 28AWG*18 Pairs+Al-foil+Drain Wire+Braid), then SCSI 36 pin cable is used to connect servo driver and PCI-X which equipped with HD36 pin female connector.
