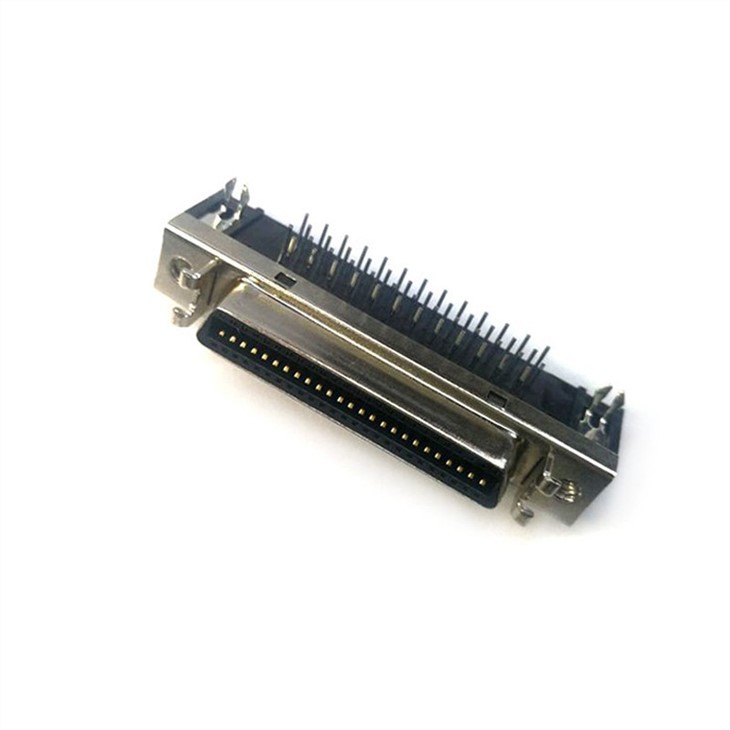

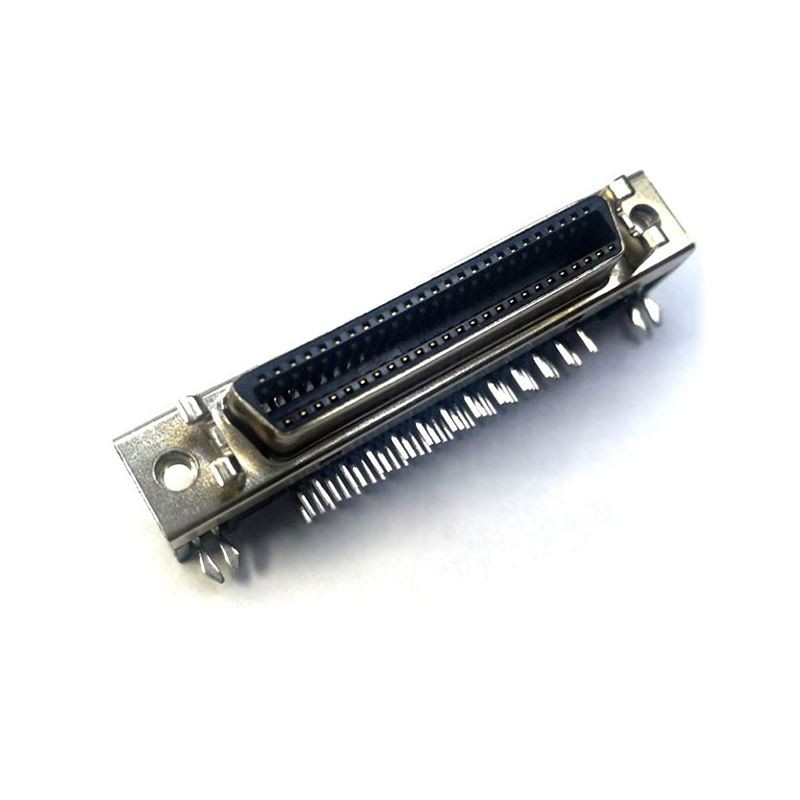

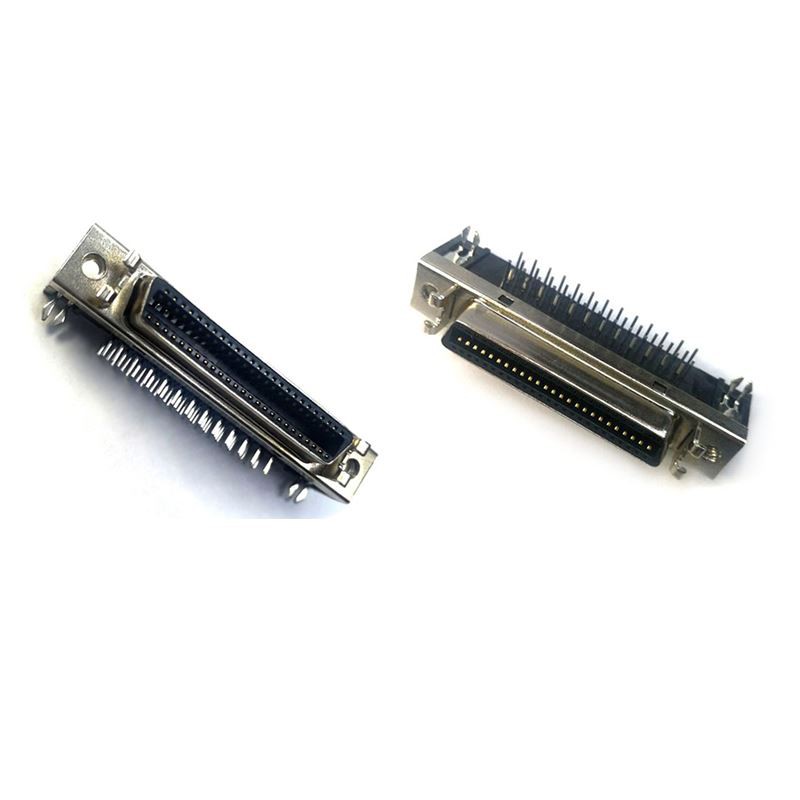

Starte Right Angle 90 Degree DIP MDR50 pin Female Connector with Latch Bracket on PCB.The Slot type angle HPCN 50 pin female servo driver Connector is commonly used on Servo Driver, Motion Controller, Mini Delta Ribbon (MDR) 50-Pin Dual Breakout Board and related Hard Disk.
Product Parameters of Right Angle MDR 50 pin SCSI CN female Connector:
| Item | Right Angle 90 Degree DIP MDR50 pin Female Connector |
Brand | Starte |
Model No. | SCCE033 |
Product type | SCSI Cable and Connector |
No. Of Contact | 50 pin |
Contact Type | Female, receptacles header right-angle mount type |
Options | Latch Bracket |
Threaded Finishes | M2.0 |
Contact Finishes | Gold Selective Plating |
Pin Layout | Standard |
MOQ | 1 PCS |
Sample | Free |
Package | Bags |
Warranty | Two years |
Technical Parameters of 90 degree MDR socket 50 Female solder PCB Connector:
| Connector Material | |
Housing | Plastic Thermoplastic Nylon PA9T UL94V-0, Black |
Contacts | Copper Alloy Gold Selective Plated |
Front Shell | Steel, Nickel Plated Over Copper |
Cover | Plastic Thermoplastic Nylon PA9T UL94V-0, Black |
Board Lock | Copper Tin Plated Over Copper |
Electrical Characterisitics | |
Contact Current Rating | 0.5 Amp |
Dielectric Withstanding Voltage | 150V AC |
Insulation Resistance | 500MΩ / Min |
Contact Resistance | 35mΩ /Max |
Operation Temperature | -55°C~+85°C |
Application of 90 degree HPCN 50 pin Female PCB Connector:
This Right Angle 90 Degree DIP MDR50 pin Female Connector is commonly used on Servo Driver, Motion Controller, Mini Delta Ribbon (MDR) 50-Pin Dual Breakout Board and related Hard Disk.
