Shenzhen Starte Technology Co., Ltd is one of the most reliable manufacturers and suppliers of vertical mdr 50 pin female pcb scsi connector with latch clip in China. Please feel free to wholesale bulk high quality products made in China here from our factory. Customized orders are welcome.

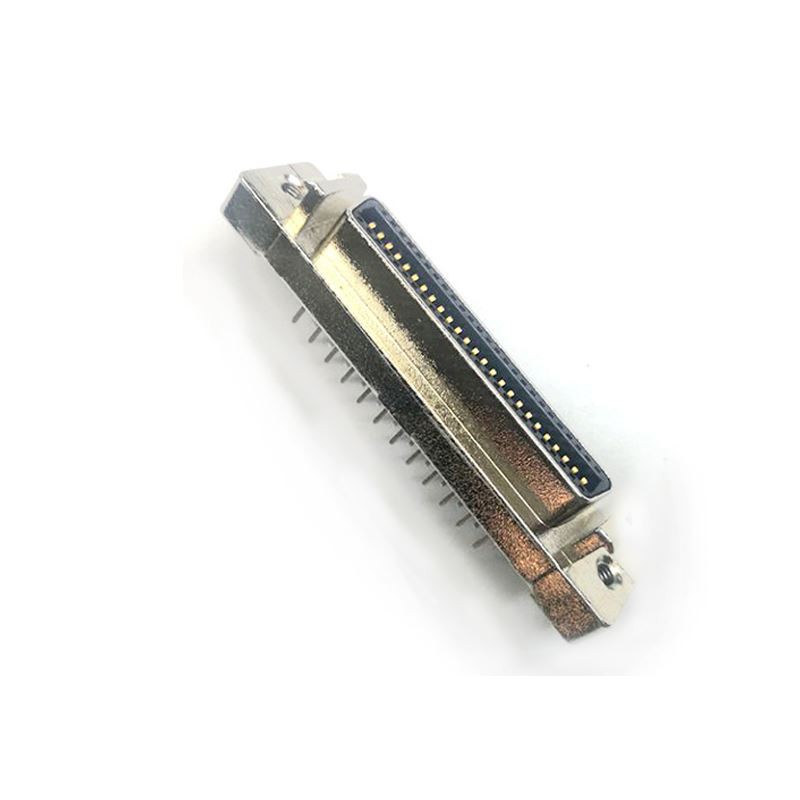

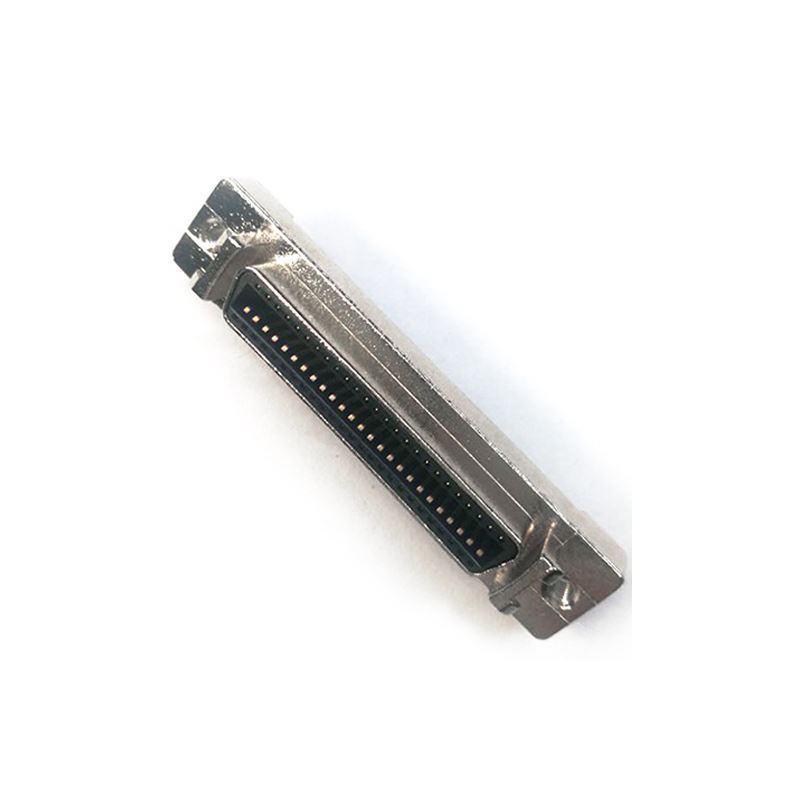

Starte Vertical MDR 50 Pin Female PCB SCSI Connector with latch clip, Receptacles Headers Vertical Mount type, this 1.27 pitch MDR 50 pin female vertical mount Connector has copper alloy contact with 5-micro-inch minimum gold wiping area, nickel under-plate plating and glass reinforced polyester insulation, and often used on Mass storage machines,Servers machines and Drive enclosures equipments.
Product Parameters of Receptacles headers CN50 pin female PCB Connector:
| Item | Vertical MDR 50 Pin Female PCB SCSI Connector |
Brand | Starte |
Model No. | SCCE032 |
Product type | 50 Pin SCSI Connector |
No. Of Contact | 50 pin |
Contact Type | 1.27mm Receptacles Headers Vertical Mount type connector |
Options | Latch Bracket |
Threaded Finishes | M2.6 |
Contact Finishes | Gold Selective Plating |
MOQ | 1 PCS |
Sample | Free |
Package | Bags |
Warranty | Two years |
Technical Parameters of Vertical Mount MDR socket 50 Female SCSI Connector:
| Connector Material | |
Housing | Plastic Thermoplastic P.B.T UL94V-0, Black |
Contacts | Copper Alloy Gold Selective Plated |
Bracket | Zinc Alloy, Nickel Plated Over Copper |
Electrical Characterisitics | |
Contact Current Rating | 0.5 Amp |
Dielectric Withstanding Voltage | 150V AC |
Insulation Resistance | 500MΩ/ Min |
Contact Resistance | 35mΩ /Max |
Operation Temperature | -55°C~+85°C |
Application of 0.05 inch Mini D Ribbon HPCN 50 pin female Connector :
This Vertical MDR 50 Pin Female PCB SCSI Connector is often used on mass storage machines, servers machines and Drive enclosures equipments.
