Right Angle DB 50 Pin Female SCSI Connector

Starte right angle DB 50 pin female SCSI connector with latch bracket, Header right angle mount , the angled scsi-2 db 50 female connector pin arrangement in two rows, one on top of the other. The top row has 25 pins and the lower row has 25 pins. Often used on the Industrial equipment PCB, such...

Send InquiryChat Now
Product Details

Starte right angle DB 50 pin female SCSI connector with latch bracket, Header right angle mount , the angled scsi-2 db 50 female connector pin arrangement in two rows, one on top of the other. The top row has 25 pins and the lower row has 25 pins. Often used on the Industrial equipment PCB, such as SCSI disk, SCSI hard drive, SCSI Breakout Board, SCSI Scanner and SCSI motion controller.


Product Parameters of 90 degree HD 50  female SCSI connector with clip:

Item

90 degree HD 50 pin female connector

Brand

Starte

Product type

SCSI cable and connector

No. Of Contact

50 pin

Contact Type

Female, header right-angle mount type

Options

female, latch bracket

PCB Layout

Standard

Threaded Finishes

#2-56

Contact Finishes

Gold Selective Plating

MOQ

1 PCS

Sample

Free

Package

Bags

Warranty

Two years

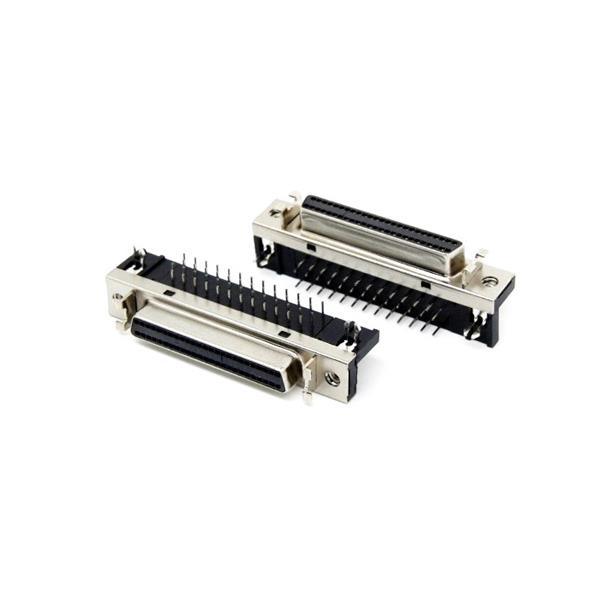

Header right angle mount SCSI DB 50 female connector with latch bracket.jpg

Technical Parameters of angled HD 50 pin female connector:

Connector Material

Housing

Plastic Thermoplastic P.B.T UL94V-0, Black

Contacts

Copper Alloy Gold Selective Plated

Front Shell

Steel, Nickel Plated Over Copper

Bracket

Steel, Nickel Plated Over Copper

Board Lock

Copper Tin Plated  Over Copper

Electrical Characterisitics

Contact Current Rating

0.5 Amp

Dielectric Withstanding Voltage

150V AC

Insulation Resistance

500MΩ/ Min

Contact Resistance

35mΩ /Max

Operation Temperature

-55°C~+85°C


Application of 90 degree SCSI 2 female connector:

1)Servers machines and Drive enclosures equipments,
2)Mass storage machines,PCs and Macs and more peripherals
3)RAIDs,CD ROM,File Server board
4)Small computer and intelligent peripherals,printers,hard disks,CD ROM drivers


FAQ:
Q: How can you sure goods wouldnot be broken during shipment?
A:Each carton with suitable weight and use cushin boardcard to protect goods.


Q: Can I finish payment after we received goods?
A: For long terms business, it is allowed.


Q:Can we be your sole agent in our country?
A:Yes, it can be discussed after cooperation.


Q: Could you provide drawing for Confirming?
A: Yes, drawing provide for confirming with each other, signature on drawing would be better.


Q: How about package?
A: Normal is neutral PE bags for each items. Blister box and Colore Box are supported.
