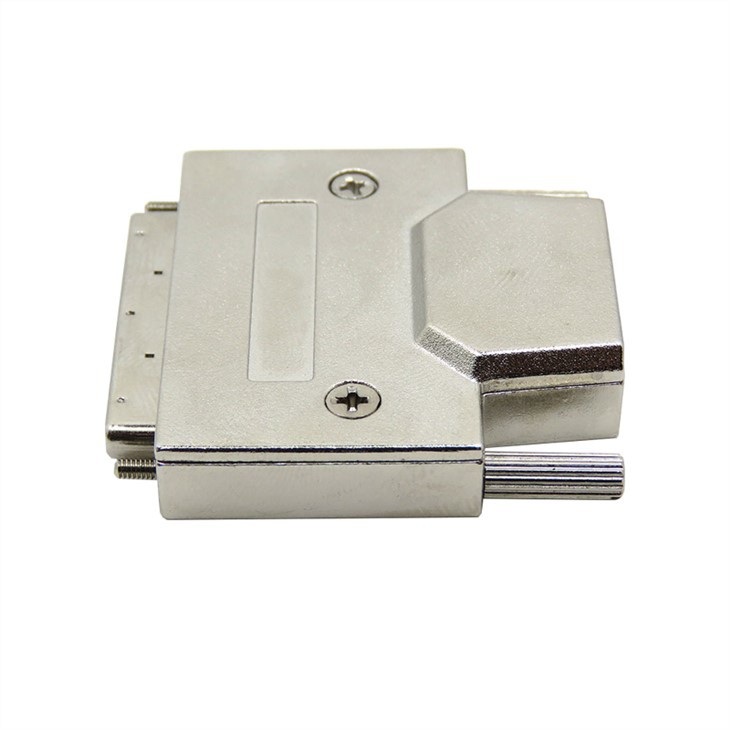

68 Pin Male VHDCI Connector

Description : Starte 0.8mm VHDCI 68 pin male connector with screw and metal cover, this 68 pin vhdci connector pin arrangement in two rows, one on top of the other. The top row has 34 pins and the lower row has 34 pins. It is usually used on the cable for connecting servo driver or vhdci...

Send InquiryChat Now
Product Details

Description :
Starte 0.8mm VHDCI 68 pin male connector with screw and metal cover, this 68 pin vhdci connector pin arrangement in two rows, one on top of the other. The top row has 34 pins and the lower row has 34 pins. It is usually used on the cable for connecting servo driver or vhdci adapter.


Product Parameters of solder typeVHDCI 68 pin connector:

Item

solder type 68-pin vhdci lvd scsi connector

Brand

Starte

Product type

SCSI cable and connector

No. Of Contact

68 pin

Contact Type

0.80mm cable receptacles Connector solder type

Options

Male, screw, Assembly

Wire

28AWG or 30AWG support

Contact Finishes

Gold Selective Plating

MOQ

1 PCS

Sample

Free

Package

Bags

Warranty

Two years

0.8mm VHDCI 68 male solder connector with screw.jpg


Technical Parameters of VHDCI 68pin scsi-5 connector:

Connector Material

Housing

Plastic Thermoplastic P.B.T UL94V-0, Black

Contacts

Copper Alloy Gold Selective Plated

Front Shell

Steel, Nickel Plated Over Copper

Metal Cover Material

Back shell

Zinc Alloy, Nickel Plated Over Copper

Jack screws

Steel, Nickel Plated Over Copper

Flat Screws

Steel, Nickel Plated Over Copper

Cable clipper

Steel, Nickel Plated Over Copper

Electrical Characterisitics

Contact Current Rating

1.0 Amp

Dielectric Withstanding Voltage

500V AC

Insulation Resistance

500MΩ / Min

Contact Resistance

35mΩ  /Max

Operation Temperature

-55°C~+105°C


Application of 68 pin VHDCI male connector :
1)Servers machines and Drive enclosures equipments,
2)Mass storage machines,PCs and Macs and more peripherals
3)Networking Equipments


FAQ:
Q: Can I finish payment after we received goods?
A: For long terms business, it is allowed.


Q: What is the minimum order quantity (MOQ) ?
A: Common items should be 500PCS, Special ones should be 100PCS.


Q:Package support OEM?
A:Yes, it’s allowed.


Q:Is it possible to finish production around 7-10 days?
A:Yes, if urgent, we can apply for it.


Q: Any discount for long term business relation?
A: Yes, we will support you to expand your business scope not just discount.
